Summary of Contents for KODERA CAS OP-7

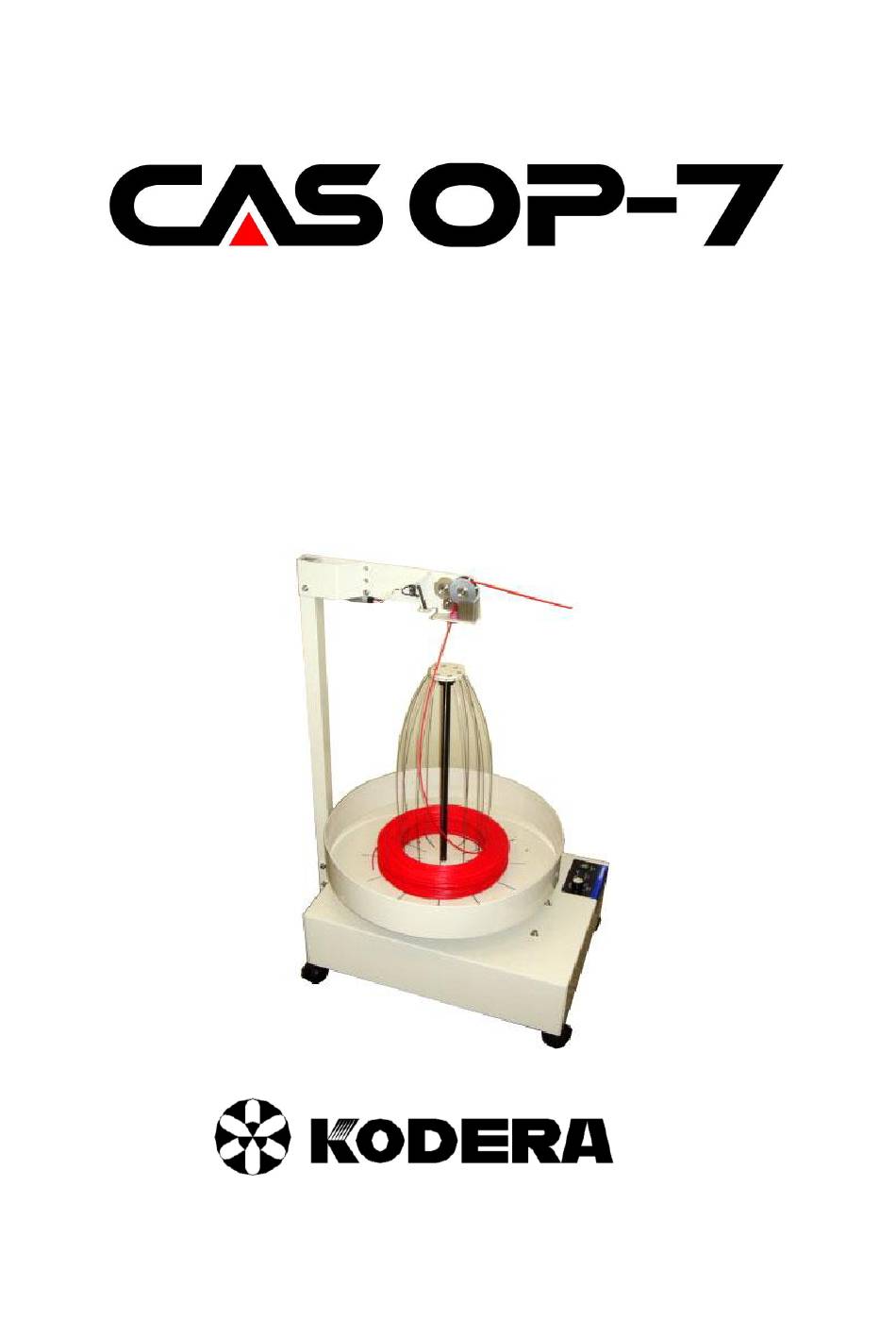

- Page 1 Instruction Manual Ver.4...
-
Page 2: Safety
Safety Please read over carefully the instructions contained herein before installation, and use this control unit properly in the optimum method. Please store this instruction manual in a safe place. ● In this section, safety notes are shown under two categories; "Warning" and "Caution". - Page 3 Precautions in Installation site Warning: Please install the unit in a stable and horizontal place. The weight of the unit should be taken into consideration. When not installed properly, the unit may fall down and cause injuries or the operation noise may be loud. Caution：Arrange ground wires.
-
Page 4: Table Of Contents
Contents Safety..............1 1. Assembling of OP-7.......... 3 2.Operation of OP-7 ..........4 3.Adjustment of the spring of OP-7 ....... 5 4. Setting of the wire rod ........6 5.Replacement of the Entrance Guide....7 6.Optional Extras List ......... 7 Specifications ............. -
Page 5: Operation Of Op-7
2.Operation of OP-7 1．The power switch is turned on. Wire rotation direction of the electric wire pan CW：clockwise CCW：counterclockwise 2.Switching of “CW, CCW” is done by the direction which an electric wire winds. 3.The electric wire is let through by widening the rotation sensor part.(ref.:the picture below) 4.An electric wire is set to the processing machine. -
Page 6: Adjustment Of The Spring Of Op-7
3.Adjustment of the spring of OP-7 Spring for the tangling sensor Spring for the rotation sensor Sensor for the tangling sensor：In case that the sensor does not react though the wire tangles、loosen the spring. Optional connecting harness is required in case of connecting with casting. -
Page 7: Setting Of The Wire Rod
4. Setting of the wire rod 1. The arm is tipped up and the batch of the wire is set. 2. In case that the wire rod is in the plate, it can be set as it stands. ・When the batch of the wire rod is put away, “the holes for letting into”... -
Page 8: Replacement Of The Entrance Guide
5.Replacement of the Entrance Guide Replace the entrance guide which is under the rotation sonsor. Entrance Guide Replace it by undoing the 2 screws A. 6.Optional Extras List Part Name Remarks Number Entrance Guide φ７ OP7-19-7 Standard Entrance Guide φ１２ OP7-19-12... -
Page 9: Specifications
Specifications Model CAS OP-7 Drive Induction Motor Power Voltage AC100V or AC220V 50/60HZ Rated 4.6W Power A moment maximum 210W Consumption At AC100V W 480ｍｍ×D 610ｍｍ×H 855ｍｍ Size Weight 28Kg ※ This specifications are subject to change without any notice for the sake of Improvement.
