KENTOKTOOL TX-T11 Manual

Underground metal detector

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Model: TX-T11

Table of Contents

Troubleshooting

Need help?

Do you have a question about the TX-T11 and is the answer not in the manual?

Questions and answers

Summary of Contents for KENTOKTOOL TX-T11

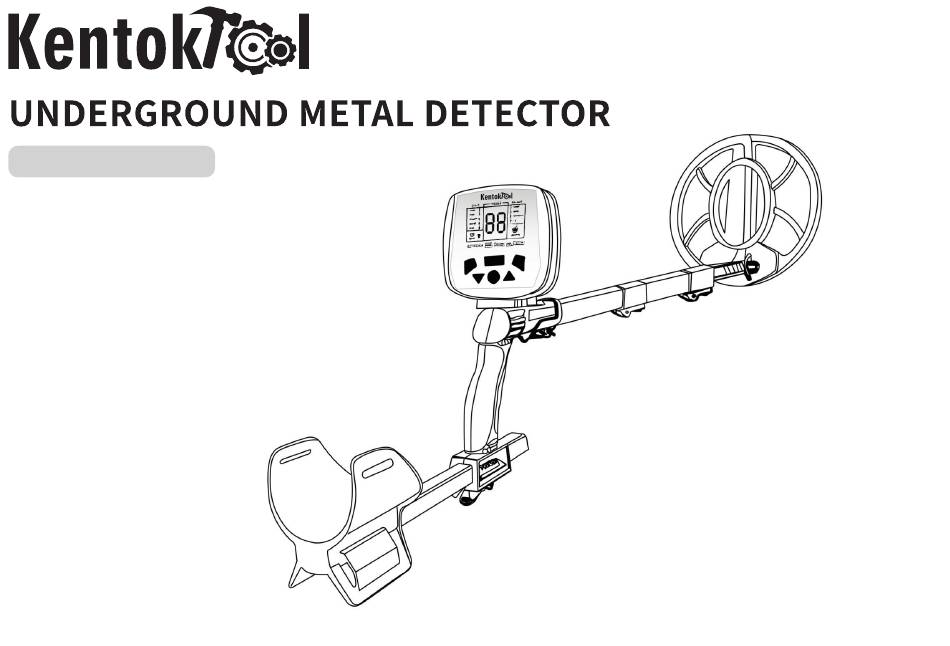

Page 1 Model: TX-T11...
Page 2: Assembling The Detector
Thank you for choosing our Metal Detector. Please read the user manual carefully and keep it for future reference. FEATURE With your metal detector, you can hunt for coins, relics, jewelry, gold, and silver just about anywhere. The detector is versatile and easy to use.The detector's features include: Headphone Jack —...
Page 3 The installation does not require tools, just follow the steps below: Lower Stem Middle Stem Control Box StemControl Bracket Lock Knob Buckle Upper stem Buckle Loosen the lock knob on the lower stem, take down the bolt. install the lower stem on the search coil, and lock it tightly.
Page 4 Open the buckle on the middle stem, insert the lower stem to the middle stem. Adjust the length that the lower stem inserts to the middle stem and fasten the buckle. Open the buckle on the upper stem. insert the middle stem to the upper stem. Adjust the length that the middle stem inserts to the upper stem and fasten the buckle.
Page 5: Installing Batteries
Wind the search coil cable around the aluminum stem with moderate tension to prevent sway- ing. Plug the cable into the lower right side of the control box, align with the slot, and insert fully. Note: Do not pull the cable; pull the plug instead. Plug INSTALLING BATTERIES Make sure the detector is turned off.
Page 6: Using Headphone
Cautions: Always remove old or weak batteries, as they can leak chemicals that may damage elec- tronic components. If you do not plan to use the detector for a week or more, remove the batteries. Dispose of the old batteries promptly and properly according to state and Federal Guide- lines.
Page 7: Operating The Detector
Do not wear headphones while operating your detector near high-traffic areas. For safety, always be aware of your surroundings. OPERATING THE DETECTOR PANEL (LCD and Button) POWER Backlight ON/OFF ON/OFF Press SETTINGS Press + to CHANGE to make it active. THE SETTING of the The current active menu item...
Page 8 Target Conductivity Arc (Metal objects are classified by electrical conductivity, the highest to the right) Target Target Category Category Icons Icons Battery Level Target Indicator Depth Indicator Menu Target-ID EN/07...
Page 9 How to turn On/Off the detector? Press button to turn on the detector, Press again to turn off the detector. What does the SETTINGS button mean? Pressing to select “SENS/VOLUME/DISC/NOTCH” 4 options, when you want to select one of the modes, just press , the black frame will jumps to the desired mode.
Page 10 1. Select SENS mode: When you want to adjust sensitive, press the and the LCD black frame will displays the SENS mode. Press to increase or decrease sensitivity levels. Note: (1) The SENS totally has 10 levels; (2) When SENS mode appears on the LCD, the detector defaults to ALL-METAL mode, it can detect 9 kinds of different metals;...
Page 11 2. Select VOLUME: Press to choose VOLUME mode; Press to increase or decrease the sound volume. The higher the number, the higher the decibel level. EN/10...
Page 12 3. Select DISC mode: (Eliminate the unwanted metal targets in order from programmed low-value metals to high-value metals.) Press to choose DISC mode. Then choose the unwanted target as follows; Press : iron/foil lid/nickel/alum/zinc are selected and ignored. The detector will not respond to these objects;...
Page 13 For example: When you only want to choose ZINC in gold metal, press to eliminate the other metal. In other words, the ZINC will stay LCD display. Note: (1) The DISC mode eliminate unwanted metal targets from the top to the bottom, and only retains the targets modes you want to detect, without the possibility of selecting the desired detection targets in the middle (This is different from NOTCH mode).
Page 14 4. Select NOTCH mode: (Select the metal targets you want to ignore the rest, not in the order of the program.) Press to choose NOTCH mode; Press : lron/foil lid/nickel/alum/zinc icons flash. Press again, which means iron/foil lid/nickel/alum/zinc will be ignored. The detector will not respond to these objects. For example: When you do not want to choose ZINC in gold metal, press to choose the ZINC target.
Page 15 Note: (1) The NOTCH mode can choose any one of the unwanted or only one of the target. (This is different from DISC mode) (2) When one of the target is selected, it will blink for about 5 seconds until it disappears, during the blinking period you can press + or - to interrupt the selection you have target before, and only after it disappears will the target be excluded.
Page 16 Note: (1) Please long pressing pp button, if you release the pp button, the system will automatically revert to the previously set mode. (2) The PP mode setting serves to accurately explore the depth of the gold, Please try the other modes first to determine the extent of the gold, and then use the PP mode to determine the precise location and depth of the gold.
Page 17 6. How to open turn on/turn off the backlight? Press and hold the for a little longer about 2s to switch the backlight on or off. 7. What is the number on the LCD screen display mean? Detected targets are displayed in segments of numbers and symbols. EN/16...
Page 18 TESTING SAMPLE Place a sample of the material you want the detector to find (such as a gold ring or a coin) on the ground. Hold the search coil level to the ground about 1-2 inches above the surface. Slowly move the search coil over the area where you placed the sample, sweeping the search coil in a side-to-side motion in an arc line of 7cm.
Page 19: Search Coil Sweeping Hints
SEARCH COIL SWEEPING HINTS Never sweep the search coil as if it were a pendulum. Raising the search coil while sweeping or at the end of a sweep will cause false readings. Sweep slowly; hurrying will cause you to miss targets. It's better to sweep the search coil from side to side in an arc line of 3 inches motion and keep the search coil parallel to the ground.
Page 20: Factors That Affect The Detecting
FACTORS THAT AFFECT THE DETECTING Accurate detection can be difficult and requires practice for improved results. Sometimes, detection may be restricted by certain factors. If there is interference from other instruments, electrical cables, TVs, or radios in your search area, lower the sensitivity or change the current search area. When searching in highly mineralized areas, the unit may sound even if there's no metal.
Page 21: Troubleshooting Guide
TROUBLESHOOTING GUIDE SYMPTOM CAUSE SOLUTION • Use detector outdoors only • Using detector indoors • Move away from power lines • Using detector near power lines • Keep 2 detectors at least 6 meters Detector chatters,beeps • Using 2 detectors in close proximity erratically or has low sensitivity (20’) apart Environmental electromagnetic...
Page 22: Care And Maintenance
Keep the detector away from dust and dirt, which can cause premature wear of parts. Warranty： We offer a one-year warranty. For assistance, please contact us through Amazon or our email, and we will promptly address your concerns. Email : Service@Kentoktool.net EN/21...
