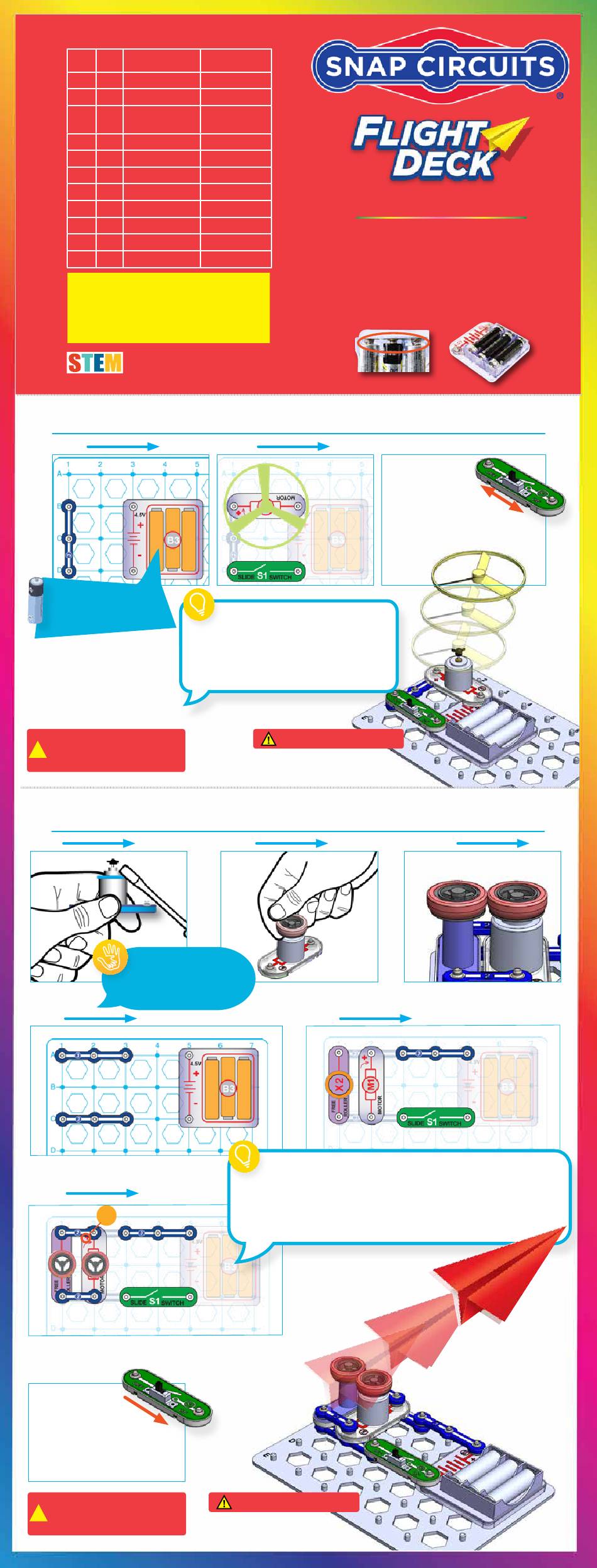

SNAP CIRCUITS Flight Deck Manual

PARTS LIST
QTY. ID NAME
r 2
2 2-snap
r 3
3 3-snap
r 1
B3/ Battery holder
B3B
r 1
Base grid
r 1
M1 Motor
r 1
Glow fan
r 1
Wheel attachment 6SCM1W
r 1
Green fan
r 1
S1 Slide switch
r 1
X2 Roller on snaps
r 3
Foam ball
If any parts are missing or damaged,
DO NOT RETURN TO RETAILER.
e-mail us at: support@elenco.com.
You may order additional / replacement parts:
elenco.com/replacement-parts
Project 1:
STEP 1
Batteries: X3
Install three (3) "AA" batteries
(Full battery installation and warnings
located within technical information)
WARNING: Moving parts. Do not touch the motor
or fan during operation. Do not lean over the motor.
!
Fan may not rise until switch is released.
Do not launch fan at people, animals, or objects.
Eye protection is recommended.
Project 2:
STEP 1
ADULT ASISTANCE REQUIRED
Get an adult to help you pry the
motor top off the motor shaft using a
screwdriver or a 2-snap wire, then push
the wheel on the motor shaft.
STEP 4
FINAL
+
Time to Fly!
• Make a paper airplane
(for ideas, search
'paper airplane design' on
the internet with your parents)
•Turn S1 switch to 'on'
•Launch your airplane by gently
pushing the airplane between the
wheels
WARNING: Moving parts. Do not touch the motor
or fan during operation. Do not lean over the motor.
!
Fan may not rise until switch is released.
Do not launch fan at people, animals, or objects.
Eye protection is recommended.
Part #
6SC02
6SC03
6SCB3/
6SCB3B
6SCBGM
6SCM1
6SCM1FG
6SCM4B
6SCS1
6SCX2
6SCX2B
IMPORTANT:
Flying Saucer
STEP 2
How does the Flying Saucer blast off?
The air is being blown down through the blade and the
motor rotation locks the fan on the shaft. When the motor is
turned off, the blade unlocks from the shaft and is free to act as
a propeller and fly through the air. If the speed of rotation is too
slow, the fan will remain on the motor shaft because it does not
have enough lift to propel it. The motor will spin faster when the
batteries are new.
Paper Airplane Launcher
STEP 2
a special shape which forces the air under the wing. As the plane goes faster this creates higher air
pressure below the wing than above it, which forces the wing and the plane up.
For a paper airplane, the spinning wheel on the motor shaft grabs the plane and propels it forward.
Air moving past the plane's wings supports the plane in the air. If the paper airplane's wings were
shaped like those on a real airplane, then the plane could rise in the air.
CAUTION:
Installing batteries:
• Remove the safety cover from the battery holder
(if your holder has one) with a screwdriver.
• Insert three (3) 1.5V AA batteries (not included) in the holder.
Be sure to orient the battery "+" as marked in the holder.
• Replace the cover (if your holder had one). When installing
a battery, be sure the spring is compressed straight back,
and not bent up, down, or to one side.
• Battery installation should be supervised by an adult.
CAUTION:
very warm motor surface
STEP 5
What makes a plane fly?
An airplane's engines propel the plane forward and push air past the wings. The wings have
very warm motor surface
Model SC-FLTKIT
Blast Off!
•Turn on switch.
•When the fan reaches
full speed, turn off the switch.
•The fan should rise and float
through the air like a flying saucer.
-If the fan doesn't fly off, then turn the switch on
and off several times rapidly when it is at full speed.
Wheel Install
