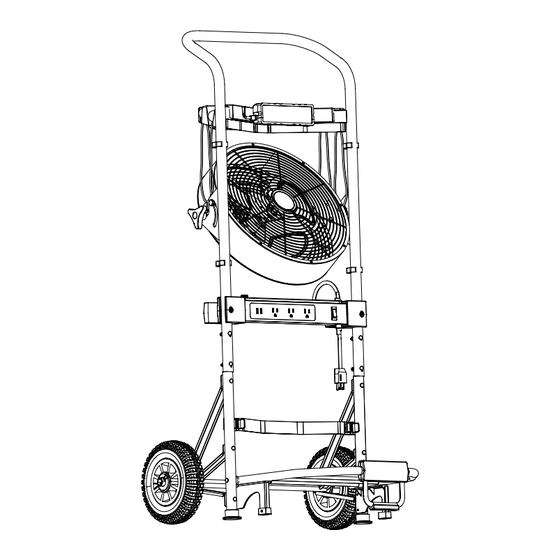

Summary of Contents for MULE 52000

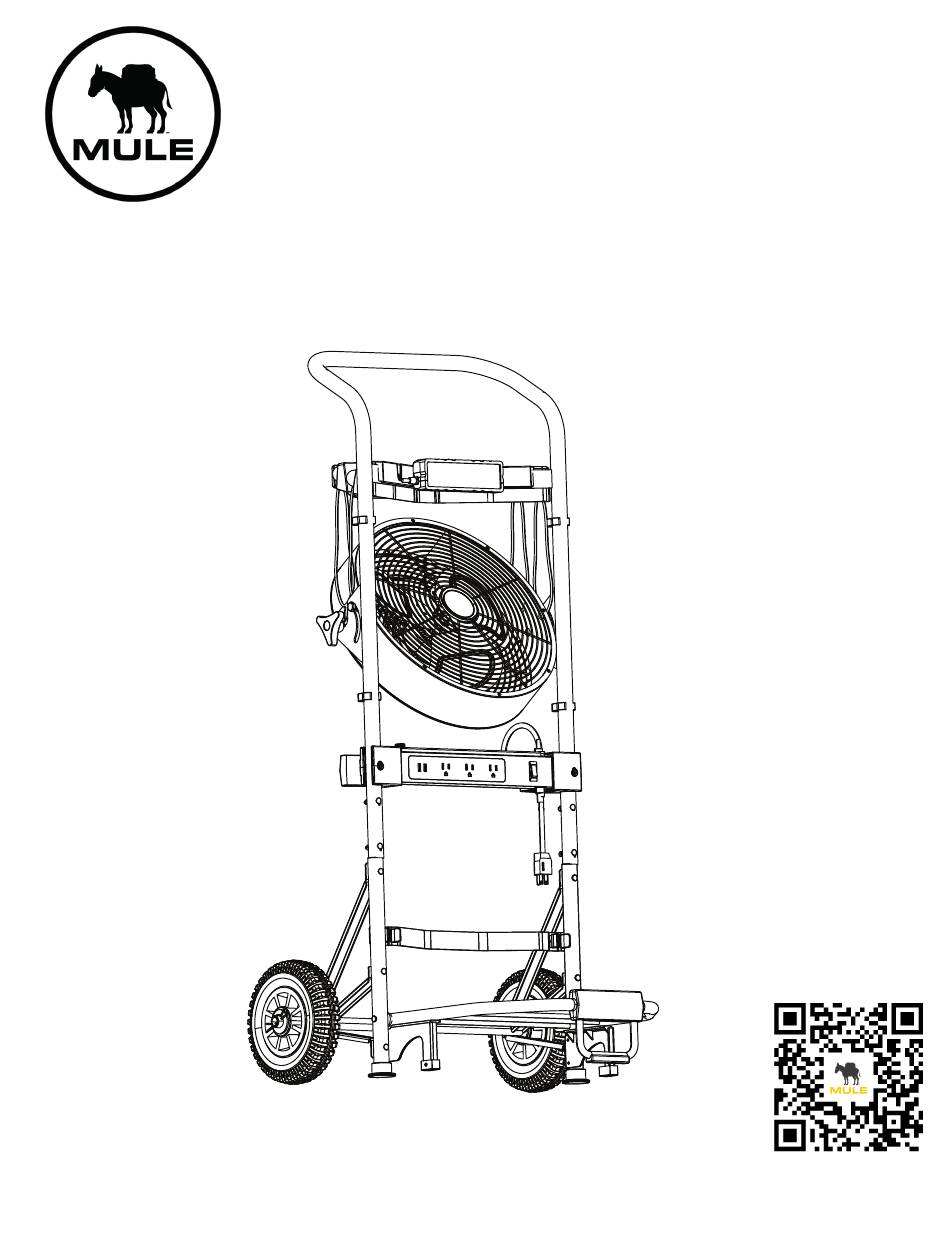

- Page 1 MOBILE WORKSHOP Model #52000 MULEPRODUCTS.COM To obtain service, please contact Customer Service: 1-(877) 289-8692, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
-
Page 2: Package Contents
PACKAGE CONTENTS Ensure all of the Package Contents and Hardware Contents are included before attempting to assemble the product. Fan Assembly Upper Frame Lower Frame Loading Arm Wheel (x2) Axle Support Axle Brace (x2) Axle (x2) - Page 3 HARDWARE CONTENTS (not drawn to scale) Tool Loop Short Screw Long Screw, Cord Clips Black Wrench (x1) Qty.4 & Hex Nut Washer & Hex Qty. 4 Silver Wrench (x1) Qty. 12 ea. M8 Screw Qty. 2 + 1 extra Qty. 2 ea. Washer &...
- Page 4 ASSEMBLY INSTRUCTIONS 1. Use silver wrench (included) to secure the axle to the axle supports & axle braces using two short screws & hex nuts from hardware bag (B). Axle Support Note: The holes in one side of the axle are larger than the other side.
- Page 5 ASSEMBLY INSTRUCTIONS 4. Feed the axle through the center holes in the two washers from hardware bag (F) and the wheel in the order shown above. Slide the two cotter pins from hardware bag (F) in the holes in the axle to secure. Repeat for other wheel.
- Page 6 7. Secure the fan cord to the vertical tube of the frame using two cord clips. Use the other two cord clips to secure the light cord. Note: Avoid clipping the cord clips over the “MULE” logo decals as the clip may damage the logo. Cord...
- Page 7 OPERATING INSTRUCTIONS 1. LIGHT - The toggle switch on top of the light turns light on/off. To adjust the direction of light, tilt light up or down. Note: The power switch on the power strip must be ON for the light to operate.
- Page 8 OPERATING INSTRUCTIONS 4. LOADING ARM - The loading is designed to carry light loads (up to 200 lb). It can be folded up for storage by lifting the loading arm and pressing its side rails into the support clips located on the tubing of the lower frame. Support Loading Clip...
-
Page 9: Safety Information
SAFETY INFORMATION READ CAREFULLY AND SAVE THE FOLLOWING INSTRUCTIONS BEFORE OPERATION. CAUTION: • Suitable for indoor, commercial/light industrial use. Use only grounded 120V outlet. • Indoor use only, do not use outdoor. Do not place the fan in or near window. Rain may create an electrical hazard. •... -
Page 10: Troubleshooting
To obtain service, please contact Customer Service: 1-(877) 289-8692, 8 a.m. - 5 p.m. Central Time, Monday - Friday. ADDITIONAL MULE PRODUCTS Garage Fan Accessory Remote Garage Fan with Remote Model #52007 Model #52003 Model #52006 To order additional Mule products, visit MULEPRODUCTS.COM. Follow us on social media at: FACEBOOK.COM/GETTHEMULE YOUTUBE.COM/@GETTHEMULE TIKTOK.COM/@GETTHEMULE INSTAGRAM.COM/GETTHEMULE TWITTER.COM/GETTHEMULE PINTEREST.COM/GETTHEMULE 9848 • 092823...
