Summary of Contents for OPTOGAMA VIR Series

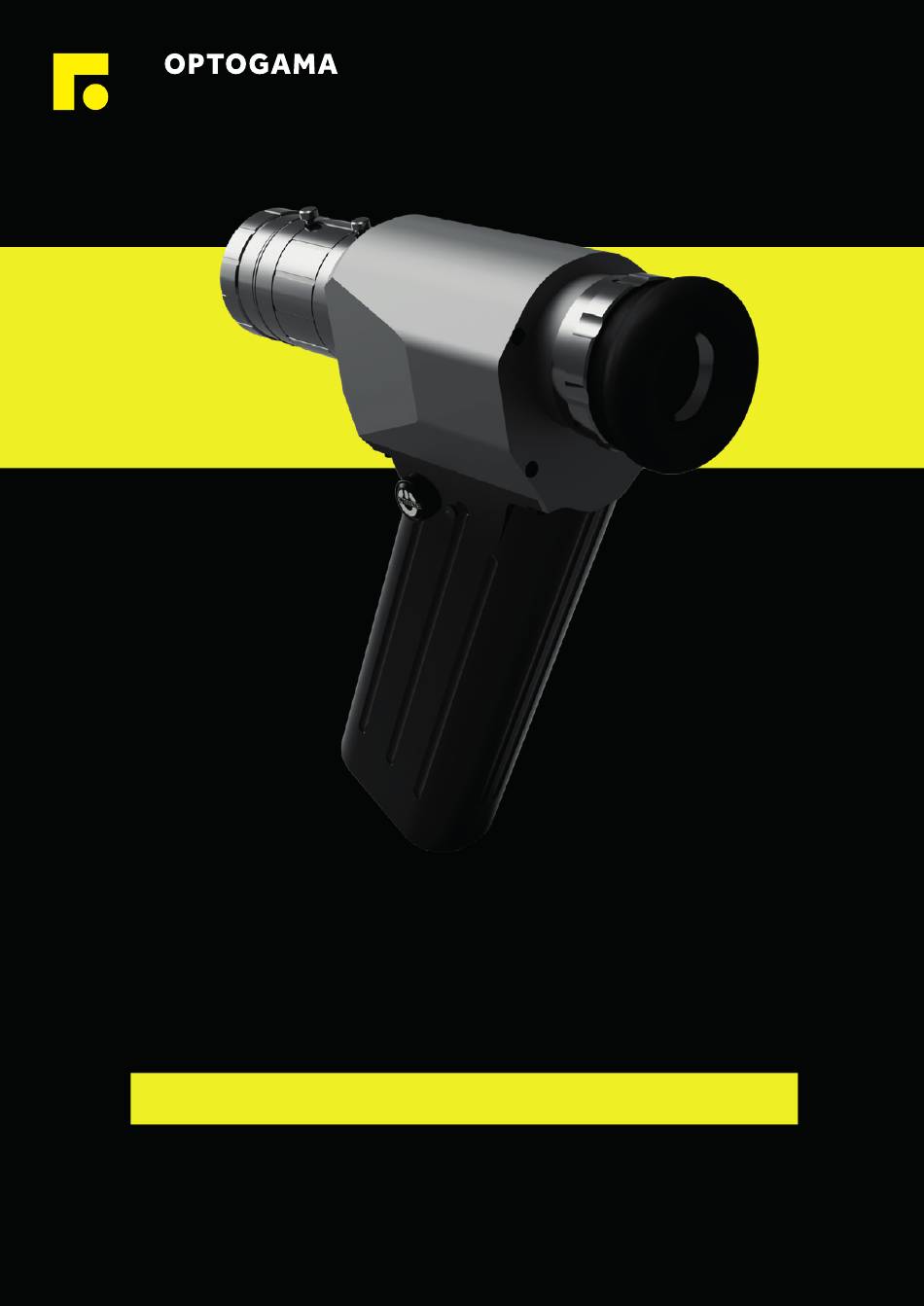

- Page 1 MANUAL Infrared viewers VIR series V I R - 1 3 0 0 -X V I R - 1 7 0 0 -X V I R - 2 0 0 0 -X C Є R o H s optogama.com...
-
Page 2: Table Of Contents
SAFETY REQUIREMENTS ABOUT APPLICATIONS HOW DOES IT WORK? OPERATION IR VIEWER IN COMPARISON WITH A CCD CAMERA VISUALIZATION OF INFRARED LASER BEAM IN “MID-AIR” THE MAINTENANCE INSTRUCTION BLACK SPOTS ON SCREEN SPECTRAL SENSITIVITY POWER DENSITY PHOTOSENSITIVITY TECHNICAL INFORMATION WARRANTY sales@optogama.com optogama.com... -
Page 3: Safety Requirements
When powered (with battery or power supply) the 16-18 kV voltage is generated required to accelerate the electron im- age into the output phosphor screen. The fluorescent green light output (550 nm) is observed via an adjustable eyepiece lens. sales@optogama.com optogama.com... -
Page 4: Operation
Any paper surface absorbs the radiation greatly. 1. USB on a handle for charging 6. Handle 2. Button ON/OFF 7. LED 3. Focus adjustment ring 8. Tripod thread 4. IR Filter 9. Iris adjustment ring 5. Eyepiece sales@optogama.com optogama.com... -
Page 5: Ir Viewer In Comparison With A Ccd Camera
Image conversion viewers are design to observe much wider spectrum. sales@optogama.com optogama.com... - Page 6 1. Use an IR cut-off filter or interference filter and darken the room to reduce external background; 2. Use a metallic surface for observation reflected radiation, as any other material might absorb infrared radiation. 1000 1200 1400 1600 1800 2000 Wavelength Figure 3. Spectral sensitivity (VIR series IR viewers) sales@optogama.com optogama.com...
- Page 7 C-mount ring for any C-mount type lenses ■ Tripod Battery life fully charged 50 hours Weight 0.4 kg Dimensions 153x184x51 mm Temperature range -10ºC…40ºC Tripod or handle R1/4” * with macro ring Lenses 1X (F1.4/25mm) and 2X (F1.8/50mm) are exchangeable. sales@optogama.com optogama.com...
- Page 8 The company shall not accept warranty claim: ■ non-authorized alteration, ■ disassembling of device, ■ mechanical or any external damages, ■ if 2 years warranty term has expired. SERIAL NO. VERSION NO. SPECTRAL RANGE DATE OF INVOICE sales@optogama.com...
- Page 9 +370 5 219 4884 sales@optogama.com sales@optogama.com...
