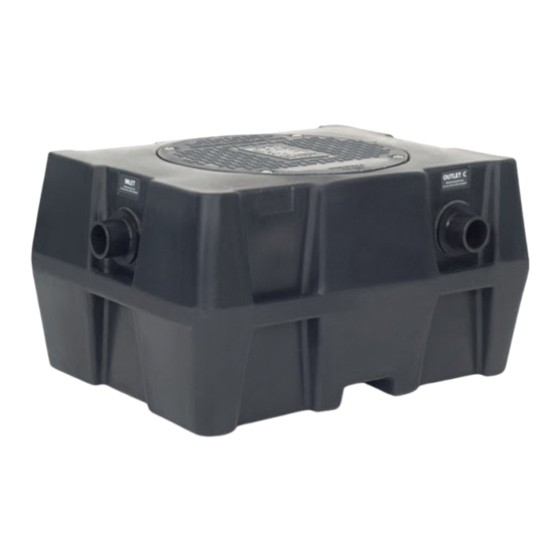

High efficiency grease interceptor

Advertisement

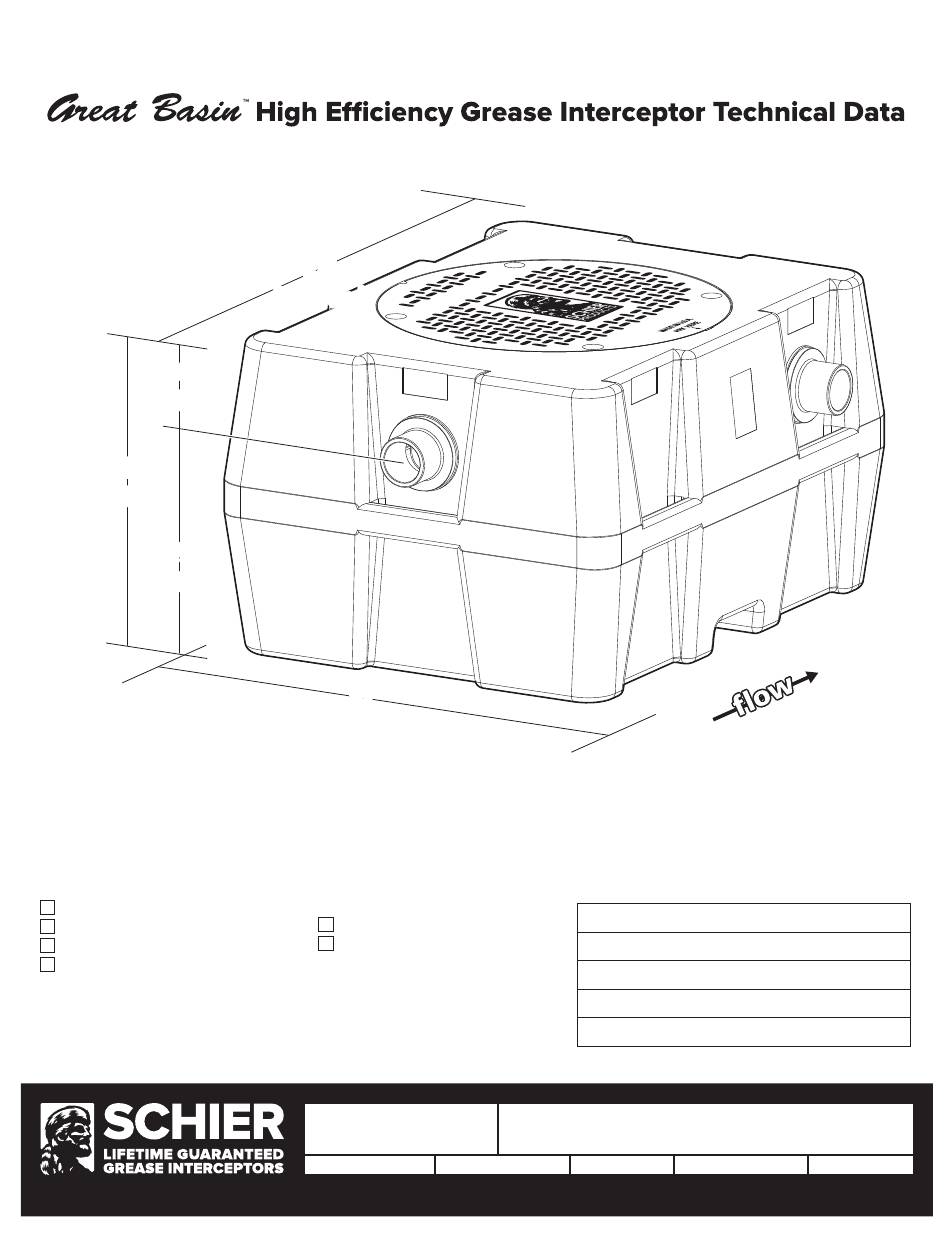

Submittal | Special Precautions | Specifications | Installation | Application Specific Details
4¼"
4¼"
(10.8 cm)
(10.8 cm)
15"
15"
(38.1 cm)
(38.1 cm)
10¾"
10¾"
(27.3 cm)
(27.3 cm)
SUBMITTAL
STANDARD:
2" plain end inlet/outlet | Capacities - Liquid: 22 gal. (83.1 L); Grease: 109 lbs. (49.5 kg)(15 gal./56.7 L); Solids: 6.4 gal. (24.1 L)
Light Duty, bolted, gas/water tight polyethylene covers. (450 lbs. when direct buried, 2500 lbs. when using the SR-16 Riser)
OPTIONS:
2" Male Thread Inlet/Outlet
3" Plain End Inlet/Outlet
3" Male Thread Inlet/Outlet
Pumpout Port (Small)
9500 Woodend Road | Edwardsville, KS 66111 | Tel: 913-951-3300 | Fax: 913-951-3399 | www.schierproducts.com
GB-20
27"
27"
(68.6 cm)
(68.6 cm)
21"
21"
(53.3 cm)
(53.3 cm)
TeleGlide Risers
SR16 >2-1/8" – 16"
CC16 >2-1/8" – 16" with Integrated
Membrane Clamping Collar Kit
MODEL NUMBER:
GB-20
PART #: 4010-001-XX
DWG BY: C. O'Boyle
APPROVAL:
Signature:
Date:
Company:
Specifying Engineer:
Engineering Firm:
DESCRIPTION: Polyethylene Grease Interceptor
20 GPM - 22 gallon capacity
DATE: 10/08/2015 REV: 2
07/07/2016
ECO:
© Copyright 2016 Schier, All Rights Reserved
page 1 of 6
