- Page 1 INSTRUCTION MANUAL PHBT Table-Built-In Panel for PHB...
-
Page 2: Packing List

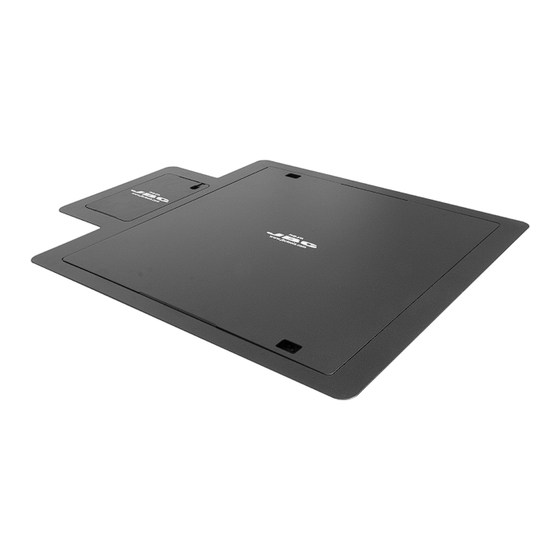

This manual corresponds to the following reference: PHB-STA Packing List The following items should be included: Table-Built-In Panel for PHB ..... 1 unit Windowed Cover for PHB ....1 unit Small Cover for PHB ......1 unit Screws ............9 units Velox 4x20 - zinc plated in black Manual ............ - Page 3 200 mm Features 130 mm 130 mm PHBT comes with four covers. According to your needs it can be used one or another of the PHB covers. See the different options at the next page. 100 mm - Cover for PHB:...
- Page 4 Options Cover and protect the work space using the different covers provided with PHBT. The console can be covered by the console cover. For the other tree PHB covers see the following usage options: Option 1: While working with the preheater, the side area next to the heating zone can be covered using the windowed cover for PHB.
- Page 5 para manuales - color gris 200 mm 130 mm 130 mm Note: If the preheater is used the other way round, all preheater covers can also be fitted the other way round. Rear area 100 mm 80 mm Front area Heating surface Heating surface 60 mm...
- Page 6 Opening Dimensions for Panel Installation...
- Page 7 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
-
Page 8: Specifications
30.2 x 26.3 x 5.3 in Complies with CE standards. ESD Safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor. Warranty does not cover product wear or misuse.
