Website:
www.horizonglobal.com
Technical Assistance: 800-632-3290
TechnicalSupport@horizonglobal.com
Applications:
Years
Make
2014-Current*
Jeep
*Visit our website for the most up to date
information regarding application years and trim
levels.
Equipment Required:
Safety
Ratchet
Glasses
Sockets
Flat Head
Utility
Marker
Screwdriver
Knife
DO NOT EXCEED LOWER OF TOWING VEHICLE
MANUFACTURER'S RATING OR:
Hitch Type
Weight Carrying
Weight Distributing
©2015-2018, 2020 Horizon Global™ Corp - Printed in Mexico

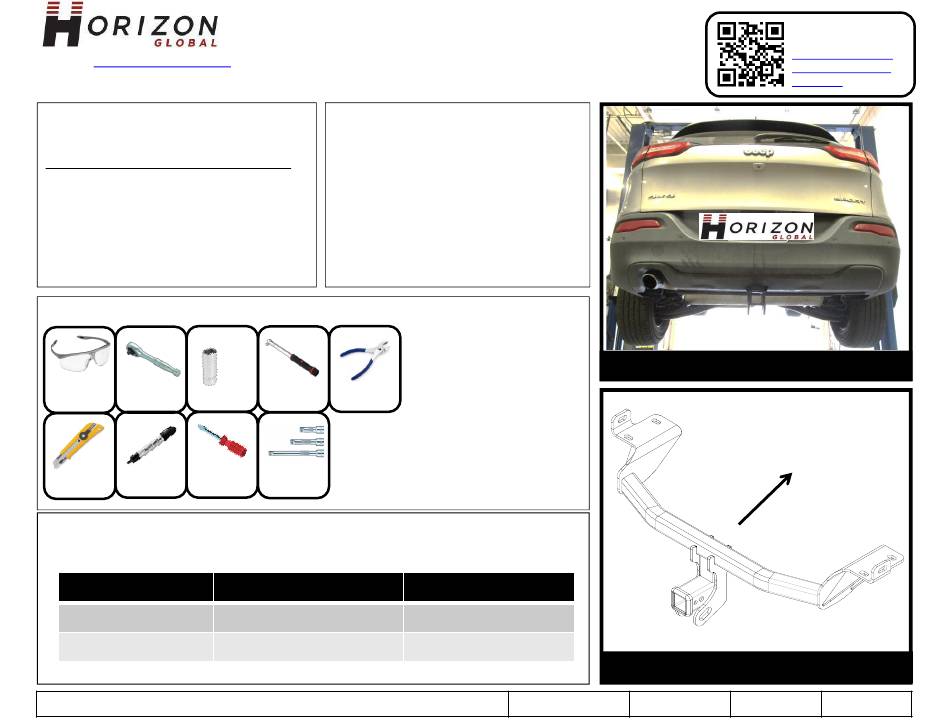

Installation Instructions
PART NUMBERS: 75998, 87683, 44765, CQT75998
Installation Time:
Models
The time listed above is the average time
for professional installers. If you do not
Cherokee
feel comfortable performing this
installation on your own or are in need of
assistance, please contact a professional
installer.
7 mm
8 mm
10 mm
13 mm
21 mm
Torque
3/4''
Pliers
Wrench
6'' Socket
Extension
Max Gross Trailer Weight
5000 lb. (2270 kg)
5000 lb. (2270 kg)
1 hr.
Max Tongue Weight
500 lb. (227 kg)
500 lb. (227 kg)
Sheet 2 of 21
Scan for safe towing
tip, or visit
http://qr.towingprod
ucts.net/qrproducts/
qr-product
Representative Vehicle Photo
Front of
Vehicle

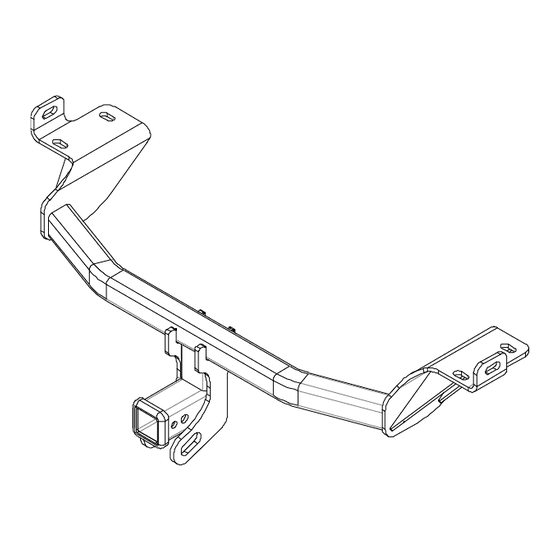

Hitch Illustration
75998NP
10-23-20
Rev. G

Advertisement

loading
Need help?

Need help?

Do you have a question about the 75998 and is the answer not in the manual?

Questions and answers

Summary of Contents for Horizon Global 75998

  • Page 1 Max Tongue Weight Weight Carrying 5000 lb. (2270 kg) 500 lb. (227 kg) Weight Distributing 5000 lb. (2270 kg) 500 lb. (227 kg) Hitch Illustration ©2015-2018, 2020 Horizon Global™ Corp - Printed in Mexico Sheet 2 of 21 75998NP 10-23-20 Rev. G...
  • Page 2: Installation Instructions

    Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684. ©2015-2018, 2020 Horizon Global™ Corp - Printed in Mexico Sheet 3 of 21...
  • Page 3 10. Reinstall exhaust hanger bolts, exhaust hanger bracket, muffler, plastic clips, and lower fascia back to vehicle. 3.50” 3.75” Figure 6 Figure 7 Figure 9 Figure 8 ©2015-2018, 2020 Horizon Global™ Corp - Printed in Mexico Sheet 4 of 21 75998NP 10-23-20 Rev. G...
  • Page 4 Figure 2. NOTE: On Trailhawk models remove (4) extra plastic rivets that secure the heat shield around lower fascia and take the heat shield down as shown in Figure 3. Trailhawk Trailhawk ©2015-2018, 2020 Horizon Global™ Corp - Printed in Mexico Sheet 5 of 21 75998NP 10-23-20...
  • Page 5 NOTE: On Trailhawk models only feed (1) vertical hardware through forward square slot and reuse (2) M14 bolts removed in step 4 each side. Trailhawk ©2015-2018, 2020 Horizon Global™ Corp - Printed in Mexico Sheet 6 of 21...
  • Page 6 9. Use cable ties ⑥ to secure vehicle wiring to exhaust hanger bracket. secure to the vehicle when towing. 10. Reinstall bottom plastic panel, lower fascia, and exhaust removed in step 1, 2. Trailhawk ©2015-2018, 2020 Horizon Global™ Corp - Printed in Mexico Sheet 7 of 21 75998NP 10-23-20...
