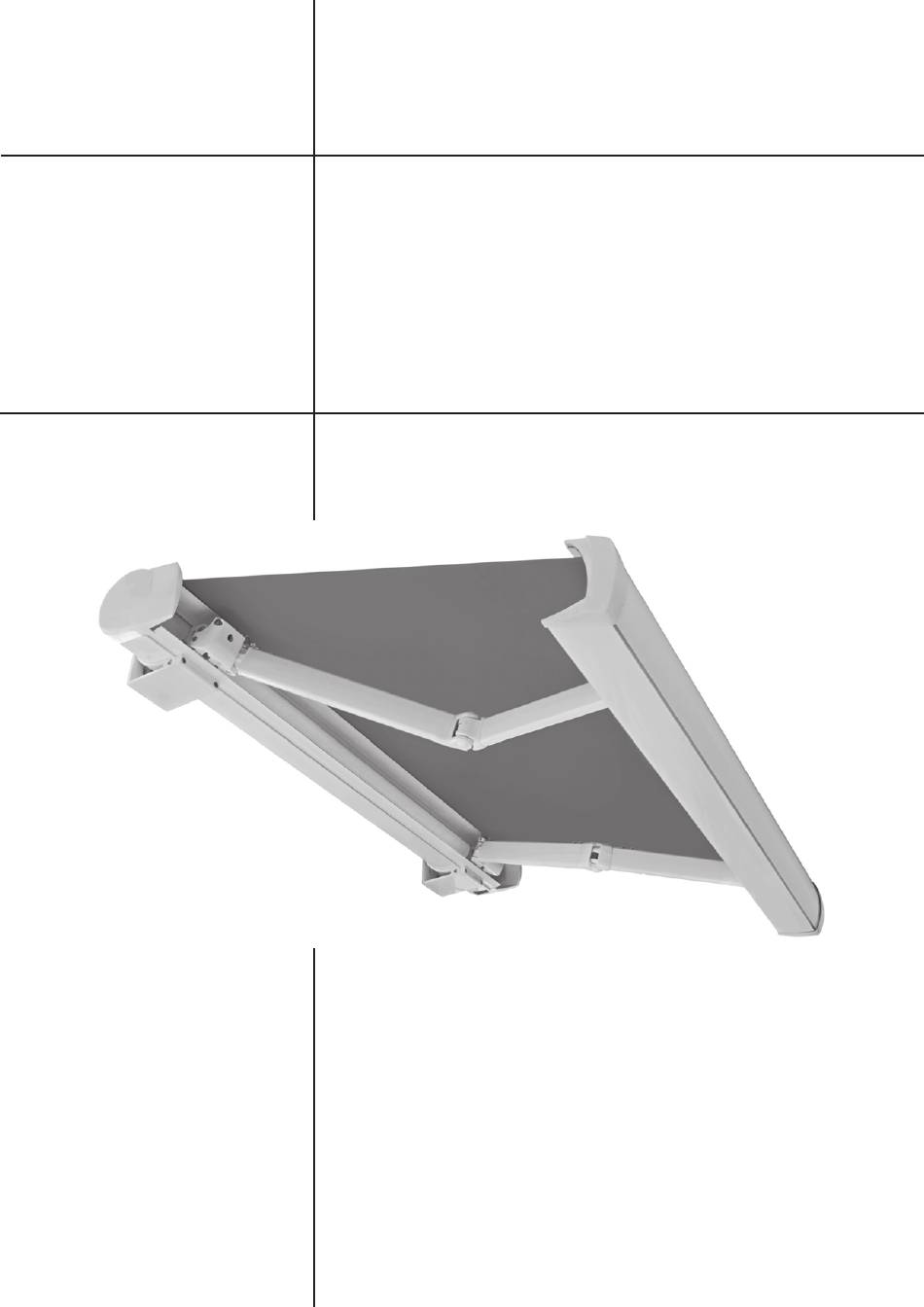

SKYSHADE 9000FC Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
01933 449 000
01933 449 000
www.awningsonline.co.uk
SKYSHADE
9000FC
Installation
manual
www.awningsonline.co.uk
06/24
06/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9000FC and is the answer not in the manual?

Questions and answers

Summary of Contents for SKYSHADE 9000FC

  • Page 1 01933 449 000 www.awningsonline.co.uk 06/24 SKYSHADE 9000FC Installation manual 01933 449 000 www.awningsonline.co.uk 06/24...

  • Page 2: Table Of Contents

    01933 449 000 www.awningsonline.co.uk 06/24 Table of conTenTs 1 Introduction ..................4 1.1 ▪ Symbols used in the manual ....................4 1.2 ▪ Staff requirements ........................4 1.3 ▪ Required equipment .........................4 1.4 ▪ Packaging contents ........................5 2 Safety ....................5 2.1 ▪ General safety information .......................5 2.2 ▪ Requirements for working in safety ..................5 2.3 ▪ Working environment ........................5 3 Technical tables for assembly .............6 3.1 ▪ Number of arms, arms support, conveyer kit, wall brackets table ..........6 3.2 ▪ Table of awning dimensions/ no. arm supports, brackets and conveyers ........7 3.3 ▪ Load on awning fixing plugs, depending on type of attachment tables ........

  • Page 3: Introduction

    01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual InTroducTIon T his manual was prepared by the Manufacturer to provide all those authorised to install and carry out extraordinary maintenance operations with the necessary information. REMOvING, rewriting or modifying the pages of the manual and its contents in any way is strictly prohibited. Operations must be carried out by technically and professionally qualified staff, in compliance with the national laws or regulations on the subject. This manual must be kept complete in all its parts in an easily accessible place. The manufacturer reserves the right to update products and corresponding manuals without the obligation to update previous products and manuals. The manufacturer reserves all rights on this manual. It may not be reproduced in any way, wholly or in part, without the manufacturer's written authorization. symbols used in the manual ▪ The WARNING symbols used in the manual are shown below. InforMaTIon and PrecauTIons useful suggestions and instructions to ensure proper installation and/or maintenance of the awning.

  • Page 4: Packaging Contents

    01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual Packaging contents ▪ The awning is delivered including expandable arms, fabric and controls (manual or motorized) and any optional items requested. InforMaTIon and PrecauTIons never move the support arms from the position they are found in when supplied. safeTy General safety information ▪ ▪ during the operations described in this manual, make sure that only authorised staff are present within the working area (see chapter 1.2 "staff requirements") .

  • Page 5: Technical Tables For Assembly

    01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual TechnIcal Tables for asseMbly ▪ nuMber of arMs, arMs suPPorT, conVeyer KIT, Wall bracKeTs Table WarnInG The folloWInG Tables are Purely IndIcaTIVe. To The besT of our KnoWledGe The InforMaTIon Is uP To daTe. baT s.p.a. does noT ProVIde any GuaranTee reGardInG accuracy, relIabIlITy, and coMPleTeness of The InforMaTIon conTaIned hereIn.

  • Page 6: Table Of Awning Dimensions/ No. Arm Supports, Brackets And Conveyers

    01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual WarnInG - for awnings that are less than 4 metres wide, to not insert the conveyers. - Install a wall bracket for each arm support. - starting from 8 metres, with joints, no joint support is indicated in the tables.
  • Page 7 01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual 4 arMs (MEASuREMENTS 6000-7000-8000-9000-10000-11000) 5 arMs (MEASuREMENTS 10000-11000-12000) 6 arMs (MEASuREMENTS 10000-11000-12000) “W” WIdTh “W” WIdTh 4000 5000 6000 6000 1600 2000 2500 3000 1600 1750 3000 1850 2000 2500 3000 1850 1750 3000 2100 4 arMs 2000...
  • Page 8 01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual “W” WIdTh “W” WIdTh 7000 8000 1600 2000 3500 1600 2100 4000 1850 2000 3500 1850 2100 4000 2100 2000 3500 2100 2100 4000 4 arMs 2350 2000 3500 2350 2100 4000...
  • Page 9 01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual “W” WIdTh “W” WIdTh 11000 12000 1600 2300 3900 5500 1600 2400 4100 6000 1850 2300 3900 5500 1850 2400 4100 6000 2100 2400 4100 6000 2100 2300 3900 5500 2350 2400...

  • Page 10: Load On Awning Fixing Plugs, Depending On Type Of Attachment Tables

    (a) are used. InforMaTIon and PrecauTIons It is advisable to use all 4 holes available on the brackets. If this is not possible, use the three holes (a) in the figure below. FRONT vIEW Wall MounTInG of 9000FC WIdTh (m) Extraction load on anchors (KN) 0,80 0,94...
  • Page 11 (b) are used. InforMaTIon and PrecauTIons It is advisable to use all 4 holes available on the brackets. If this is not possible, use the three (b) in the figure below.  ceIlInG MounTInG of 9000FC WIdTh (m) Extraction load on anchors (KN) 1,05 1,23...

  • Page 12: Table Of Recommended Anchors

    01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual Table of recoMMended anchors ▪ 3.4.1 Types of anchors depending on base material ▪ Extraction load on anchors (KN) CONCRETE hilti hsT CRACKED CONCRETE NATuRAL HARD STONE 2 CONCRETE hilti hsa NATuRAL HARD STONE hilti hIT-hy 150 with has CONCRETE CONCRETE hilti hIT-re 500...

  • Page 13: Operational Anchor Fixing Sequence

    01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual 3.4.2 ▪ operational anchor fixing sequence MechanIcal anchor cheMIcal anchor 1 ▫ Drill a hole suitable 1 ▫ Drill a hole suitable for the anchor for the anchor 2 ▫ Pay special 2 ▫ Pay special attention attention to the to the depth of the...

  • Page 14: Coverage And Assembly Diagrams

    01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual coverage and assembly diagrams ▪ Wall MounTInG Sporgenza / Projection / Projection / Ausladung / Salida (cm) 0° 15° 30° 40° ceIlInG MounTInG Sporgenza / Projection / Projection / Ausladung / Salida (cm) 0°...

  • Page 15: Support Brackets

    01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual support brackets ▪ Wall bracKeT 120MM 22,5 FIG. 2 Wall bracKeT 50MM 128.5 FIG. 3 01933 449 000 www.awningsonline.co.uk rev.03 15-10-13 06/24...
  • Page 16 01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual ceIlInG bracKeT 120MM 156,5 45,5 FIG. 4 ceIlInG bracKeT 50MM 156,5 45,5 R6,25 R6,25 FIG. 5 rev.03 15-10-13 01933 449 000 www.awningsonline.co.uk 06/24...

  • Page 17: Manual Awning Installation

    4 ▪ Manual aWnInG WarnInG InsTallaTIon Insert the plugs in the centre of the wall The 9000FC awning can be both wall and bracket lower holes, to aid attachment ceiling mounted. If the supply includes optionals, during mounting. read C hapter 6 “Optionals” first.
  • Page 18 01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual Wall bracKeTs 120MM (scale 1:1) Wall bracKeTs 50MM (scale 1:1) rev.03 15-10-13 01933 449 000 www.awningsonline.co.uk 06/24...
  • Page 19 01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual ceIlInG bracKeTs 120MM (scala 1:1) ceIlInG bracKeTs 50MM ( scala 1:1) 01933 449 000 www.awningsonline.co.uk rev.03 15-10-13 06/24...

  • Page 20: Ceiling Mounting Brackets

    01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual 4.1.2▪ ceiling mounting brackets WarnInG To mount the awning on the ceiling, fix the bracket to the one on the wall. FIG. 8 3 ▫ Drill the wall depending on the type of screws avail- able and the type of wall (see Chapter 3.4). FIG. 10 5 ▫using a spirit level and string, mark the position of where to make the holes on the wall (see Chapter 3.2 "awning size/number of arms...

  • Page 21: Mounting The Awning On Brackets

    01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual 4.2▪ Mounting the awning on brackets 12 ▫ Repeat the same operation on the other side of the awning. 13 ▫ Once the desired tilt has been reached, fix the position of the awning by tightening the screw (G-Fig. 12) with a 3mm Allen wrench.

  • Page 22: Installation Of Motorised Awning

    01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual InsTallaTIon of MoTorIsed aWnInG WarnInG InsTallInG the motorised product is strictly prohibited in explosive environments. WarnInG use a block switch (with key) if the awning is installed in sensitive buildings, such as schools, colleges, hospitals, clinics etc.

  • Page 23: Extraordinary Maintenance

    01933 449 000 www.awningsonline.co.uk 06/24 9000FC Installation Manual eXTraordInary MaInTenance Troubleshooting, causes and solutions ▪ Manual aWnInG ProbleMs causes soluTIons Conical winding of canvas Non-uniform canvas thickness Fully rewind canvas MoTorIsed aWnInG without electronic control centre ProbleMs causes soluTIons Conical winding of canvas Non-uniform canvas thickness Fully rewind canvas The awning does not rewind...
