Zipato Mini Keypad RFiD/Z-Wave Quick Installation Manual

MINI KEYPAD
RFiD/Z-WAVE
QUICK INSTALLATION GUIDE
v1.4
TRADEMARKS
Zipato and the Zipato logo are registered Trademarks. All
other product names mentioned herein may be trademarks or
registered trademarks of their respective companies.
NOTICE
Although Zipato has attempted to ensure the accuracy of the
content of this manual, it is possible that this document may
contain technical inaccuracies, typographical, or other errors.
Zipato assumes no liability for any error in this publication, and for
damages, whether direct, indirect, incidental, and consequential
or otherwise, that may result from such error, including, but not
limited to loss of data or profits.Zipato provides this publication
"as is" without warranty of any kind, either express or implied,
including, but not limited to implied warranties of merchantability
or fitness for a particular purpose. The published information in
the manual is subject to change without notice. Zipato reserves
the right to make changes in the product design, layout, and driver
revisions without notification to its users. This version of the
Installation guide supersedes all previous versions.
ELECTROMAGNETIC COMPATIBILITY
When operated according to manufacturer instructions, the product
complies with all applicable CE harmonised standards from EMC
Directive 2004/108/EC and Part 15 of the FCC Rules. The connections
conducting HF signals must not be damaged or altered in any way by
the user.
TAKE CARE OF YOUR SAFETY
Display extreme caution when using ladders or steps, please
follow manufacturer's instructions. Be careful when using hand
and power tools and follow the manufacturer's guidelines when
using them. Take care that the correct tools are used. Wear
goggles or protective clothing where required.
CAUTION
This device is using a radio signal that passes through walls,
windows and doors. The range is strongly influenced by local
conditions such as large metal objects, house wiring, concrete,
furniture, refrigerators, microwaves and similar items. On
average, the indoor range is approximately 30 meters.
Do not expose this product to excessive heat or moisture.
Prevent long term exposure to direct sunlight.
Do not attempt to repair this product. If the product is damaged
or if you are in doubt about the proper operation, take the
product back to the place of purchase.
Do not clean the product with any liquid.
Z-WAVE COMPATIBILITY
Because this is a Z-Wave device, it means it can co-operate with other
Z-Wave devices of other manufacturers. It can co-exist in a Z-Wave
network existing with product from other manufacturers.
INTRODUCTION
Zipato Mini RFID Keypad combines RFID and Z-Wave protocol for
access control purposes. The user can identify themselves either
make your home smart
by using manual code buttons on the numeric keypad, or by using
a RFID key fob. The keypad fully supports Zipato automated security
systems but also works with other Z-Wave enabled networks.
"Home" and "Away" buttons allow the arming and disarming of
security system or running any automation scenario.

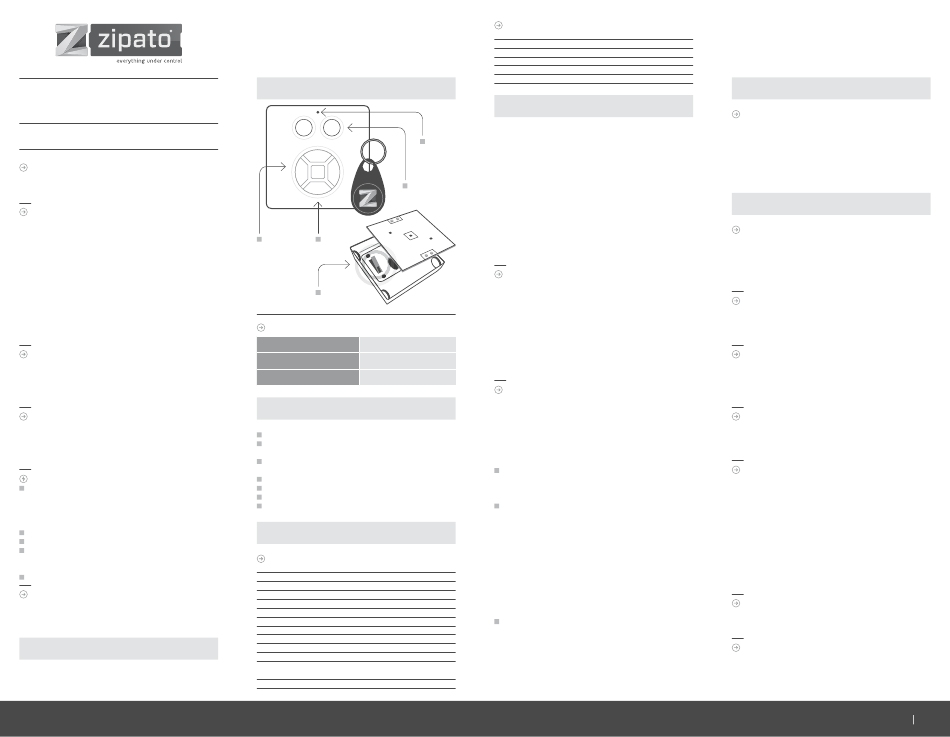

OVERVIEW
Home Away
Indicator
LED
1
2 3
Enter
Home & Away
4
Buttons
Manual Tag
Code Area
Buttons
Tamper
Switch
PACKAGE CONTENTS
1PC Mini Keypad RFiD/Z-Wave
1PC RFiD tag
2PC AA 1,5V batteries
FEATURES
Arms or disarms security system
User identification over numeric keypad or RFID key fobs (2
included)
Can be used with any Z-Wave network/controller, regardless of
the manufacturer
Very low power consumption
Low power indication
Low battery auto report
Easy installation and relocation
SPECIFICATION
TECHNICAL SPECIFICATION
PROTOCOL Z-Wavetm, RFID, Tag-it, ISO15693, ISO18000-3
POWER 2 x AA 1,5V batteries
RANGE Minimum 30m indoor / 70m outdoor
STORAGE TEMPERATURE -5°C ~ 65°C
STORAGE HUMIDITY 10% to 70%
OPERATING TEMPERATURE 10°C ~ 40°C
OPERATING HUMIDITY 30% to 80%
WEIGHT
DIMENSIONS 17mm x 62mm x 62mm
PACKAGE WEIGHT
PACKAGE DIMENSIONS 122mm x 95mm x 35mm
REGULATIONS EMC 2004/108/EC, R&TTE 1995/5/EC, LVD
2006/95/EC, FCC PART 15
WARRANTY 1 year
www.zipato.com
MODELS AND FREQUENCIES
EUROPEAN UNION - EU version
UNITED STATES - US version
RUSSIA - RU version
ISRAEL - IS version
AUSTRALIA - AU version
INDIA - IN version
INSTALLATION AND OPERATION
1 | Use a flat screwdriver at the inlets on the sides to gently unlock
the back cover.
2 | Use the designated holes on the back cover to screw and mount
the Mini Keypad RFiD/Z-Wave.
3 | Place two AA 1,5V batteries into the device.
4 | Mount the Mini Keypad RFiD/Z-Wave onto the back cover, be sure
to close it on all sides, turn the back cover as shown in the picture in
overview section. Be sure that the tamper is place on the right spot on
the back cover. Mini Keypad RFiD/Z-Wave. (indication mode: Tamper
pressed/released).
5 | After 1 seconds startup routine begins (indication mode: Ready
for learn mode).
6 | After 3 more seconds (4 seconds in total) mounting is
completed. (indication mode: Mounting successful)
7 | The Mini Keypad RFiD/Z-Wave is now ready to use.
LED INDICATION
The indicator gives various statuses of the device as follows:
1 | Ready for learn mode: Indicator light blinks every second.
2 | Learn in progress (add): Indicator light blinks 2 times per second.
3 | Learn in progress (remove): Indicator light blinks 3 times per second.
4 | Learn mode success: Indicator light is on for 1 second.
5 | Learn mode failed: Indicator light blinks 8 times fast.
6 | Tamper pressed/released indicator light blinks 3 times rapidly.
7 | Mounting successful indicator light is on for 1 second.
8 | Busy sending an RF message Indicator light is blinking each
second, while most of the time on.
9 | RF message send failed indicator light blinks 6 times rapidly
CONTROL
The Mini Keypad RFiD/Z-Wave operates as an access control device,
using the combination of the USER_CODE command class and the
ALARM_V2 command class. User Codes are to be stored in the Mini
Keypad RFiD/Z-Wave, using the USER_CODE_SET command. When
the User Codes are stored in the Mini Keypad RFiD/Z-Wave, the
ALARM_REPORT_V2 will have the corresponding USER_ID with the
used USER_CODE.
There are two types of Access Control with User Codes:
1 | Manually by using the buttons on the Mini Keypad RFiD/Z-Wave
2 | Using the Mini Keypad RFiD/Z-Wave reader and Tags
The difference in using one of the above mentioned methods is:
1 | When pressing Home/Away, the manual codes (1-4) can be pressed
within 1 second. After entering the code the user must press ENTER
and the USER_CODE_REPORT or ALARM_REPORT_V2 will be sent.
2 | When the user waits 1 second after pressing Home/Away, the Mini
Keypad RFiD/Z-Wave reader is started and a Tag needs to be placed
on, brought directly on the Mini Keypad RFiD/Z-Wave.
After successful read, the USER_CODE_REPORT or ALARM_
REPORT_V2 will be sent.
Because the RFID code are not readable on the Tags, the Mini Keypad
RFiD/Z-Wave has some special procedures. Some examples are given
at the Typical operation diagrams chapter in the Technical Manual.
There are some situations:
45g 1 | IN CASE AN UNKNOWN MANUAL CODE ENTERED OR UN-
KNOWN TAG PRESENTED.
150g In this case, the Mini Keypad RFiD/Z-Wave will send an unsolicited
USER_CODE_REPORT with UserID 0 and UserID Status 0. A
controller will receive this report and can initiate a USER_CODE_SET
to the Mini Keypad RFiD/Z-Wave.
2 | IN CASE A KNOWN MANUAL CODE OR TAG IS PRESENTED.
make your home smart
This means, this code was previously SET using the USER_CODE_
wt-rfid.eu / 868.42 MHz SET command. Then the Mini Keypad RFiD/Z-Wave will respond with
wt-rfid.us / 908.42MHz a ALARM_REPORT_V2 with Type 6 and Event 0x05 or 0x06. When the
wt-rfid.ru / 869.02MHz user presses Home, event 0x06 (Keypad Unlock) will be used. When
wt-rfid.is / 916.02MHz the user presses Away, event 0x05 (Keypad Lock) will be used.
wt-rfid.au / 921.42MHz
wt-rfid.in / 865.20MHz
ADDING TO Z-WAVE NETWORK
INCLUDE OR EXCLUDE IN Z-WAVE NETWORK
1 | Make sure your Z-Wave controller is in the right operation mode
(include or exclude)
2 | Press and hold the tamper for 1 seconds and release to start
the inclusion/exclusion process
(indication mode: Ready for learn mode).
3 | (The product will start NWI automatically after unsuccessful
normal inclusion)
TECHNICAL MANUAL
NOT LISTENING ROUTING SLAVE
This Z-Wave product will be used as routing slave. Slave nodes are
nodes in a Z-Wave network that receive commands and perform
actions based on the command. This device will always be in sleep
mode because it works on batteries. In sleep mode the device is not
active listening, the device will wake up according to the wakeup
command class.
INCLUDE INITIATOR
The include initiator is used when Primary and Inclusion Controllers
include nodes into the network. When both include initiators have
been activated simultaneously the new node will be included to the
network (if the node was not included previously).
EXCLUDE INITIATOR
The exclude initiator is used by Primary and Inclusion Controllers to
exclude nodes from the network. When the exclude initiator and a
slave initiator are activated simultaneously, it will result in the slave
being excluded from the network (and reset to Node ID zero). Even if
the slave was not part of the network it will still be reset by this action.
HOPS & RETRIES
The Z-Wave range has a range of up to 30 meters in line of sight. This
signal is not limited to the 30 meter range due to routing the Z-Wave
message to other nodes in the network. This way the range of the
Z-Wave network can be expanded to 150 meters indoors (limit of 4 hops).
CLASS: 0X63 COMMAND_CLASS_USER_CODE
The purpose of the User Code Command Class is to configure the
Mini Keypad RFiD/Z-Wave to accept certain RFID Tags or codes. This
is typically done by some kind of static controller or gateway. After
sending a User Code Set, including a unique User Identifier (UID),
the in-use state (0x01) and the Tag code or keypad sequence using
ASCII codes, the Mini Keypad RFiD/Z-Wave will accept the code and
notify any other device using the Alarm Command Class. This other
device can be configured using the Association Command Class and
is typically the same controller or gateway. When a tag or code is not
known to the Mini Keypad RFiD/Z-Wave, it will send an unsolicited
report to the devices in its association group with the UID 0x00. The
value in this message can be used to configure new tags.
NOTE: Code length must be 4 to 10 ASCII digits.
CLASS: 0X86 COMMAND_CLASS_VERSION
This Command Class is used to obtain information about the Mini
Keypad RFiD/Z-Wave. The Z-Wave library type, the Z-Wave protocol
version and the application version will be reported.
CLASS: 0X72 COMMAND_CLASS_
MANUFACTURER_SPECIFIC_V2
This will report information about the manufacturer. This product
will contain the manufacturer ID. Manufacturer ID is 0x97, the ID of
this product is 0x31. This command class can be used to request the
www.zipato.com 01
