Summary of Contents for OMT MFN-OTPT00100

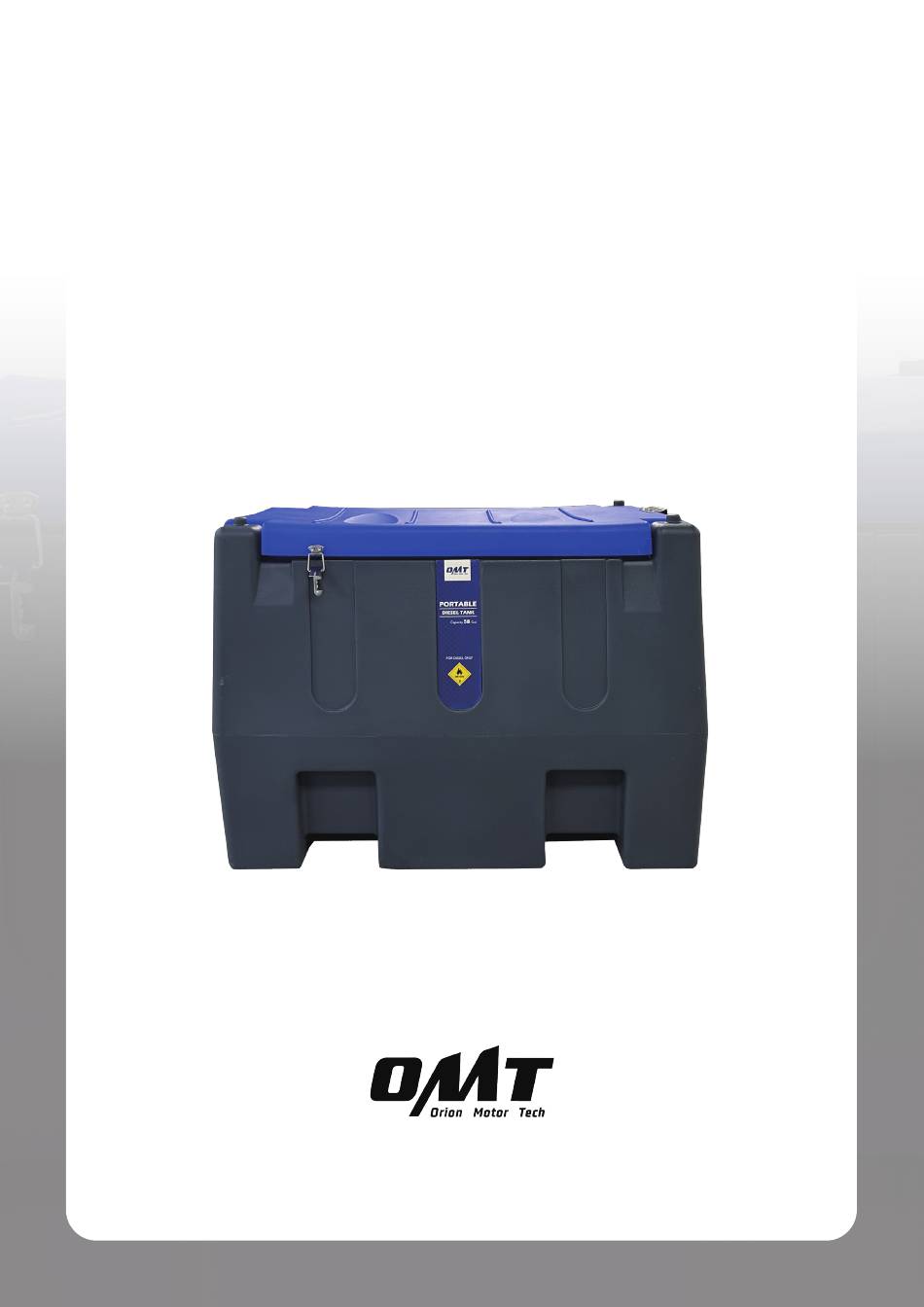

- Page 1 V20240117 Diesel Tank with Pump User Manual Read Carefully Before Use Keep for Future Reference...
- Page 2 IT IS THE TANK OWNER’S RESPONSIBILITY TO DETERMINE WHAT CODES AND REGULATIONS TO FOLLOW IN YOUR LOCAL AREA Orion Motor (OMT) assumes no responsibility for any errors that may appear in this manual and shall not be liable under any circumstances for incidental, consequential or punitive damages in connection with or arising from the use of this manual.
-
Page 3: Safety Information
Safety Information Symbol Guide The following symbols and safety signal words are used in this manual. DO obey the accomplishing messages to avoid possible injury or death. Indicates a hazardous situation that, if not avoided, will result in death or serious injury. - Page 4 Safety Information • NEVER wind, twist, stamp on, or yank at diesel hose. Check the hose for leakage before each use. Do not resume use unless all leakages have been addressed. NEVER leave the tank unattended while refueling is in process. •...
-
Page 5: Fire Safety
Safety Information equipment. NEVER wind, twist, stamp on, or yank at the clamp cables. • • DO NOT attempt to fix the pump if it stopped working. DO NOT resume use unless the problem has been addressed. • Do not attach the clamps when your hands are wet. Fire Safety •... -
Page 6: Product Diagram
Product Diagram Diesel Level Meter Fill Port Plug Hose Port (Spare) Clamps Diesel Gun Oil Filter Pump Power Button Latch Pump Cover Diesel Gun Holder Hose Port... - Page 7 Assembly Preparation 1. Move the tank to where it will be used. 2. Unpack the tank, being sure the tank will be at its upright position. 3. Lift out the tank, putting away the package for possible after-sell service. Assembling the Diesel Gun 1.
-
Page 8: Operation
Operation Airtightness Check Warning! DO run a thorough airtightness check prior to filling the tank with diesel. Thereafter, check the airtightness before each use. Initial Check 1. Prepare a basin of soapy water. Remember to completely dry your hands. 2. Turn the fill plug (J) and diesel level meter (I) tight. 3. -
Page 9: Filling The Tank
Operation 7. Check that no bubble is forming on the connections. If any: a. Dry your hands completely. b. Turn off the pump (D). c. Fix the leakage either by replacing the O-rings where bubbles were forming or tightening the connection. d. - Page 10 Operation Remove the diesel gun (A) from its holder by pulling at the handle. Insert the nozzle into the fill port of the equipment that needs refueling. Press the pump power button. Squeeze the black lever on the diesel gun. If you want to free your hand holding the lever and handle, set the hold-open latch to fixate the lever.
-
Page 11: Maintenance
Maintenance • Check the airtightness of all connections before each use. • Periodically check the pump’s cable for breakage. If any damage noticed, have it replaced by a certified technician. • Clean the surfaces tainted by diesel after each use. •... - Page 12 Contact Us Thank you for choosing our products! If you have any questions or comments, contact us at support@orionmotortech.com and we'll resolve your issue ASAP! For a .pdf copy of the latest version of these instructions, use the appropriate app on your smartphone to scan the QR code to the right.
