Summary of Contents for HARGASSNER Loxone

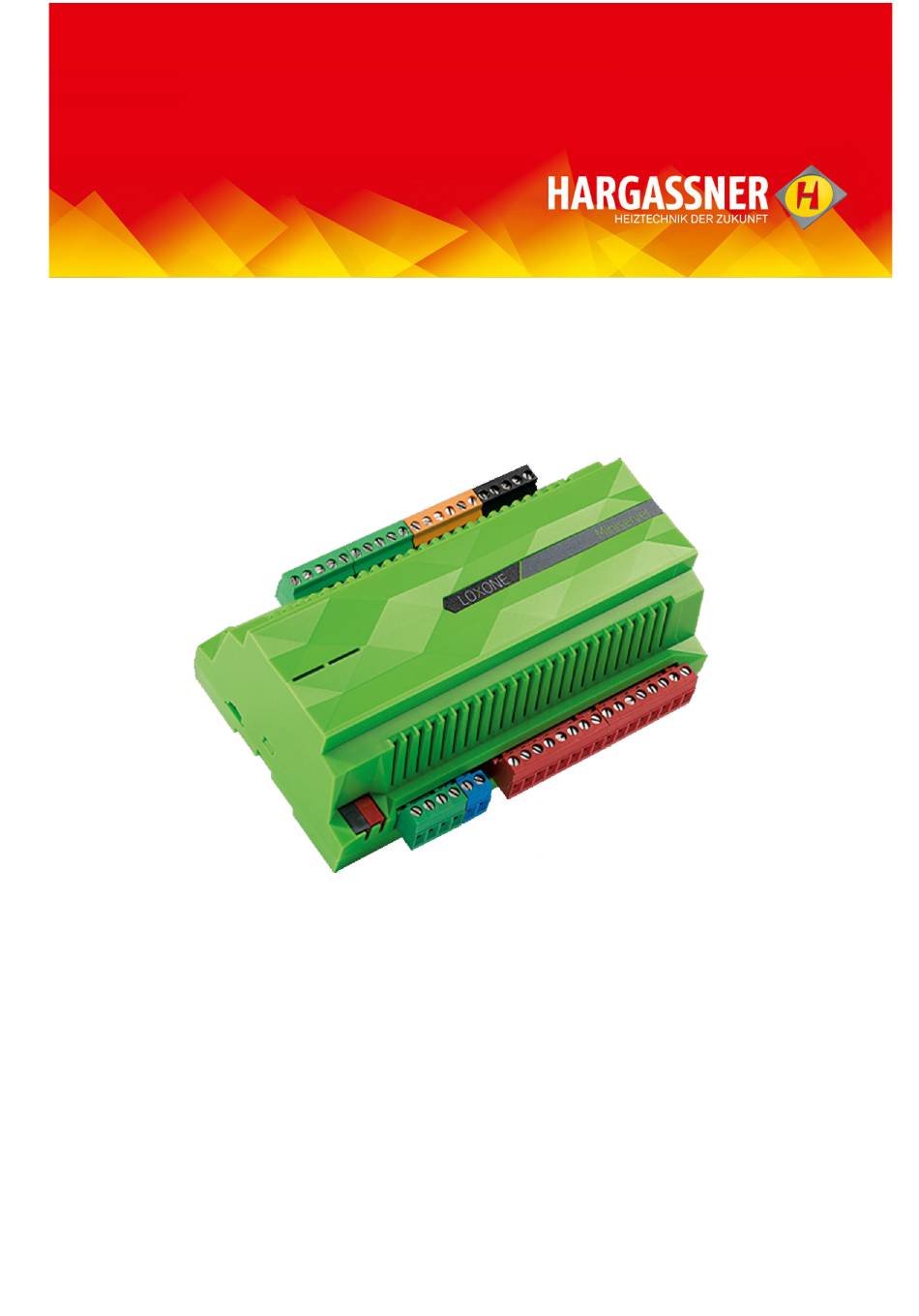

- Page 1 I n s t a l l a t i o n m a n u a l L o x o n e Follow and store this manual HARGASSNER Ges mbH A 4952 Weng OÖ Tel.: +43/7723/5274-0 Fax.: +43/7723/5274-5 - V04 07/2021 - 11059737 office@hargassner.at...
-
Page 2: Table Of Contents
2.3 Connection to the heat circuit controller (HKR) - optional... . . 4 2.4 Connection in combination with the Hargassner Internet gateway ..4 3 Communication ......... 5 4 Parametrisation . -
Page 3: General
General Loxone is a supplier of control equipment for home automation. An entire home (e.g. lighting, shading, heating, etc.) is centrally controlled via a Miniserver. This means that smart single-room control is made easy with Loxone. Precondition: Each room must be equipped with Loxone-Standards. With Loxone you can look at current values as well as operation modes, errors, etc. -
Page 4: Connection To The Heat Circuit Controller (Hkr) - Optional
Connect the RJ45 plug at the second end of the cable to the Internet gateway Connection to the Internet gateway Connection to the boiler control panel Connection to the network HARGASSNER Heating technology for Biomass A 4952 Weng OÖ Tel.: +43/7723/5274-0 Fax: +43/7723/5274-5 office@hargassner.at... -
Page 5: Communication
The address <6499> must be scanned every 10 seconds using the Loxone control unit, whereby the boiler control unit detects any possible server failures and can issue a warning if necessary. If there is no signal from Loxone within a set time (parameter Z1b), an error is given. IO address... -
Page 6: Parametrisation
Loxone dongle (μSD card / ID card) when Loxone is selected on the smart home control unit. Loxone monitors the room or HWT temperature and sends the boiler a set temperature for the respective heating component. -
Page 7: Loading Data From The Control Unit
Select Generate Loxone info Data points will be saved on the SD card. • Analogue channels Generate Loxone info • Digital channels • Parameters Back HARGASSNER Heating technology for Biomass A 4952 Weng OÖ Tel.: +43/7723/5274-0 Fax: +43/7723/5274-5 office@hargassner.at... - Page 8 Hargassner-Location Hargassner distribution partner AUSTRIA GERMANY HARGASSNER Ges mbH HARGASSNER DE GmbH Anton Hargassner Strasse 1 Heraklithstraße 10a A-4952 Weng D-84359 Simbach/Inn Tel. +43 (0) 77 23 / 52 74 Tel. +43 (0) 77 23 / 52 74 Fax +43 (0) 77 23 / 52 74 - 5 Fax +43 (0) 77 23 / 52 74 - 5 hargassner.com...
