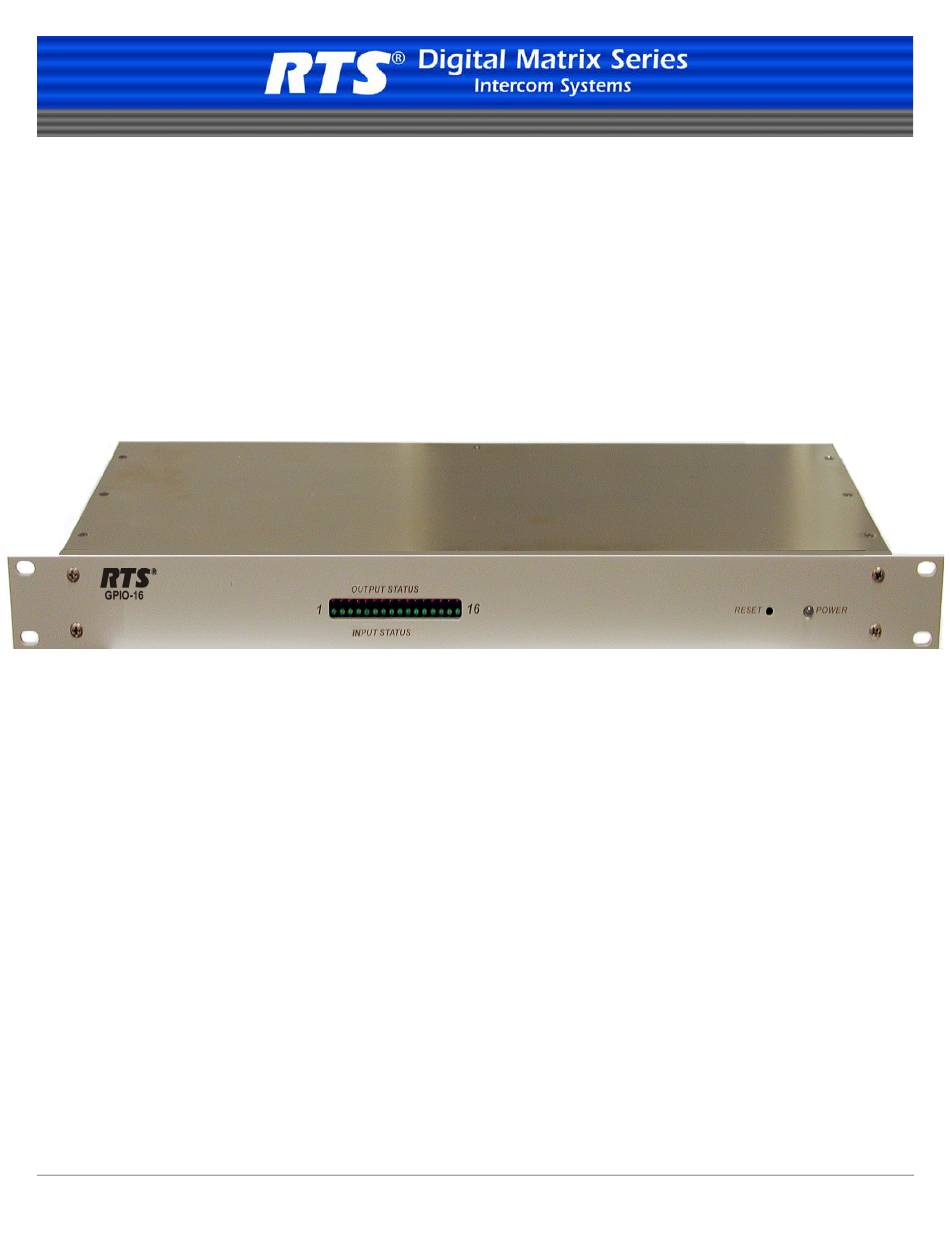

- Page 1 Model GPIO-16 General Purpose Input Output Frame User Manual upto and including version 0.0.2 9350-7842-000 Rev C 02/2008...
- Page 2 The product information and design disclosed herein were originated by All shipments of product should be made via UPS Ground, prepaid (you and are the property of Telex Communications, Inc. Telex reserves all may request from Factory Service a different shipment method). Any patent, proprietary design, manufacturing, reproduction, use and sales shipment upgrades will be paid by the customer.
-
Page 3: Table Of Contents
Table Contents DESCRIPTION AND SPECIFICATIONS ....................3 Introduction ................................3 Description ................................3 Theory of Operation ..............................3 Reference View ................................4 Specifications ................................5 ..................................5 ONNECTIONS Default Addresses for the RVON Product Line ......................6 INSTALLATION AND OPERATION ......................7 Installation .................................7 ....................................7 OUNTING Multi-drop Connections ............................9 GPIO-16 ADAM S ..............................9... -
Page 5: Description And Specifications
CHAPTER 1 Description and Specifications Introduction This manual describes the installation, programming, and operating procedures for the RTS Model GPIO-16 General Purpose Input Output Frame. GPIO-16 inputs and outputs are generally assigned using AZedit (intercom system configuration software). For more information on AZedit, see the AZedit User Manual (9350-7532-000). GPIO-16 (with Ethernet support) Firmware Requirements: AZeditVersion 3.3.0 MCII-eVersion 1.5.0... -
Page 6: Reference View
Reference View RESET STATUS INDICATORS POWER SWITCH INDICATOR GPIO-16 OUTPUT STATUS RESET POWER INPUT STATUS 100-240 VAC GENERAL GENERAL RS-485 RJ-45 DIP SWITCHES PURPOSE PURPOSE DATA ETHERNET INPUTS POWER OUTPUTS CONNECTOR GPIO-16 Front and Rear Panel Features FIGURE 1. Status Indicators - The top row of LEDs indicate the status of the outputs connected to the GPIO-16. -
Page 7: Specifications
Specifications OPTICALLY ISOLATED INPUT NUMBERS Power 100~240 VAC, 50/60Hz PIN NO CHAN DESC (dynamic switching) - Input + Input Dimensions 1RU high x 7” (178mm) deep - Input behind front panel + Input - Input General Purpose Inputs Type: Optically coupled Input Requirements: 5-15 VDC + Input - Input... -
Page 8: Default Addresses For The Rvon Product Line
Default Addresses for the RVON Product Line Default Addresses for the RVON Product Line TABLE 1. Product Default IP Address Default Subnet Mask RVON-I/O 192.168.0.1 255.255.0.0 RVON-8 192.168.0.2. 255.255.0.0 RVON-1 192.168.0.3 255.255.0.0 RVON-C 192.168.0.4 255.255.0.0 RVON-16 192.168.0.5 255.255.0.0 GPIO-16 192.168.0.6 255.255.0.0... -
Page 9: Installation And Operation
CHAPTER 2 Installation and Operation Installation DIP Switch Functions SW1-1: OPEN - Normal Operation (Default) CLOSED - Erase All Configuration SW1-2: OPEN - Normal Operation (Default) CLOSED - Ignore saved Master Controller IP Address SW1-3 OPEN - Ethernet Parameters are Configurable (Default) CLOSED - Locks Ethernet Parameter Configuration SW1-4 to SW1-7 Frame number/Polling ID (RS-485) - Page 10 GPI INPUT/ FRAME SW1-4 SW1-5 SW1-6 SW1-7 OUTPUT NUMBER NUMBERS Open Open Open Open 001-016 Closed Open Open Open 017-032 Open Closed Open Open 033-048 Closed Closed Open Open 049-064 Open Open Closed Open 065-080 Closed Open Closed Open 081-096 Open Closed Closed...
-
Page 11: Multi-Drop Connections
Open Open Closed Closed 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 CONNECTION TO INTERCOM SYSTEM XCP-ADAM-MC, J3 1-16 1-16 17-32 17-32 XCP-ADAM-MC Punch Punch Punch Punch ADAM CS, J902 Block Block Block Block ZEUS, J26... -
Page 12: Gpio-16 Frame Interconnections
DE-9S DE-9P DE-9P DE-9P (Female) (Male) (Male) (Male) TO ADAM CS, J902 TO: GPI/O-16, J2 TO XPC-ADAM-MC, J3 TO: GPI/O-16, J2 DE-9P DE-9P (Male) (Male) TO: PAP-940, TO: PAP-940, PAP-951, OR PAP-952 PAP-951, OR PAP-952 DE-9P DE-9P (Male) (Male) TO: PAP-950-50 TO: PAP-950-50 ADAM CS Y-cable FIGURE 4. -
Page 13: Assigning The Gpio-16 Inputs And Outputs
RELAY CONTACT RELAY OUTPUT NUMBERS PIN NUMBERS FRAMES 24/8 GPIO-16 Relay Output Connector (J5) Pinouts TABLE 3. a. Dependent on GPIO-16 DIP Switch SW1 settings for Input/Output range as summarized in Table 2 on page 8. b. The relay contacts are rated for 0.5A at 120 VAC; 1A at 24 VDC; 0.3A at 60 VDC Assigning the GPIO-16 Inputs and Outputs Using AZedit Assign the GPIs by using the GPI Input setup screen. -
Page 14: Gpio-16 Frame Reset
When using multiple GPIO-16 frames, the status of the first 16 GPOs and GPIs will be indicated by the status indicators on the first GPIO-16. The status indicators on the second GPIO-16 will indicate status of outputs and inputs 17 to 32 and so forth as summarized in Table 3 on page 11. -
Page 15: Gpio-16 And Azedit
CHAPTER 3 GPIO-16 and AZedit Configuring the GPIO-16 using AZedit NOTE: Verify you are using the following versions: GPIO-16Version 0.0.1 or later MCII-eVersion 1.18.0 or later PeriphII-eVersion 1.18.0 or later DBXVersion 1.18.0 or later AZeditVersion 3.3.0 or later NOTE: The GPIO-16 works with the standard Master Controller in serial mode only. While using the standard master controller, the GPIO-16 RUNS exactly like a UIO-256. - Page 16 In the IP Address field, enter the IP Address of the GPIO-16. Or use the browse button to browse to the IP Address of the GPIO-16 device. Once the IP Address field is populated, the GPIO-16 Configuration fields automatically populate. NOTE: The browse button, , is used to display the IP Addresses of all the GPIO-16 devices on the local network...
- Page 17 In the Description field, enter a unique description of the GPIO-16 device, if desired. In the New IP Address field, enter the new IP Address of the GPIO-16 device, if applicable. In the Network Mask field, enter the network mask of the GPIO-16 device, if applicable. In the Default Gateway field, enter the default gateway address of the GPIO-16 device, if applicable.
-
Page 18: Assign The Gpio-16 Device To The Relay Group In Azedit
NOTE: From the configuration window, you can browse ANY GPIO-16 device (on the local network, that can respond to a broadcast). However, in the GPIO-16 system window (see “Configuring the GPIO-16 using AZedit” on page 13), you can check or uncheck the Use Ethernet option, and enter a GPIO-16 IP Address. If you use the browse button in this window, you only see the GPIO-16 devices used by the current intercom system (for example, only those not already configured to talk to another intercom, or those that have a DIP switch set allowing the current intercom to take control of them if they are configured for another intercom but are not... - Page 19 Right-click the GPIO-16 you want to upgrade. A popup menu appears. From the popup menu, select Download Firmware. The Download Firmware window appears. Navigate to the firmware file (typically a .hex file) you want download to the device and click Open. The Download Device Firmware window appears.
- Page 20 Click Begin Download. The firmware download begins. Once the firmware has finished, a message appears on the screen. The download may take a few minutes more after the message appears. Click OK. Verify the version upgrade in the GPIO-16 Version Information window is correct.
-
Page 21: Notes
Notes...
