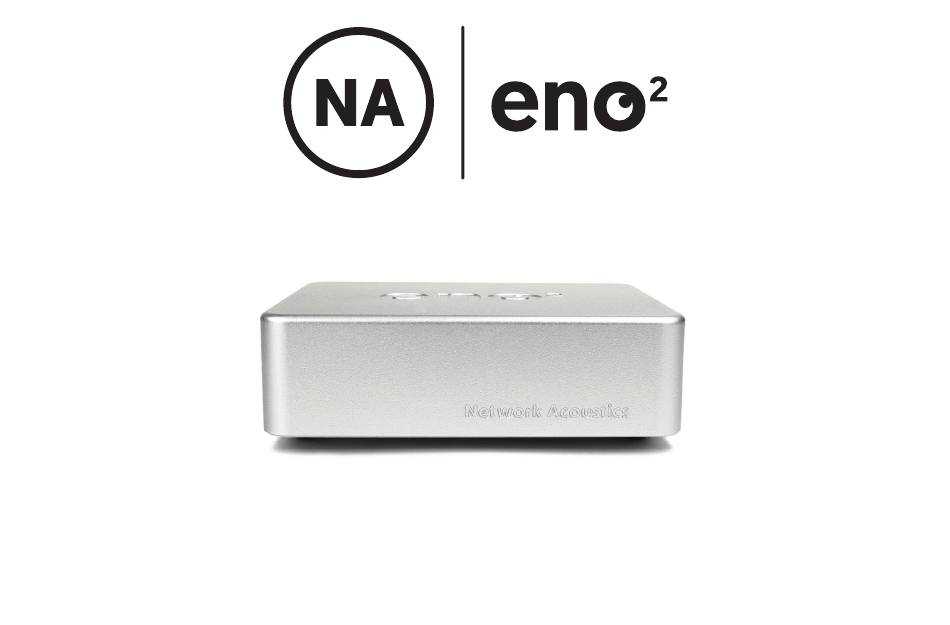

- Page 1 1Gb/s Ethernet Filter & Streaming System Quick Start User Guide...
- Page 2 Thank you for choosing This quick start guide will provide you with step-by-step instructions on how to connect, get started and use your Ethernet Filter. If you have any questions please contact us via info@networkacoustics.com and we will be happy to assist you.
- Page 3 Contents Ethernet Filter Basic & Optimum Set up Streaming System Basic & Optimum Set up Using Additional Ethernet Filters & Streaming Cables Additional Information Support...
-
Page 4: Basic Setup
Ethernet Filter BASIC SET UP Power down your streaming device. Connect the Ethernet Filter and Streaming Cable as illustrated, and please note Streaming Cables are directional. Insert the connector engraved with the arrow into the input of your streaming device, and Router Streamer Ethernet Filter... - Page 5 Streaming System BASIC SET UP Power down your streaming device. Connect the Ethernet Filter and Streaming Cables as illustrated, and please note that Streaming Cables are directional. 1.5m Streaming Cable - insert the connector engraved with an arrow into the input of the Ethernet Filter, and the other end to the router or switch.
- Page 6 Using Additional Ethernet Filters & Streaming Cables Router Ethernet Filter Streaming Cable 1.5m Streaming Cable 0.75m Ethernet Filter Music Streamer/DAC Music Server/ Streaming Cable Ethernet Filter Streaming Cable Ethernet Switch Streaming Cable Streaming Cable ROON Core 1.5m 0.75m 1.5m 0.75m You may want to consider exploring the use of additional Ethernet Filters and Streaming Cables between your Music By connecting additional filters and cables as shown above, you can achieve significant incremental improvements in...
-
Page 7: Additional Information
Additional Information Basic vs Optimum Set Ups is designed to work at 1Gb/s As shown in diagrams on the previous pages, the basic set up will bring improvements in sound quality, but 1Gb/s Ethernet Filter and Streaming Cables have been meticulously designed to take advantage of the for optimum performance we recommend the installation of an Ethernet Switch (ideally one designed for high benefits offered by a 1Gb/s connection. - Page 8 Additional Information Running-In Ethernet Filter and Streaming Cable both require around 150-200 hours running-in with data constantly flowing through. The running-in process requires your Streaming Device, Router, and/or Ethernet Switch to be powered on and the Streamer to be playing music. Running-in can be system dependent, but as a guide during the first few hours these products can sound overly smooth and a little dulled, then after around 20-30 hours the sound will begin to open up and become more resolving and dynamic, all of which will continue to improve until they reach peak performance at around...
- Page 9 networkacoustics.com...
