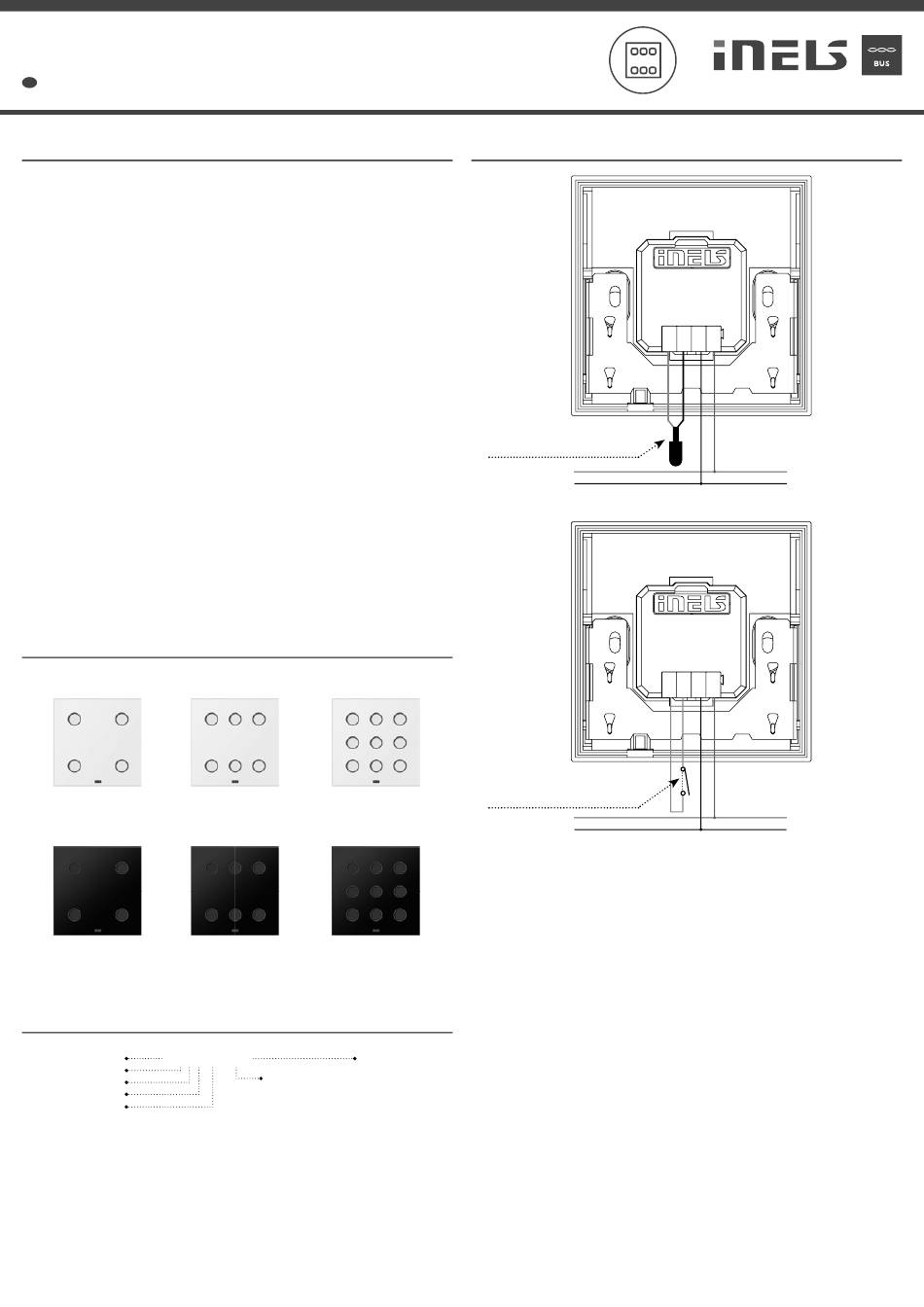

elco iNels ZSB3-40 Manual

ZSB3-40, ZSB3-60, ZSB3-90
Glass switch buttons
EN
Characteristics
• Glass switch buttons ZSB3-40/XX, ZSB3-60/XX and ZSB3-90/XX are part of a com-
prehensive range of iNELS control units and can be advantageously used in all
projects.
• ZSB3 comes with premium glass plates in the white and black.
• ZSB3-40/XX is equipped with four, ZSB3-60/XX six and ZSB3-90/XX nine touch
buttons whose functions can easily modify by the software.
• The glass switch button are equipped with an integrated temperature sensor. It is
also equipped with analog-to-digital input (AIN/DIN), which can be used to con-
nect potential-free contact or external temperature sensor TC/TZ (for example
temperature measurement of the floor).
• Advantages over conventional switches/buttons are saving space, signalling the
state of any system output, the ability to measure temperature as well as the abil-
ity to connect external buttons or detectors.
• Each button can control any actuator (appliance) in the system. Also, you can as-
sign each button a different function or macro (set of functions). It is therefore
possible to use one button to control several appliances at once.
• Glass switch button is a design component of the iNELS system and is available
in white and black.
• There is an option upon request to engrave text for each button, further enhanc-
ing customization possibilities.
• Individual buttons can be illuminated in white.
• ZSB3-40/XX, ZSB3-60/XX and ZSB3-90/XX are designed for mounting into an in-
stallation box.
• All versions are in the size of the standard module (94x94 mm).
Variants
ZSB3- XX/WW = white glass + white plastic button
ZSB3- XX/BB = black glass + black plastic button
Terminology
Z S B3 - 9 0/ x x
material glass/metal
switch
button
iNELS3
number of buttons
Button options
B – Black plastic
Plate options
W – White plastic
B – Black glass
W – White glass
Connection
thermo sensors TC/TZ
1x input for free potential contacts
(button, motion sensor, etc.)
