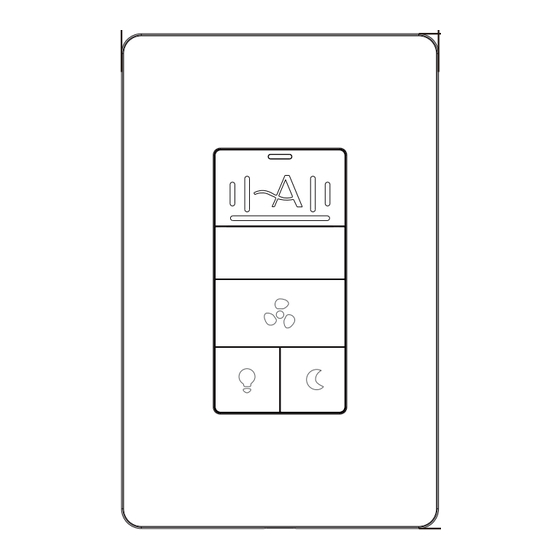

Akicon AK-SW-FLHT User Manual

Humidity Switch User Guide
Questions, problems, missing parts? Before returning to the store,
Specifications
Type Humidity Switch
Model AK-SW-FLHT
Rated Voltage 100-240VAC 50/60Hz
Fan 2(2)A
LED Max 50W each way
Product Size 4.92*3.15*1.48 Inch
Humidity Range 50%-90%
Time Range 5-60 Minutes
Operation
1. Open the cover plate to set the humidity and time values.
2. When humidity and/or time is set, please refer to the mode description in the table on the back of the page.
3. If humidity and time values are not set, you need to manually turn ON/OFF the fan.
LED Indicator
Light / Night Light - Red;
80 70
90
60
OFF 50
HUMIDITY(%)
Humidity & Time Setting
Removable cover plate
LED Light Switch
ON-OFF-ON circling to switch the fan's
color temperature within 2 seconds.

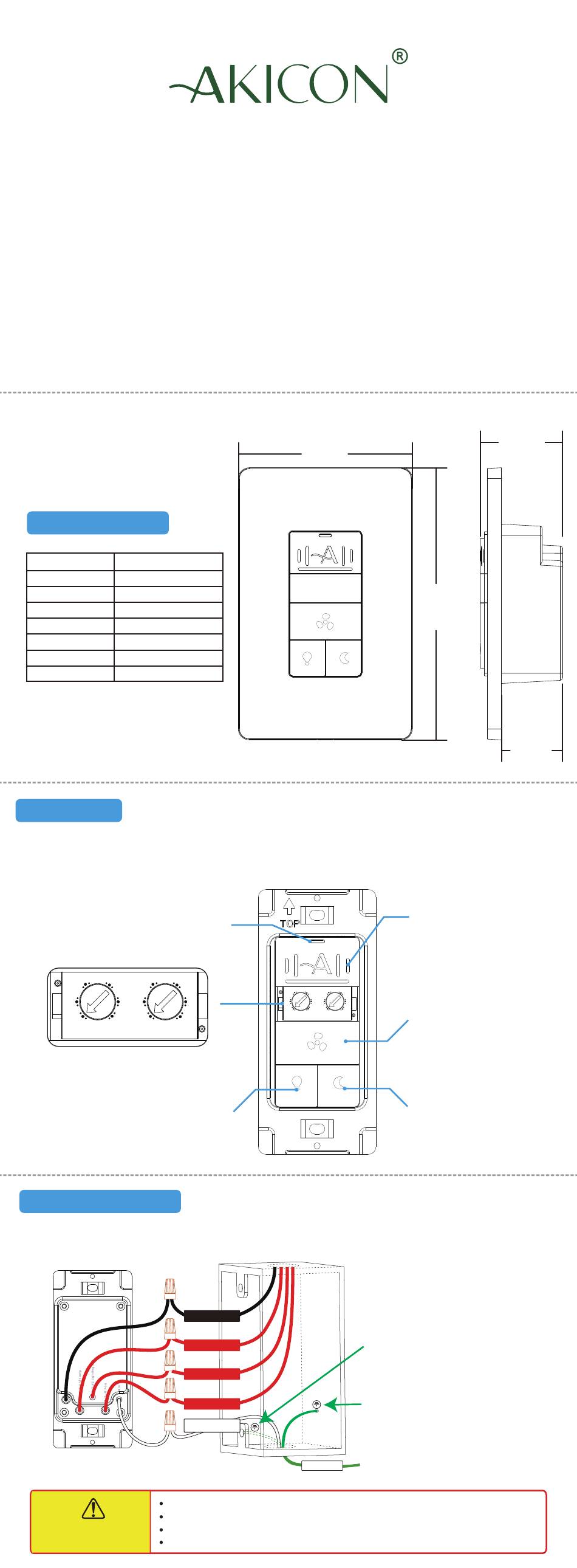

Wiring Diagram
Use wire-nuts to connect switch wires to your home wires according to remark
of switch wires. Confirm whether the wire are connected tightly
WARNING
Model No. AK-SW-FLHT
call AKICON Customer Service
8 a.m.-6 p.m.,EST, Monday-Friday
TOLL FREE: +1 (888) 828 2025
service@akiconshop.com
AKICONSHOP.COM
Fan - Blue;
Fan & Light - Green;
15 30
5 45
OFF 60
TIME(min)
LINE
Out1 Night Lamp
Out2 Lighting LED
Out3 Fan
Neutral Wire
Turn off power at circuit breaker before installation.
A neutral wire is needed to power the switch.
Use COPPER WIRE ONLY.
If you are not sure about any part of these instructions, consult an electrician.
(3.15 inch)
37.70 mm
80mm
80 70 15 30
90 60 5 45
OFF 50 OFF 60
HUMIDITY(%) TIME(min)
If the junction box is made of plastic,
you can follow the route indicated by
the green dashed line and use screws
to connect the ground wire.
If the junction box is made of metal,
you can follow the route indicated by
the green solid line and use screws
to connect the ground wire.
Ground Wire
(1.48 inch)
17.81 mm
37.8mm
(4.92 inch)
125mm
(1.10 inch)
13.24 mm 28 mm
Humidity Sensor
Automatically detect the
humidity level in the room
Fan Switch
Simply press the button
to turn on or off manually
Night Light Switch
Bring you and your family safety
and convenience at night.
