Artisan Home Furniture TB-135 User Manual

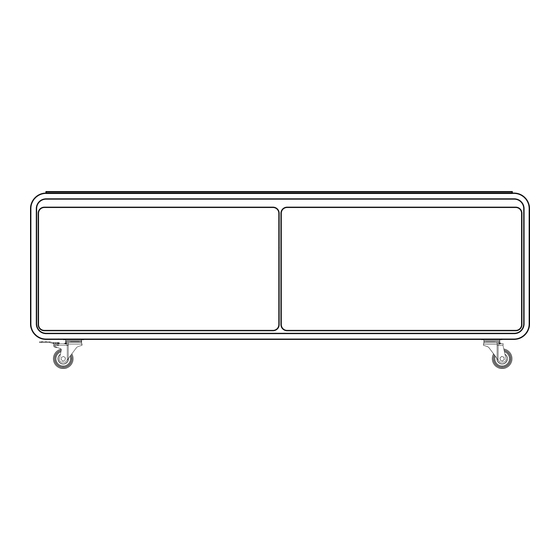

Coffee table fridge with all-in-one refrigerator drawers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
COFFEE TABLE FRIDGE WITH
ALL-IN-ONE REFRIGERATOR DRAWERS
USER GUIDE
In case you might need to return this product, please keep all the packaging materials and
return only in its original packaging and in excellent condition.
MODE# TB-135

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TB-135 and is the answer not in the manual?

Questions and answers

Summary of Contents for Artisan Home Furniture TB-135

  • Page 1 MODE# TB-135 COFFEE TABLE FRIDGE WITH ALL-IN-ONE REFRIGERATOR DRAWERS USER GUIDE In case you might need to return this product, please keep all the packaging materials and return only in its original packaging and in excellent condition.

  • Page 4: Table Of Contents

    Parts & features Specifications Packing list Precaution before use - unpacking Notice Installing the power cord Functions and features User guide Daily maintenance Delivery and outage Non-failure Trouble shooting...

  • Page 5: Parts & Features

    PARTS & FEATURES Tempered Glass Top Wireless Charger Control Panel TYPE-C PET Tray Left Refrigerator Drawer Partition Right Refrigerator Drawer Water Inlet 110V Socket Bluetooth Speaker Wheel Power Overload Protection Power Interface Back Board Wheel with locking 01 / 19...

  • Page 6: Specifications

    SPECIFICATIONS 30.43" 54.21" 19.88" Consumption 160kWh/year Packing Size 55.9" x 32.3" x 22.4" Noise Level 36db Temp Control Electronic Control Voltage 110V-120V/60HZ Refrigeration Mode Compressor Net Weight 137.79 lbs Refrige rant/Wt R600a/25g Gross Weight 162.04 lbs Volume 70L+65L Controlling Electronic Control Left Drawer Temp Range 37°F~46°F Product Dimensions...

  • Page 7: Precaution Before Use - Unpacking

    PRECAUTION BEFORE USE - UNPACKING For better heat dissipation, remove the foam base, peel off the adhesive tape and the transparent film from the surface of the table. Fail to do so may result in personal injury or property damage. ENSURE ALL ACCESSORIES ARE INCLUDED ACCORDING TO THE PACKING LIST IN PAGE 2.

  • Page 8: Notice

    NOTICE ELECTRIC WARNINGS 1.After powering on the unit, please install the cable cover to prevent any damage of the cable. Do not step on the cable, otherwise it will raise the risk for electric leakage. 2.The power cord should be kept in firm contact with the power source. Fair to do so may result in property damage, personal injury or fire.
  • Page 9 WIRELESS CHARGER 1.If the device is equipped with a thick protective shell or a metal protective shell, the charging efficiency may be affected. Remove the shell and try again. 2.The wireless charger may generate heat when charging. If the battery overheats, the software may limit the charging.

  • Page 10: Installing The Power Cord

    INSTALLING THE POWER CORD GROUNDING INSTRUCTIONS This appliance must be plugged into a grounded socket. The power cord that is supplied with the appliance contains the appropriate grounding conductor and grounding plug. The plug must be inserted into a outlet that has been grounded in accordance with the existing local codes and ordinances.

  • Page 11: Functions And Features

    FUNCTION AND FEATURES Left Refrigerator Drawer 37.4°F~46.4°F Right Refrigerator Drawer 42.8°F~53.6°F REFRIGERATOR DRAWERS The Smart Coffee table is designed with two drawers that can be independently controlled for the temperatures. Each refrigerator drawer comes with two partitions and one tray to organize all your favorite beverages and snacks.
  • Page 12 PARTITION STORAGE To make better use of the storage space, there are two partitions and a tray in the refrigerator drawer; which facilitate the classification and storage of food. REMOVABLE DOOR SEAL The removable door seal will ensure the long-term sealing of the Smart Coffee Table, making it easy for daily cleaning and maintenance, and reducing energy consumption.

  • Page 13: User Guide

    USER GUIDE REFRIGERATOR DRAWER NOTE 1.Fill this refrigerator only with fresh food. 2.Do not store food that requires the refrigerator to outperform its designed temperature range. 3.Do not store food while it is hot. This would drive up the drawer temperature, thus affecting all other items inside.
  • Page 14 CONTROL PANEL INSTRUCTION The display area is divided into two parts. The refrigerator control area is above the horizontal line, the speaker operation area is below the horizontal line. Double-click the "Refri Unlock" button on the refrigerator, allowing you to use other fridge buttons. Double-click the speaker unlock button then you can use other speaker functions.
  • Page 15 REFRIGERATOR OPERATION Left Door Display Area Right Door Light Circle Eco Mode Refri.Unlock Temp.Adjust Temp./Mode Display Temp.Adjust After the initial power-up, the refrigerator automatically enters unlock mode. If there is no operation in 10 s, the buttons will be locked REFRIGERATOR UNLOCK BUTTON If there is no operation in 10s, the whole board will lock and all digital lights will turn off.
  • Page 16 SPEAKER INSTRUCTION Display Start Mute Speaker Switch Light Circle Volume Speaker Unlock Music Mute Volume Lamp Sound Play/Stop Switch Down Switch Effects SPEAKER In off mode, click the unlock button“ ”, and the buzzer rings and the white aperture will be on, which means the speaker is switched on.
  • Page 17 SPEAKER OFF Press and hold “ ” for 6s, during which,the nixie tube will display OFF for 1 sand the circle will light up in 3s.The aperture nixie tube and the speaker will turn off,and there will be a prompt note when the speaker turn off. SPEAKER LOCKING If there is no operation for 10s, the audio module will automatically lock down.
  • Page 18 Voltage 12V lnput Output 15W (max) Sensing Distance ≤4mm Work Frequency 105K-205K Hz Work Temperature 14°F-149°F Work Humidity 10%RH-75%RH USB-A AND TYPE CCHARGING There are two USB-A and one TYPE C chargers that can connect devices to the speaker and charge device.

  • Page 19: Daily Maintenance

    DAILY MAINTENANCE CLEANING Clean the Smart Coffee Table regularly to avoid dust accumula- tion. Wipe the surface of the table with the microfiber cloth. Do not store expired food in the drawers. 1.Before cleaning the Smart Coffee Table, please make sure to turn off the power and remove the plug.
  • Page 20 DISASSEMBLY AND CLEANING OF THE REFRIGERATOR DRAWER Before dismantling the refrigerator drawer, please take out the PET tray, drawer partition and all items inside from the refrigerator. Fully pull the door and the drawer, lift up the whole drawer and pull out the sets.

  • Page 21: Delivery And Outage

    DELIVERY AND OUTAGE TRANSPORTATION 1.Unplug the product. 2.Take out all the items inside the Smart Coffee Table. 3.Use adhesive tape to secure the partition and PET tray inside the Smart Coffee Table. 4.Close the drawer and use adhesive tape to secure it. Do not lay down the refrigerator at any time.

  • Page 22: Non-Failure

    NON-FAILURE Foggy condensation on the surface: In rainy season with high humidity, condensation may occur on the surface of the refrigerator, which is not a malfunction, please dry it with a clean cloth. “hissing”sound occur:This is the flow water sound of the refrigerate, which is normal phenomenon. Compressor can not be started: The voltage is too low, please stop powering on the refrigerator and wait the voltage to get back to normal.

  • Page 23: Trouble Shooting

    TROUBLE SHOOTING Fault Causes Solutions Power light is on, compressor is Power Voltage is lower working but making Stop powering on the "humming" sound. than 90V. refrigerator and wait the voltage to get Compressor starts but stops after Power voltage is higher back to normal.
