Thor Broadcast H-4HD-EMH Quick Start Manual

Hide thumbs Also See for H-4HD-EMH:

Download this manual

H-4HD-EMH

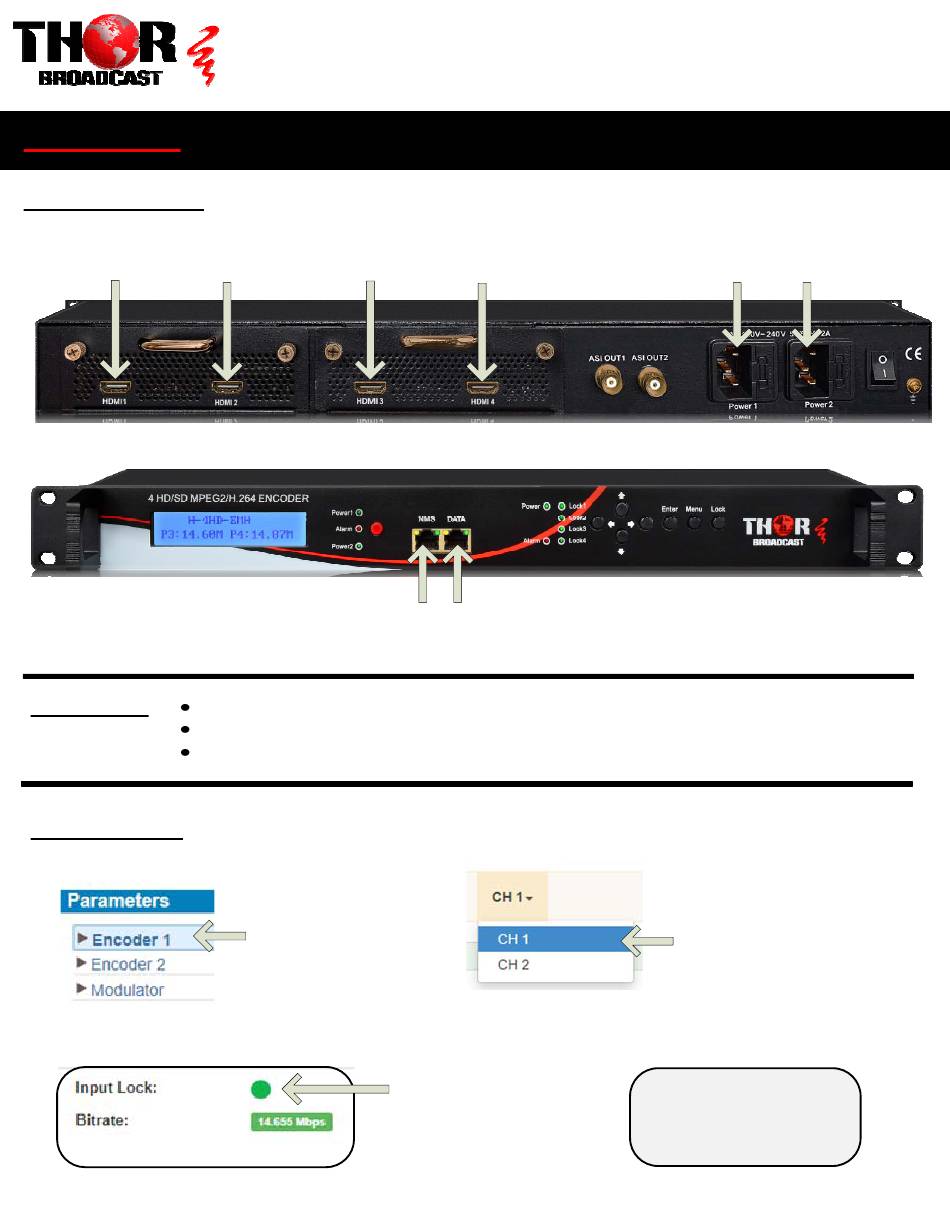

Step 1: Connections

HDMI 1-1

HDMI 1-2

Step 2: Login

Step 3: Encoders

https://thorbroadcast.com

HDMI 2-1

Connect the NMS port to your PC using an ethernet cable

Open web browser and go to http://192.168.0.136

1). Select

"Encoder 1"

from the main

800-521-8467

HDMI 2-2

NMS DATA

3). Input Lock

indicator must be

green

sales@thorfiber.com

Quick Setup Guide

Connect Power

2). Select Channel

Repeat these steps as

neccesary for CH1/CH2

and "Encoder 2"

Need help?

Do you have a question about the H-4HD-EMH and is the answer not in the manual?

Page 1 800-521-8467 sales@thorfiber.com H-4HD-EMH Quick Setup Guide Step 1: Connections HDMI 1-1 HDMI 1-2 HDMI 2-1 HDMI 2-2 Connect Power NMS DATA Connect the NMS port to your PC using an ethernet cable Step 2: Login Open web browser and go to http://192.168.0.136...
Page 2 Step 3: TS Config 1). Select “TS Config” from the main menu 2). Select Encoder/Channel 6). Program will appear under output, click program name for more 4). Check the box of options discovered program 5). Click “ ” button to assign selected program to output 3).
Page 3 Step 4: Output Settings Select “Output Settings” from the main menu Select top pencil icon to edit all Check box to Enable Channel Status lights Select pencil must be green icon on the same line to edit individually Connect to the stream using the appropriate IP and Port Number Example: udp://@224.2.2.2:3000...
Page 4 YOU MUST SAVE CONFIGURATION OR CHANGES WILL BE LOST AFTER RESTARTING THE UNIT Select “Configuration” from the main menu Click “Save config” Scan for more info: Confirmation message will appear briefly until saving is complete. H-4HD-EMH Quick Setup Guide https://thorbroadcast.com 800-521-8467 sales@thorfiber.com...
