Summary of Contents for Acer Predator Connect D5

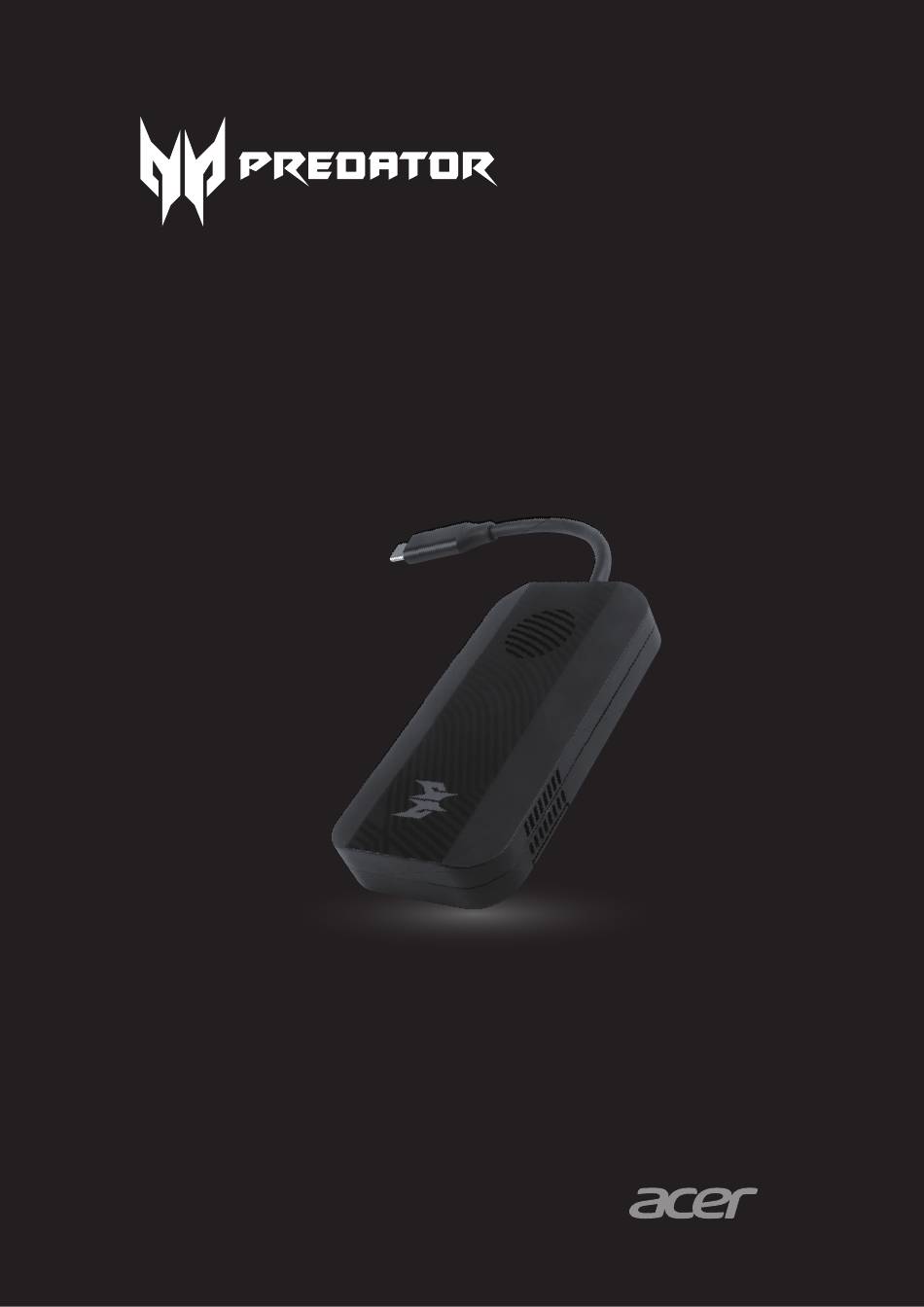

- Page 1 Predator Connect D5 5G Dongle User’s Manual...
-
Page 2: Table Of Contents
Contents Safety Precautions ..................3 Introduction ...................... 4 Package Content ..................4 Product Overview ..................4 LED Behaviors ................... 5 Initial Setup ...................... 6 Installing Connection Manager Software ........... 6 Making Connection ...................11 Using the Software ..................12 Launch Software and Log In ..............12 Viewing Status .................. -
Page 3: Safety Precautions
Safety Precautions This section outlines the safety precautions associated with using the device. Please read the safety and operation instructions before using your device. Keep these instructions safe for future reference. • Do not disassemble the device or operate the device under abnormal conditions. -
Page 4: Introduction
Introduction Using this Predator Connect D5 5G dongle, you can take your gaming on the go and connect from anywhere with 5G – reaching peak throughput speeds of up to 2.7Gbps SA and 2.5Gbps NSA. Note: • 5G LTE speed and availability vary by area. Check your telecommunications provider for details. -
Page 5: Led Behaviors
LED Behaviors The status LED indicates the device status. LED Color Status Description Solid RED, and then the LED is Invalid SIM card off after 3 minutes if no network. Solid RED, and then the LED is No coverage off after 3 minutes if no network. Blinking (once per second) No SIM card Yellow... -
Page 6: Initial Setup
• Ensure that the USB port supports 3A current output. If the USB power is inadequate, the below message will appear on the screen. • You may also download the software from ACER Support website (https://www.acer.com/ac/en/US/content/support). From the Category drop down menu, select “Smart Devices” “Predator... - Page 7 2. Launch Windows File Manager, locate and double-click the SETUP icon in the virtual CD-ROM drive. 3. The Setup Wizard appears. Click Next to proceed with the software installation.
- Page 8 4. Read the license terms. Then click I Agree to accept the terms of the agreement. 5. Select the software components you want to insall. Then click Next to continue.
- Page 9 6. Specify the path where you want install the software. Then click Install to start installing the software. The software installation may take a few minutes.
- Page 10 7. After the installation process is complete, click Finish to exit the Setup Wizard. The software shortcut icon ( ) appears on the desktop.
-
Page 11: Making Connection
Making Connection 1. Open the SIM card door. Then insert a valid 5G/4G nano SIM card into the SIM card slot until it clicks into place. Note: • Ensure that the nano SIM card is properly aligned with the notch as shown in the above illustration. -
Page 12: Using The Software
Using the Software Launch Software and Log In Double-click the software shortcut icon ( ) to launch the software. When the Administrator Login screen appears, enter the password and click Log in. Note: • The default password is “admin”. To change the password, refer to page •... -
Page 13: Viewing Status
Viewing Status By default, you will enter the Status page once successfully logged in. In this page, you can view the information regarding your network connection status such as SIM card status, connection status, network name, network type, and more. You can also view the monthly data usage related information. -
Page 14: Configuring Network Settings
Configuring Network Settings Click the Network settings tab to configure the network related settings including network connection, profile management, and network settings. Network Connection In this page, you can configure the following settings: • Connection mode: Specify the connection mode. Set the setting to Auto to automatically connect to the network when the device is on. -
Page 15: Profile Management
Profile Management In this page, you can manually set up your SIM’s APN (Access Point Name) profile management. In most circumstances, this setting is automatically set. To set a new profile, do the following: 1. Click New and enter the profile name. Then click OK. 2. -
Page 16: Network Settings
Network Settings In this page, you can specify the network mode (Auto(5G NSA/4G), Auto(5G SA/NSA/4G), 5G SA only, or 4G only) and enable the automatic network search mode. Click Apply to save the settings. Managing SIM Card Click the SIM card tab to configure the SIM card related settings including SIM PIN management, SMS inbox, SMS forwarding, and data usage. -
Page 17: Sms Inbox
SMS Inbox In this page, you can view SMS messages that are sent to the phone number of the installed SIM card in your dongle. • To read the message, double-click the message that you want to read. If you want to reply the message, enter your message in the “Reply to” box and click Send to send the message. - Page 18 • To delete the unwanted message(s), click on the checkbox next to the message that you want to delete and click Delete. A confirmation dialog box will appear, click OK to confirm the deletion. Note: • You cannot retrieve the deleted SMS. •...
-
Page 19: Sms Forwarding
SMS Forwarding In this page, you can set SMS messages that are received by the installed SIM card of your dongle to be forwarded to another phone number such as the phone number of your personal mobile phone. • To forward the SMS, you have to enable the SMS forwarding to mobile phone option first by sliding the switch to the right. -
Page 20: Configuring System Settings
Configuring System Settings Click the System setting tab to configure the system related settings including viewing device information, device management, firmware update, and more. Device Information In this page, you can view your dongle information including device name, IMEI, SIM card phone number, serial number, firmware version, and software version. -
Page 21: System Time
System Time In this page, you can configure the system time. • To configure the system time, do the following: 1. Select the option that you want to configure. a. To change the time zone, click the drop down menu next to “current time zone”, and then select the desired time zone. -
Page 22: Backup And Restore Settings
Backup and Restore Settings In this page, you have options either to backup the current device settings or restore the saved configuration. • To backup the current device settings to your computer, do the following: 1. Click Backup. 2. Specify the location where to save the file. Then click Save. •... -
Page 23: Restart And Reset
Restart and Reset In this page, you have options either to reboot or reset the device. • To reboot the device, click Restart. A message will appear on the screen. Click OK to restart the device. • To reset the device to the factory default settings, click Reset. A confirmation message will appear on the screen. -
Page 24: Languages
Languages In this page, you can set the language of the software interface. Click Apply after you select the desired language. Software Update In this page, you have options either to update the device firmware or update the software. To check for updates, click Check new version. If there is an update version available, the system will automatically install the new firmware or software. -
Page 25: Installing Gtbooster Software
Installing GTBooster Software With GTBooster software, your laptop or PC will have abilities in the below list. • Hyper Routing: Users can route the internet traffic via Acer 5G Dongle, LAN, or Wi-Fi • Network Information • Wi-Fi Assist • Network Monitoring To download the software via Connection Manager software, do the following: 1. -
Page 26: Using Gtbooster Software
2. Click on the icon and select “Acer5Dongle” to switch the mobile network connection supported by installed SIM card in your dongle. Note: • To learn more about the software or obtain the software user guide, please visit ACER Support website.
