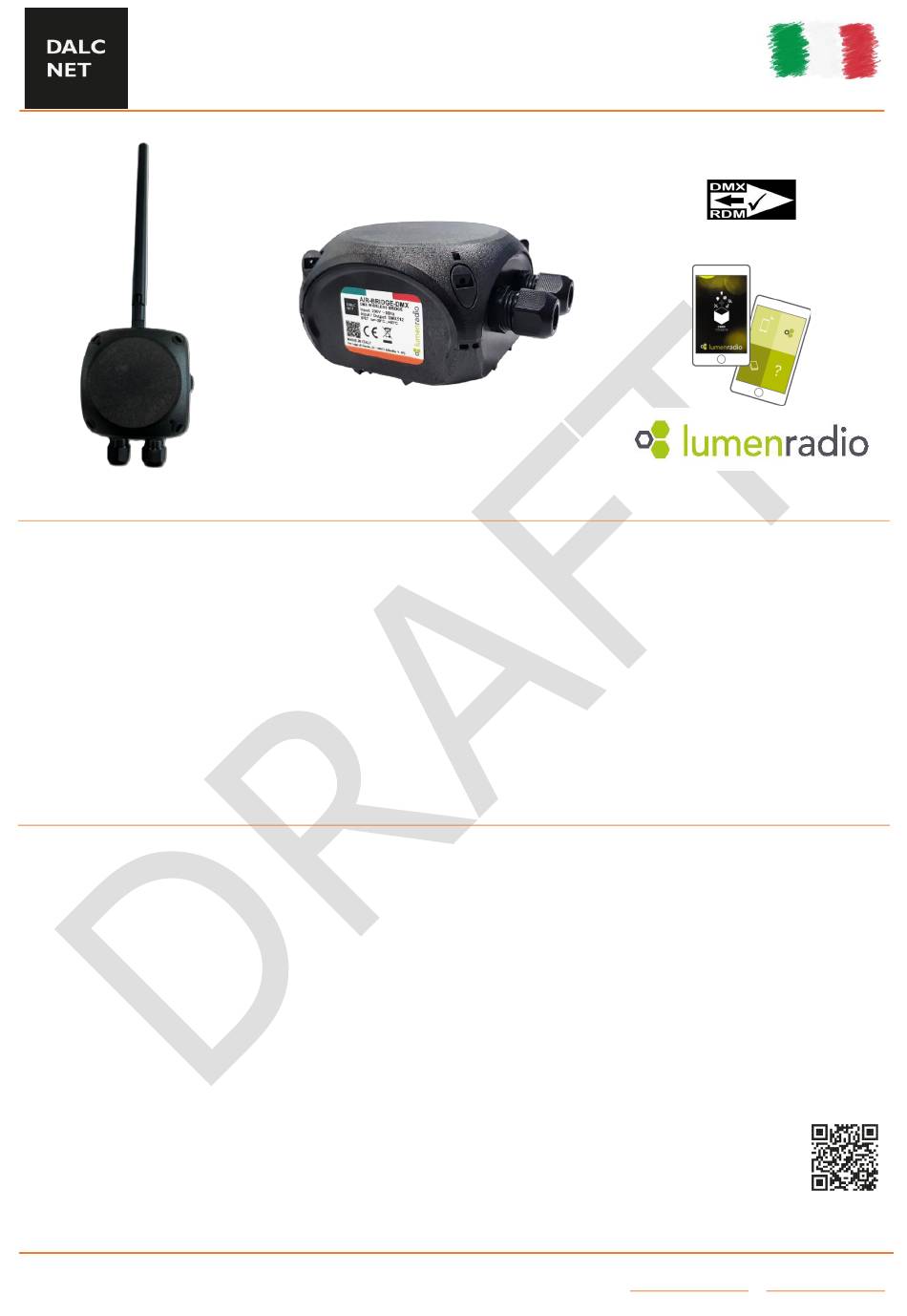

FEATURES
LumenRadio wireless DMX transmitter and receiver
Input voltage: typical 230 Vac @50Hz, range (85 ÷ 305) Vac
Transmit a full-DMX universe with RDM capabilities
External linking button
Concurrent Bluetooth Low Energy features
Over-the-air software upgrades
Insulated DMX512 Input/Output
Device configuration by LumenRadio CRMX Toolbox
Modes of Operation: Receiver (RX), Trasmitter (TX)
IP67 enclosure with IP67 external SMA antenna
Dimensions: 90x90x65mm (antenna excluded)
100% Functional Test
PRODUCT DESCRIPTION

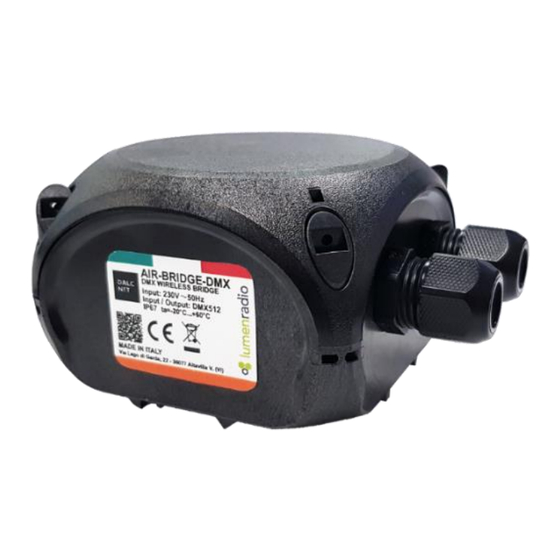

AIR-BRIDGE-DMX is a Wireless transmitter and receiver powered by LumenRadio module with concurrent Bluetooth that convert
DMX protocol to a wireless signal. Concurrent Bluetooth enables easy setup, configuration and lighting control using portable
devices through LumenRadio CRMX Toolbox
AIR-BRIDGE-DMX uses wireless signals to rapidly transmit data packets from a transmitter to a receiver (usually near lighting
fixtures). Instead of relying on traditional DMX cables, AIR-BRIDGE-DMX streamlines communication wirelessly, reducing setup
time and costs for live productions. It's like turning regular, wired DMX into a wireless signal, like how digital wireless microphones
work. The data from the controller goes into a DMX connector on the wireless transmitter, and the data moves wirelessly through
the air. AIR-BRIDGE-DMX transmitter can be easily paired with other receivers by means of external pushbutton that enable the
linking connection between Master transmitter (TX) and Slaves Receivers (RX).
Through the LumenRadio CRMX Toolbox
BRIDGE-DMX, such as modes of operation Transmitter (TX) or Receiver (RX).
LumenRadio CRMX Toolbox
⇢ For the most up-to-date manual, please visit our website:
device.
DALCNET S.r.l.
36077 Altavilla Vicentina (VI) – Italy
Via Lago di Garda, 22
AIR-BRIDGE-DMX
©
mobile application.
©
mobile application it is possible to setup and configure multiple parameters of the AIR-
©
can be downloaded free of charge from the Apple App Store and Google Play Store.
Device Manual
©
mobile application
www.dalcnet.com
or the QR Code directly on your
Tel. +39 0444 1836680
www.dalcnet.com
Rev. 19/03/2024 - Pag. 1/7
Made in Italy
–
info@dalcnet.com
Advertisement
Table of Contents
Summary of Contents for DALCNET AIR-BRIDGE-DMX
- Page 1 The data from the controller goes into a DMX connector on the wireless transmitter, and the data moves wirelessly through the air. AIR-BRIDGE-DMX transmitter can be easily paired with other receivers by means of external pushbutton that enable the linking connection between Master transmitter (TX) and Slaves Receivers (RX).
-
Page 2: Product Code
LumenRadio wireless DMX512-RDM LumenRadio CRMX Toolbox © Table 1: Product code REFERENCE STANDARDS AIR-BRIDGE-DMX is compliant to the standards shown in the following table. STANDARD TITLE EN IEC 62368- Audio/Video, information and communication technology equipment - Part 1: Safety requirements 1:2020+A11:2020 ANSI E1.11... -
Page 3: Installation
ONTROL ONNECTION AIR-BRIDGE-DMX can propagate the wired DMX digital bus (a shielded and twisted two-wire cable) through the air by means of the provided antenna. Each AIR-BRIDGE-DMX can be configured as transmitter (TX) or receiver (RX) manually via the internal jumper selector or remotely via Bluetooth with LumenRadio CRMX Toolbox ©... - Page 4 UPPLY CONNECTION AIR-BRIDGE-DMX can be powered by Mains AC Voltage supply at 230 Vac @50Hz. Once the remote control (DMX bus) is connected, connect the power supply to the "N" and "L" terminals of the AC IN terminal (refer to Figure 1).
- Page 5 AIR-BRIDGE-DMX natively supports the RDM functionality of the DMX protocol also with LumenRadio wireless DMX technology. RANSMITTER ECEIVER SETTINGS The AIR-BRIDGE-DMX can operate as a transmitter or a receiver. The operative mode can be selected by means the TX/RX internal jumper selection. WARNING! Maintenance must always be carried out in the absence of voltage.
-
Page 6: Technical Notes
AIR-BRIDGE-DMX Device Manual Made in Italy TECHNICAL NOTES NSTALLATION WARNING! Installation and maintenance should always be carried out in the absence of AC voltage. Before proceeding with the installation, adjustment, and connection of the device to the power supply, make sure that the voltage is disconnected from the system. -
Page 7: Legal Notes
ERMS OF Dalcnet Srl (hereinafter referred to as "the Company") reserves the right to make changes to this device, in whole or in part, without prior notice to the customer. Such changes may affect technical aspects, functionality, design, or any other element of the device. The company is not required to notify you of such changes and that your continued use of the device will constitute your acceptan ce of the changes.
