IAGREEA TDQR05 User Manual

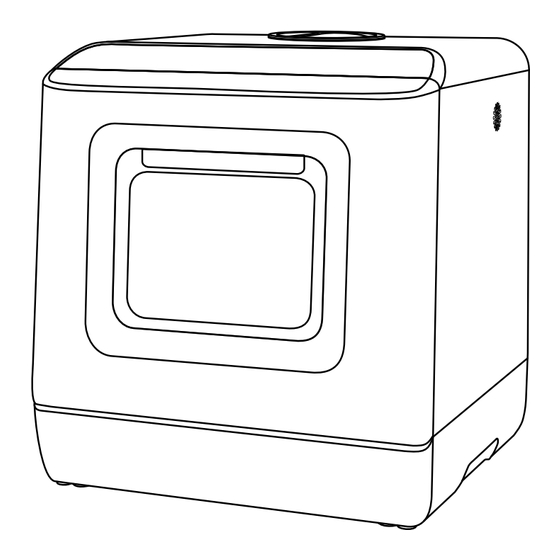

Countertop dishwasher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDQR05 and is the answer not in the manual?

Questions and answers

Summary of Contents for IAGREEA TDQR05

  • Page 3: Table Of Contents

    LIST Model No.: TDQR01 How to use Product Introduction Control Panel Installation Tableware Loading Operation Function Maintain and repair Maintain & Clean Fault & problem Safety & Warning Specification RoHs Requirement...

  • Page 4: Product Introduction

    Product Introduction Machine Water inlet Top lid Control panel Spray arm Filter Glass door Door handle Parts list Drain hose x1 Inlet hose x1 Fruit basket x1 Cup x1 Hose collar x1...

  • Page 5: Control Panel

    Control Panel Normal Quick Strong Fruit Mode Power 5.Time display 1.Dry 9.Normal 13.Fruit 6.Dry indicator 2.Tank model 10.Quick 14.Program option 7.Temperature 3.Tap model 11.ECO 15.Start/Pause 4.Display screen 8.Door open 12.Strong 16.Power on/off...

  • Page 6: Installation

    Installation 1.Inlet hose installation connect machine A Inlet hose Insert inlet hose elbow into the water inlet behind machine and tighten the screw. connect tap and C options need make a hole on or behind cabinet in order the hose can go through cabinet. connect tap connect machine Note: the size of inlet hose elbow is 1/2’with inneral thread,...

  • Page 7: Tableware Loading

    Tableware Loading avoiding to block water hose.

  • Page 8: Operation

    Operation Power on Power During washing program running, touch“ ”for 3 seconds to force the machine to turn off. Add detergent Open the door, add morderate detergent powder, or 1pc detergent block into the machine, close the door. No detergent when fruit washing; The dosage: 8-10g each washing circle.
  • Page 9 Operation Run program will check water supply automatically. Normal Quick Strong Fruit Mode Power Check tap or tank model automatically after running program, After 5 times checking, there is still no water supply, the machine Touch“ ”to force to pause machine to add tableware during Touch“...

  • Page 10: Function

    Function Program Drying Program Temperature Time Detergent execution time Hot water washing Cold water rinsing Circulating fresh Normal 69Min 60Min Cold water rinsing air 73 hours Hot water rinsing Hot water washing Circulating fresh Quick Cold water rinsing 29Min 60Min air 73 hours Hot water rinsing Hot water washing...

  • Page 11: Maintain & Clean

    Maintain & Clean 1.Clean Filter 2.Clean spray arms Disassamble. Disassamble Rotate anticlockwise to Open the door, take out disassamble the filter set, the basket, then pull out Which have 3 parts, filter up and down spay arm mesh, main filter and fine filter.

  • Page 12: Fault & Problem

    Fault & problem 1.Fault codes Fault Code How to deal with 1.Check drain pipe, be sure the pipe is straight, no bending; 2.Power off, check if anything block filer or drain pipe; Draining “E2” “E3” Overflowing machine, then restart machine, if still fault, contact our serviceman. “E4”...
  • Page 13 Fault & problem 2.Problem(1) Problem Reason How to deal with Incorrect tableware loading be sure enough gap between tableware. spray arm trapped Clean spray arm. Tableware is Clean filter set. not clean Correctly assamble filter set. Incorrect filter installation Incorrect program selection Select appropriate washing program.
  • Page 14 Fault & problem 2.Problem(2) Problem Reason How to deal with Inappropriate program Select appropriate program Poor dry effect for Wipe to dry these plastic tableware by hand plastic tableware Incorrect tableware Correct tableware setting in accordance Tableware is loading not dry Drying program Wait the dry program finishing no finishing...
  • Page 15 Fault & Problem 2.Problem(3) Reason Problem How deal with A mount of foam Use incorrect detergent in the machine min, the foam will be drained, can repeat the process if needed. Spray arm knock Correctly loading the tableware Abnormal sound tableware in the machine Tableware move slightly...

  • Page 16: Safety & Warning

    Safety and warning 2.Don’t share one 6A/10A socket with other appliance avoiding to fire. 4.Dispose of the machine in an environmentally friendly manner under local regulations; 6.Please use the salt and detergent which is special for automatical dishwasher; Warning 7.Don’t place and use the machine in the platform which is not stable, wet, smooth, 9.Don’t place any heavy object on the door when door open avoiding to the machine turn over;...

  • Page 17: Specification

    Specification Machine Electrical Drawing 20V~ TDQR0 Model No.: DC5V Flowmeter Voltage 20V~ Heating Thermister 20V~ N Pressure switch 20V~ L Liquid level switch Power 9 0W Overflow switch 20V~ N Inlet pressure Draught Fan 0.0 ~1MPa Door switch 20V~ L Water consumption DC12V Net weight...

  • Page 18: Rohs Requirement

    RoHS Requirment Hazardous substances content substances Components C r6 + Plastic parts Metal parts Rubber p arts Screws Stickers Heat plate Wire Water pumps , Fan Water valve Parts of others T he table is made according to S J /T 11364 standards . O: indicates the hazardous s ubs tance contain is below the limitation of G /T 26572 standards .
