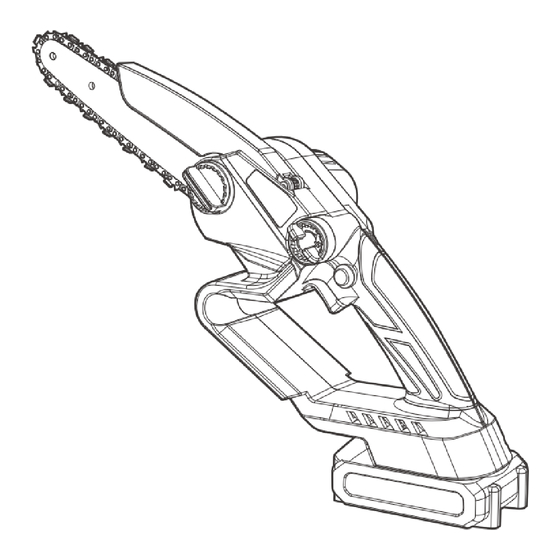

- Page 1 INSTRUCTION MANUAL Cordless Chain Saw CC-07 IMPORTANT: Read Before Using. If you have questions or comments, contact us Support@btftool.com...
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model: CC-07 Total length 357mm (without guide plate and battery) Rated voltage D.C 21V Overheating protection 100℃ Primary overload protection Net weight 1.1kg Standard guide bar length 185 mm (6″) Recommended length of guide plate 185 mm (6″) -
Page 3: General Power Tool Safety Warnings
Personal safety SAFETY WARNINGS Stay alert, watch what you are doing and use common sense when operating a power tool. General power tool safety Do not use a power tool while you are tired or under the influence of drugs, alcohol or warnings medication. - Page 4 Service Store idle power tools out of the reach of children and do not allow persons unfamiliar Have your power tool serviced by a qualified with the power tool or these instructions to repair person using only identical replacement operate the power tool. Power tools are parts.
-
Page 5: Additional Safety Instructions
Follow instructions for lubricating, chain Additional Safety Instructions tensioning and changing the bar and chain. Improperly tensioned or lubricated chain may Personal protective equipment either break or increase the chance for kickback. Clothing must be close-fitting, but must not Cut wood only. Do not use pruning saw for obstruct mobility. - Page 6 Do not charge battery in rain, or in wet If electrolyte gets into your eyes, rinse them out with clear water and seek medical locations. attention right away. It may result in loss of Do not charge the battery outdoors. your eyesight.
-
Page 7: Parts Description
Tips for maintaining maximum Do not allow chips, dust, or soil stuck into the terminals, holes, and grooves of the battery life battery cartridge. It may cause heating, catching fire, burst and malfunction of the tool or Charge the battery cartridge before battery cartridge, resulting in burns or personal completely discharged. -
Page 8: Functional Description
FUNCTIONAL Indicating the remaining battery capacity DESCRIPTION Only for battery cartridges with the indicator CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge CAUTION: Always switch off the tool... - Page 9 ASSEMBLY Switch action WARNING: For your safety, this tool is CAUTION: Always be sure that the equipped with lock-off lever which prevents tool is switched off and the battery the tool from unintended starting. NEVER cartridge is removed before carrying out use the tool if it runs when you simply pull any work on the tool.
- Page 10 Align the hole on the guide bar with the pin on the tool body, and then place the guide bar as shown in the figure. Fig.6 Remove the guide bar from the tool body Fig.10 1. Guide bar 2. Hole 3. Pin Slide the guide bar toward the sprocket to lock the pin.
-
Page 11: Adjusting Saw Chain Tension
The tension is correct when the chain snaps Adjusting saw chain tension back after being pulled 1/8" (3 mm) away from the guide bar 4 with light force from the index Turn the Chain tensioning knob finger and thumb as shown counterclockwise/clockwise a little to loosen/tight the chain lightly,The chain tension is adjusted,no tools required. -
Page 12: Working With The Tool
Fig.17 Fig.18 NOTICE: Use the saw chain oil exclusively for BTF tools or equivalent oil available in the market. NOTICE: Never use oil including dust and particles or volatile oil. NOTICE: When pruning trees, use botanical oil. Mineral oil may harm trees. NOTICE: Before the cutting operation, make sure that the provided oil tank cap... -
Page 13: Maintenance
MAINTENANCE Cleaning the guide bar Chips and sawdust will build up in the guide bar Lubrication groove.They may clog the bar groove and impair the oil flow. Clean out the chips and sawdust every time CAUTION: when you sharpen or replace the saw chain. Always be sure that the tool is switched off and the battery cartridge is removed before attempting to... -
Page 14: Instructions For Periodic Maintenance
Instructions for periodic maintenance Check item / Operating Before Everyday Every week Ever 3 Annually Before time operation month storage Whole tool Inspection. Cleaning. Check at authorized service center. Saw chain Inspection. Sharpenin if necessary. Guide bar Inspection. Remove from the tool. -
Page 15: Troubleshooting
TROUBLESHOOTING Before requesting repairs, perform your own inspection. If you encounter an issue not addressed in the manual, avoid attempting to disassemble the tool. Instead, contact BTF Support and consistently utilize BTF replacement parts for any necessary repairs. Malfunction status Cause Action The tool does not... -
Page 16: Optional Accessories
OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your BTF tool specified in this manual. use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local BTF Service Center：support@btftool.com... - Page 17 WARNING Dust generated during tasks like power sanding, sawing, grinding, drilling, and various construction activities can contain substances recognized by the State of California as having the potential to cause cancer, birth defects, or other reproductive harm. Some instances of these substances include: •...
