ADELSYSTEM MRF102 Instruction Manual

MRF102
2- Channels Electronic Circuit Breaker
Instruction Manual
Thank you for having chosen one of our products for your work.
We are certain that it will give the utmost satisfaction and be a notable help on your
job and application.
1 Product Description
The MRF102 2-channel electronic circuit breaker with Din Rail and Wall mounting is
designed for current distribution and protection of 12V or 24V load circuits.
2 Safety and warning notes
WARNING – Explosion Hazard Do not disconnect Equipment unless
power has been switched off or the area is known to be non-
hazardous.
WARNING – Explosion Hazard. Substitution of components may
impair suitability for class I, Division 2.
WARNING – Switch off the system before connecting the module. Never work on the
machine when it is live. The device must be installed in according to EN61010 or
EN62368-1. The device must have a suitable isolating facility outside the power
supply unit, via which can be switched to idle. Danger of fatal Injury!
WARNING – The device is equipped whit an internal fuse. If the internal fuse blows
Up (fails opens), it is most probable that there is a fault in the device. If this failure
occurs, the device must be returned to the factory.
3 How to Install
Mounting

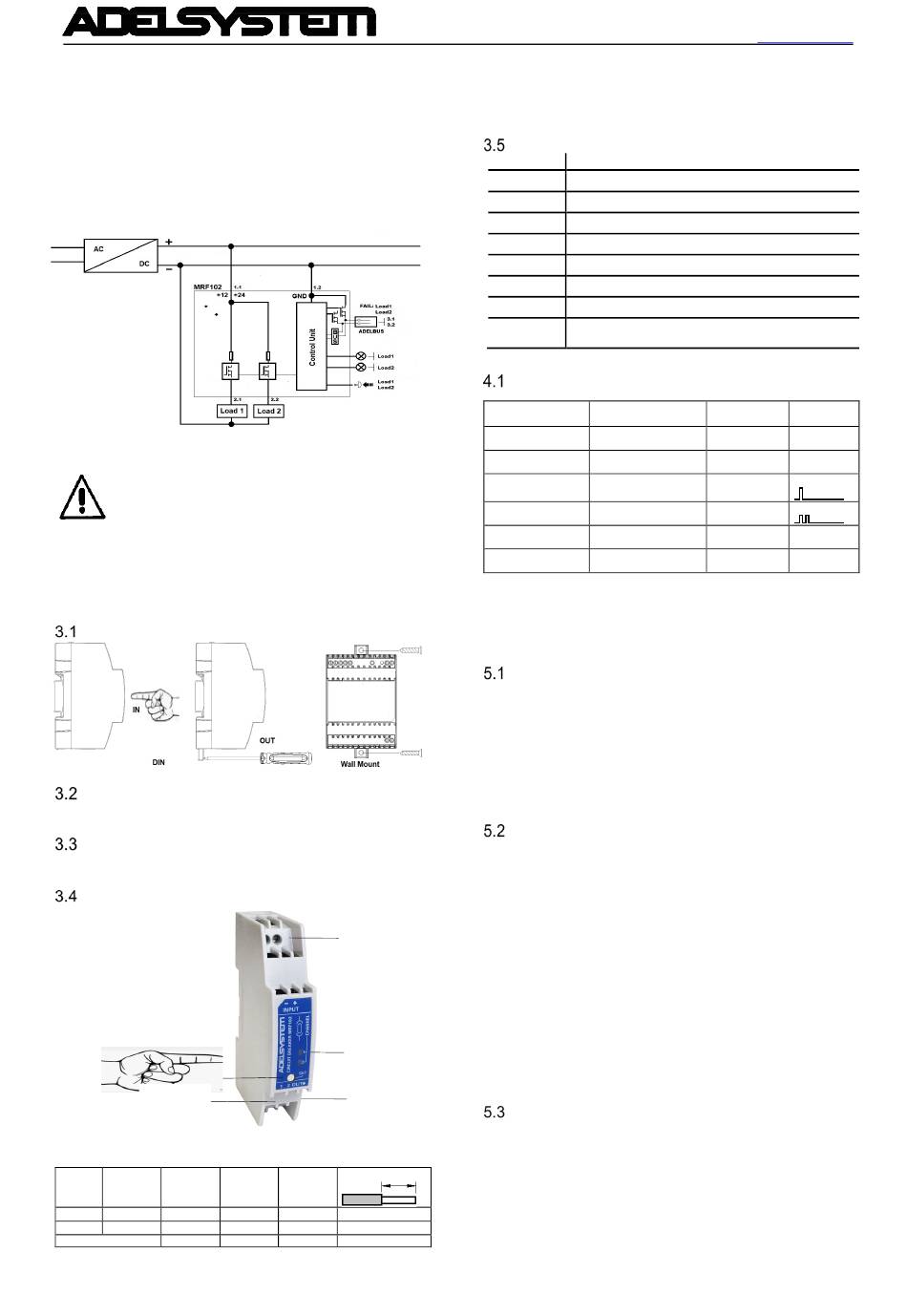

Fig. 1 – Drawing of the MRF102
Din Rail or Panel Mounting
Fig. 1 shows a dimensional drawing of the MRF102. It is possible to mount the
device on Din rail or in panel and fix it by 4 screws 2.9x8-16. There is no limit for the
Panel thickness.
How to Supply MRF102
The MRF102 is supplied directly from the power source which provide power to the
load. The device it is protected by internal physical fuse, also in worst case
situations. The input rating is 8 – 35Vdc.
Device Connection (Fig.2)
3
ON / OFF out 1: Tick -
ON / OFF out 2: Tick – Tick -
PROG: Press 2 sec. -
7 Out 1
6 Out 2
Fig. 2 – Connections to MRF102
The following cable cross-sections may be used:
Solid Stranded
(mm2) (mm2)
In: 0.2–2.5 0.2–2.5
0.2–2.5 0.2–2.5
Out:
Signal:
Page 1
1 Input +
2 Input -
4 LED Ch1
5 LED Ch2
8 Aux1
Channel Alarm
ADELBus (CAN)
Stripping Length
Torque
AWG
(Nm)
24 – 14 0.5–0.6 7 mm
24–14 0.5–0.6 7 mm
AMP Modu II
Via Luigi Barchi 9/B – Reggio Emilia 42124 – Italy
Tel. +39 0522 345518 – Fax +39 0522 345551 –
Connection by the screw, type 2.5 mm2. Wiring terminal shall be marked to indicate
the proper connection for the power supply. Use copper cables only, for supply
connections use wires suitable for at least 75°C
Connection terminal and wiring
Reference Description
1 + Input Power
2 - Input Signal
3 Push button: ON / OFF Channel 1 and 2 / Config.Mode
4 LED Green, Orange, Red: Channel controls / Config.Mode
5 LED Green, Orange, Red: Channel controls / Config.Mode
6 Output Channel 1
7 Output Channel 2
AUX1: Output Alarm Ch1 and Ch2 or ADELBus connection
8
(CAN)
4 Drive a Channel
ON - OFF Channel and LED Indications
State
Channel: ON current is <80% than
tripping point
Channel: ON current is >80% of the
switch tripping point
Channel1: ON - OFF Channel open ó
closed
Channel2: ON - OFF Channel open ó
closed
Channel: OFF Channel in protection
Note 1
Channel: OFF Channel in protection
Note 1
At first power up all channels are OFF.
Channels cannot be enabled / disabled while the device is in configuration mode.
Note 1: Channel is in protection due to: Overcurrent, Overtemperature, Over/Under
voltage (<8.5V or >32.5V).
5 Control and Programming
How to verify the trip current set
Press the set button for more than 2 sec. until LED channel 1 starts to blink Orange.
• The number of Orange blinks indicates the number of Ampere set for the trip
current: 1 Blink = 1A ... 10 Blink 10A
• Press the push button for more than 2 sec. until LED channel 2 starts to blink
Orange.
• The number of Orange blinks indicates the number of Ampere set for the trip
current: 1 Blink = 1A ... 10 Blink 10A
• End the procedure by holding down the button for 2 seconds until the LEDs
resume their regular flashing.
If the button is not pressed for 20 seconds, the procedure ends automatically and the
LEDs resume their regular flashing.
How to set the Trip Current
Press the push button for more than 2 sec. until LED channel 1 start to blink Orange.
1. At this time it is possible to count the number of orange blinks
according to the number of Ampere set for the trip current: 1 Blink =
1A ... 10 Blinks = 10A
2. Press the push button for a number of times equal to the desired
number of tripping Ampere.
3. Verify option: after selecting the desired Ampere, the device will return
the set number after 2 sec
4. Correction option: correction of the current setting by pressing one
more time the set button: e.g., 6A + 1A more = 7A. When 10A is
reached, the counter restarts from 1A.
5. To confirm the New Trip Current setting, press the push button for 2
sec. until LED channel 2 starts flashing orange.
6. Set the current limit for channel 2 in the same way as for channel 1.
7. Confirm the new Trip Current of the channel 2 and finish the
Configuration procedure by holding the button for 2 seconds until the
LEDs start flashing regularly again.
• Mandatory: to ensure the new value is set, the procedure must be completed.
If the button is not pressed within 20 seconds, the procedure automatically
ends and the LEDs resume flashing regularly. The device retains the old
values.
• Note: at first power up the device is programmed at 3A for each channel.
How to configure the MRF102 for best
performance
The following procedure is for the configuration of:
• Output Alarm Configuration
• Selection Normal scale or Half scale
• Standard or Ultrafast Current Trip Sensibility
• Reset the device to factory default
