Monaco Enterprises, Inc.
MAAP(+) Quick Reference
14820 E. Sprague Avenue, P.O. Box 14129, Spokane, WA 99214-0129 (509) 926-6277 FAX (509) 924-4980 www.monaco.com
Use this Quick Reference when operating the panel or responding to trouble or alarm conditions. For more information, refer to
the Monaco Analog Addressable Panel Plus MAAP(+) I-O-M manual (P/N 001-353-01). Place this Quick Reference in the panel
enclosure; it fits behind the battery.
Contents
Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Entering Data and Scrolling Lists. . . . . . . . . . . . . . . . . .
Identifying Status of the Panel . . . . . . . . . . . . . . . . . . . .
Main and Primary Menus . . . . . . . . . . . . . . . . . . . . . . . .
Device Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interpreting Trouble Descriptions. . . . . . . . . . . . . . . .
Alarm Indication Summary. . . . . . . . . . . . . . . . . . . . . . .
Conventional Typical Connections. . . . . . . . . . . . . . . . .
Addressable Typical Connections . . . . . . . . . . . . . . . . . 10
Analog Addressable Controller (AAC) . . . . . . . . . . . . 10
Identifying the Status of the AAC . . . . . . . . . . . . . . . . . . 10
Enabling a Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Disabling a Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Testing and Replacing the Batteries . . . . . . . . . . . . . . . 11

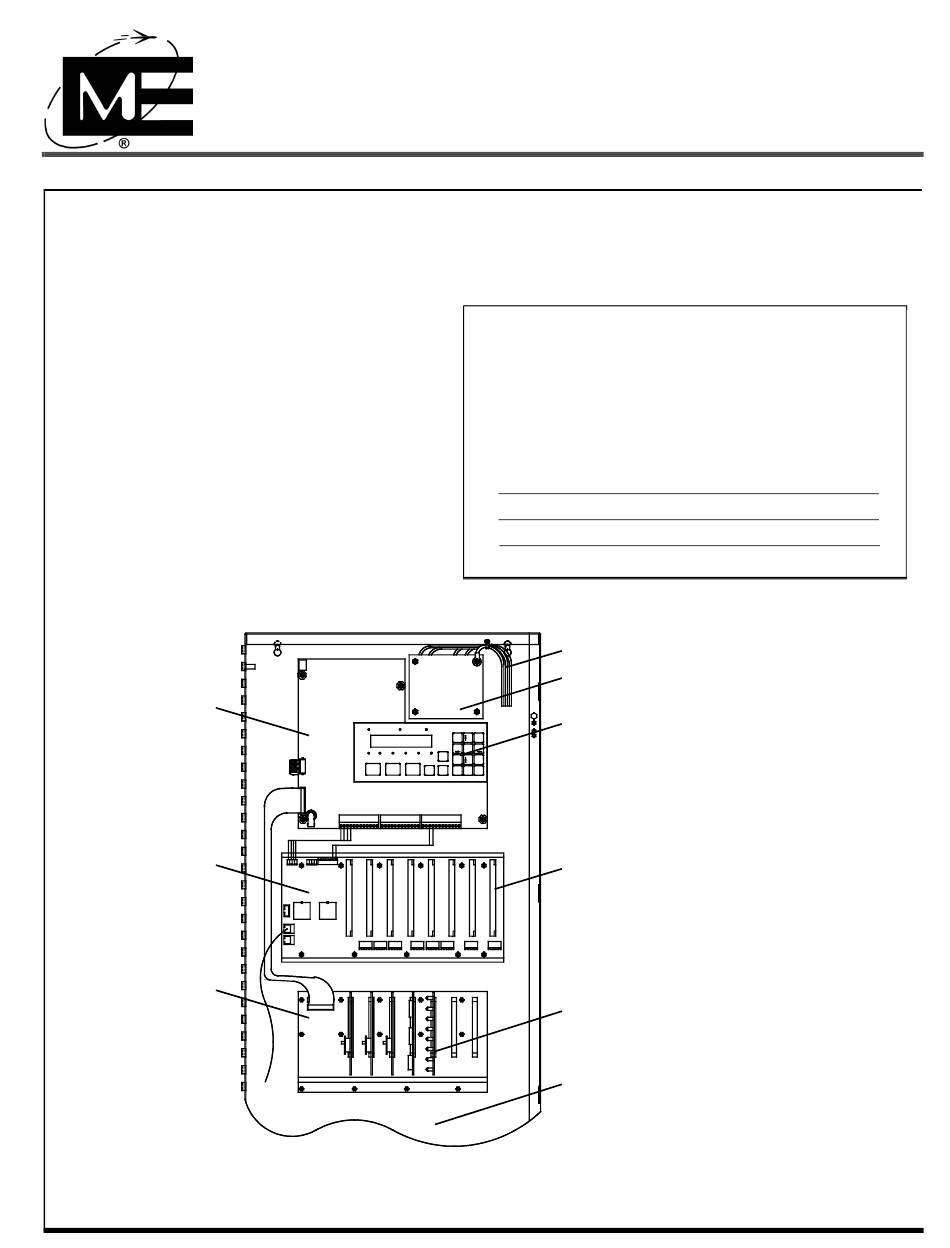

Panel Components
Electronic
Assembly
Analog
Addressable
Controller (AAC)
Expansion
Backplane
(optional)
Leave it in the enclosure; MAAP(+) users need this document for reference.
1
2
2
2
3
3
3
4
5
7
8
AC POWER
BATTERY
FAULT
1
2
3
4
5
6
LAMP
RCV
CD
XMTR
ALM
TBL
XMT
TEST
7
8
9
DISC
ALARM
PANEL
TROUBLE
XMTR
DRILL
0
CE
ENT
SILENCE
RESET
SILENCE
RESET
TEST
A
ZONES
B
A
BELLS
B
Questions and Repair
If you have questions or require assistance,
contact a Monaco Customer Service Representative
at (509) 926-6277 or service@monaco.com
For repair, contact:
AC Power Line Connections
Transformer
LCD/Keypad
Analog Driver Card (ADC) slot
Zone Expansion Card (ZEC) or
Universal Input Card (UIC) or
Auxiliary Output Card (AOC)
Battery Space
001-329-01 Revision B 4/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAAP+ and is the answer not in the manual?

Questions and answers

Summary of Contents for Monaco MAAP+

  • Page 1: Table Of Contents

    Use this Quick Reference when operating the panel or responding to trouble or alarm conditions. For more information, refer to the Monaco Analog Addressable Panel Plus MAAP(+) I-O-M manual (P/N 001-353-01). Place this Quick Reference in the panel Leave it in the enclosure; MAAP(+) users need this document for reference.

  • Page 2: Entering Data And Scrolling Lists

    Entering Data and Scrolling Lists MONACO ENTERPRISES AC POWER BATTERY FAULT 0–9 Selects a menu option or SPOKANE, WASHINGTON U.S.A. enters configuration data. Enters the value displayed in the LCD or scrolls a list. Clears a character from the LCD.

  • Page 3: Main And Primary Menus

    Early Warning Expansion Card (generic) EXP3 Relay Local expansion zone L3-2 Monitor Module M3-99 Maintenance Alert On-board zone Remote Display RD32 Sensor S8-25 System Trouble Panel Trouble SYS12 Universal Input Card UIC7 Zone Expansion Card ZEC4 Copyright 2019 Monaco Enterprises, Inc.

  • Page 4: Troubles

    Troubles The following table indicates what happens when a trouble occurs. The LCD displays the information indicated in the LCD Message column of the table and automatically scrolls the message vertically until TROUBLE SILENCE is pressed; then, use the up and down arrow keys to scroll the messages.

  • Page 5: Interpreting Trouble Descriptions

    An AOC was detected in a slot that has been defined as a ZEC. ZEC When AOC A ZEC was detected in a slot that has been defined as an AOC. Card Missing A ZEC, AOC, or UIC was not detected as expected in the proper slot. Copyright 2019 Monaco Enterprises, Inc.
  • Page 6 Device is absent from base, not seated well in base, or inoperative. Wrong Device Type Addressed device is a different type than previously defined. Wrong OEM The device is sold by a manufacturer other than Monaco Enterprises, Inc. Multiple Reply More than one device has the same address. Bad Pwx The device is not operating properly.

  • Page 7: Alarm Indication Summary

    Relays K1 and K2 activate if user assigned or during a General Alarm.  Important! Do not short bell circuits or auxiliary output when the panel is in a trouble or alarm condition. This will cause damage to the panel. Copyright 2019 Monaco Enterprises, Inc.

  • Page 8: Conventional Typical Connections

    Conventional Typical Connections Electronic Assembly Manual Battery Reconnect Switch (momentary) Power Supply Transformer Pigtail Fuses (F2-F4) Note: Connect wiring to pigtail for 120 Vac Battery or 240 Vac source Transformer Connection To batteries 24 Vdc, (fused for 6A) AH capacity depends on the Integrated configuration Transceiver/Addressable...
  • Page 9 *Important! The maximum combined current of the NACs (Bell 1 and Bell 2 or Bell 3 and Bell 4), Auxiliary Output Circuit, Auxiliary Power Circuit, Remote Trouble Circuit, and IDCs provided by the backplane cannot exceed 4 amps. Copyright 2019 Monaco Enterprises, Inc.

  • Page 10: Addressable Typical Connections

    Addressable Typical Connections Analog Addressable Controller (AAC) Identifying the Status of the AAC The AAC LEDs indicate the operational status of the AAC: Lights green. It is on during normal operation. It flashes when the battery input voltage is too low. POWER ...

  • Page 11: Enabling A Device

    To determine the condition of the batteries, use a dynamic battery analyzer (P/N 297-301-00). If the analyzer indicates that the batteries are marginal or bad, replace the batteries. Copyright 2019 Monaco Enterprises, Inc.
  • Page 12 Notes MAAP(+) Quick Reference 001-329-01 Revision B 4/19...
