GoSports NET-20x10 Manual

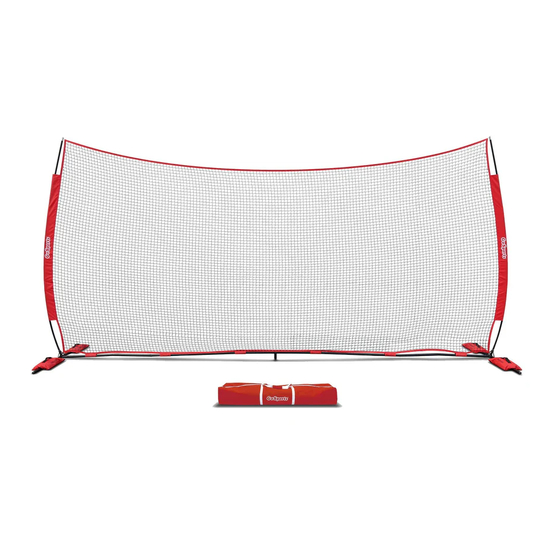

20' X 10' Sports Barrier Net
20' X 10' Sports Barrier Net
A-BAR B-BAR CROSS BAR
METAL LEGS
1. Connect the 5 metal support bars together
(1 Cross Bar 2 A-Bars 2 B-Bars) then connect to
the 2 metal legs, ensure the pins engage to lock
the parts together
2. Connect 3 of the fiberglass pole sections
together to make the 2 fiberglass poles
FIBERGLASS
POLE 1
4. Lay net flat on the ground and slide the
bottom of fiberglass pole 1 into the leg's base
connector
5. Feed fiberglass pole 2 through other sleeve,
slide fiberglass pole into leg's base connector
Premium Sporting Goods
2 Person Adult Assembly
2
FIBERGLASS
POLES
B-BAR A-BAR
FIBERGLASS
POLE 2
Hook the net
loop over the
metal pole tip
FIBERGLASS
POLE 1
3. With the metal tip of the pole on the top, feed
the pole through one of the sleeves
6. Use 2 people to stand the net up and secure
the 6 attachment straps to the base and hook
lower net loops around the metal hooks
7. Use metal stakes to secure each end of the
leg base, make sure net is fully secure
FIBERGLASS
POLE 2
NOTE: THE BOTTOM OF THE NET
IS INDICATED BY THE
6 ATTACHMENT LOOPS
