Summary of Contents for Fimei HGM-411
- Page 1 INSTRUCTION MANUAL Multifunction Food Processor HGM-411...
-
Page 2: Safety Precautions
120V~60Hz 600W MAX HOUSEHOLD USE ONLY ※Read this user manual carefully before you use the appliance and save it for future reference. > SAFETY PRECAUTIONS 1. The input voltage of this product is AC120V～60Hz, please confirm it before use. 2. Before disassembling, installing or adjusting any part of the product, be sure to disconnect the power supply. - Page 3 9. Do not put overheated ingredients (maximum temperature 80 ℃) into the cup for processing, so as not to cause the cup body to break. 10. The ingredients should not exceed the maximum scale of the capacity of the cup. 11.

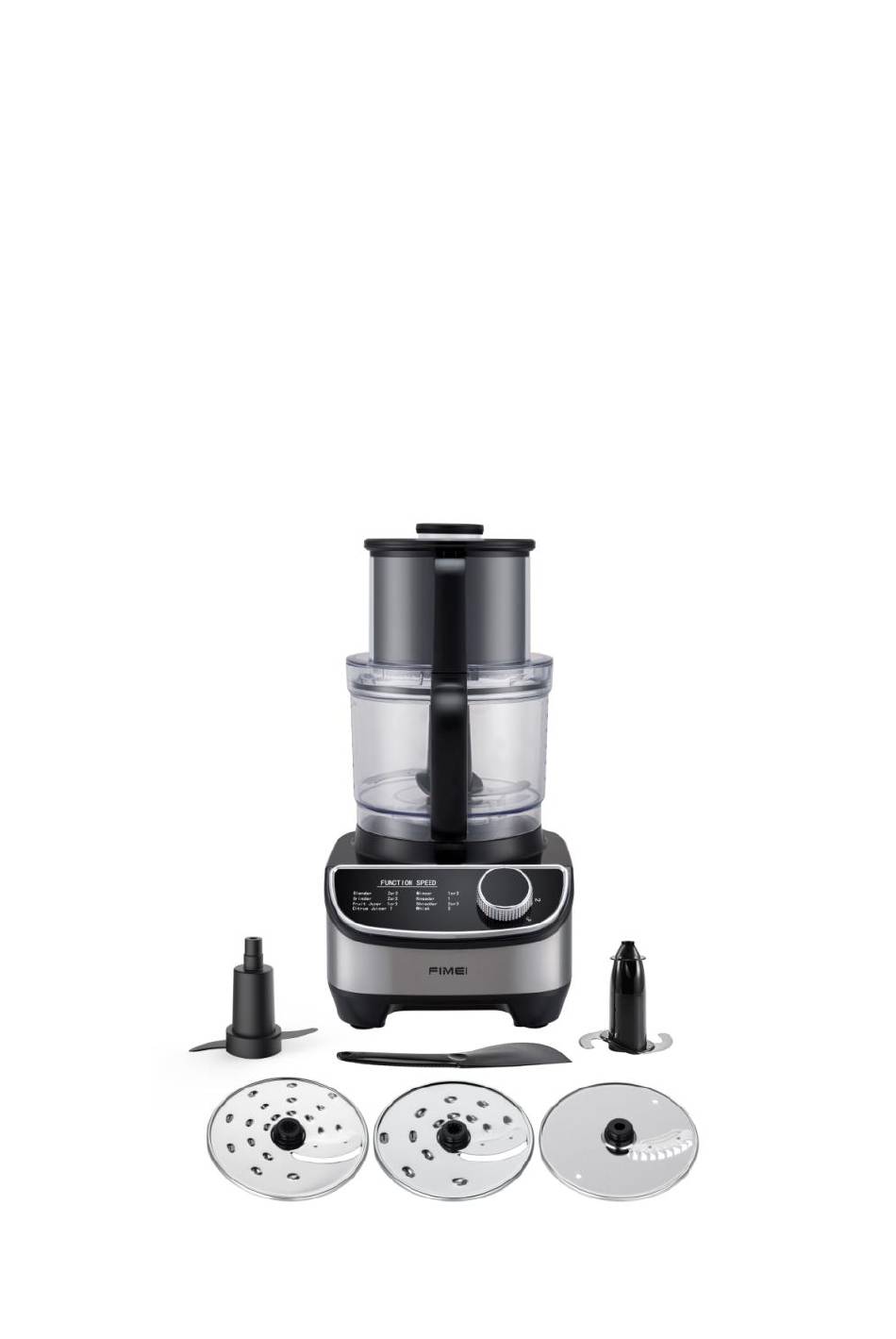

- Page 4 > FUCTION DESCRIPTION 1. Body base Small Pusher 2. Power switch Fine Shredding/Slicing Disc 3. Safety switch Coarse Shredding/Slicing Disc 4. Container French Fries Disc 5. Drive shaft Dual Chopping Blade 6. Sealing ring Kneading Blade 7. Container lid Spatula Larger Pusher...
-
Page 5: How To Use
> HOW TO USE · Before using the product for the first time, thoroughly clean the parts in contact with the food. · This product is equipped with a double safety system, which will only work after all parts are correctly installed. ·... - Page 6 Put the ingredients to be processed into the container cup, no more than 500g. 1 Put the lid of the container on the container; 2 Turn it clockwise into the container cup. When you hear a "click", it means that the container lid has been screwed in place, and the product will not work if it is not screwed in place.
- Page 7 Kneading Blade Follow the first 3 steps of the Chopping Blade. Fit the Kneading Blade to Processor Spindle Add the flour (Max 600g) into the Processing Bowl ① Place the Lid Cover with Large Pusher onto the Processing Bowl ② Rotate clockwise of the Lid Cover until it into place, will hear the “click”...
- Page 8 · Cutter head function Put the container cup on the host, the angle between the handle and the safety switch of the host is about 55 degrees (before placing it, make sure that the host is placed on a flat table and the host cannot be shaken).
- Page 9 Hold the handle of the container cup and screw it clockwise into the main unit. When the container cup hears a "click", it means that the container cup has been screwed in place, and the product will not work if it is not screwed in place.
- Page 10 1 Select the ingredients and put them into the feeding port, the ingredients do not have to be put in too quickly; 2 Use the pressure stick to gently push the ingredients. Note: 1) Before processing, please confirm whether the size of the food can be completely put into the feed inlet;...
-
Page 11: Troubleshooting
> TROUBLESHOOTING Question Answer solution 1. The container cup is not installed in place 2. The lid of the 1. The container cup is installed in place container is not in place 2. Install the container lid in place After energizing, 3. - Page 12 The blade is entangled or Disconnect the power, take out the Blade stuck stuck in the food ingredients and cut into small pieces...
Need help?
Do you have a question about the HGM-411 and is the answer not in the manual?
Questions and answers
HOW IS FOOD PROCESSOR TURNED ON AND OFF
The Fimei HGM-411 food processor will only operate when its triple safety locks are correctly installed. You will hear a "click" when properly assembled. If the locks are not engaged, the machine will not turn on. To turn it off, simply disconnect the power supply.
This answer is automatically generated
What piece is used for making pie dough?
