air choice TWH-15Q2 Manual

Electric space heater
Hide thumbs

Advertisement

Table of Contents

Electric Space Heater
MODEL: TWH-15Q2
Thank you for choosing AIR CHOICE Space Heater!
This user manual will provide you with valuable information necessary for the proper care and
maintenance of your new product. Please take a few moments to thoroughly read it and start enjoying
your warm winter!
Always here to help you
For any questions or help, please email us: airchoice@afterservice.vip

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWH-15Q2 and is the answer not in the manual?

Questions and answers

Related Manuals for air choice TWH-15Q2

Summary of Contents for air choice TWH-15Q2

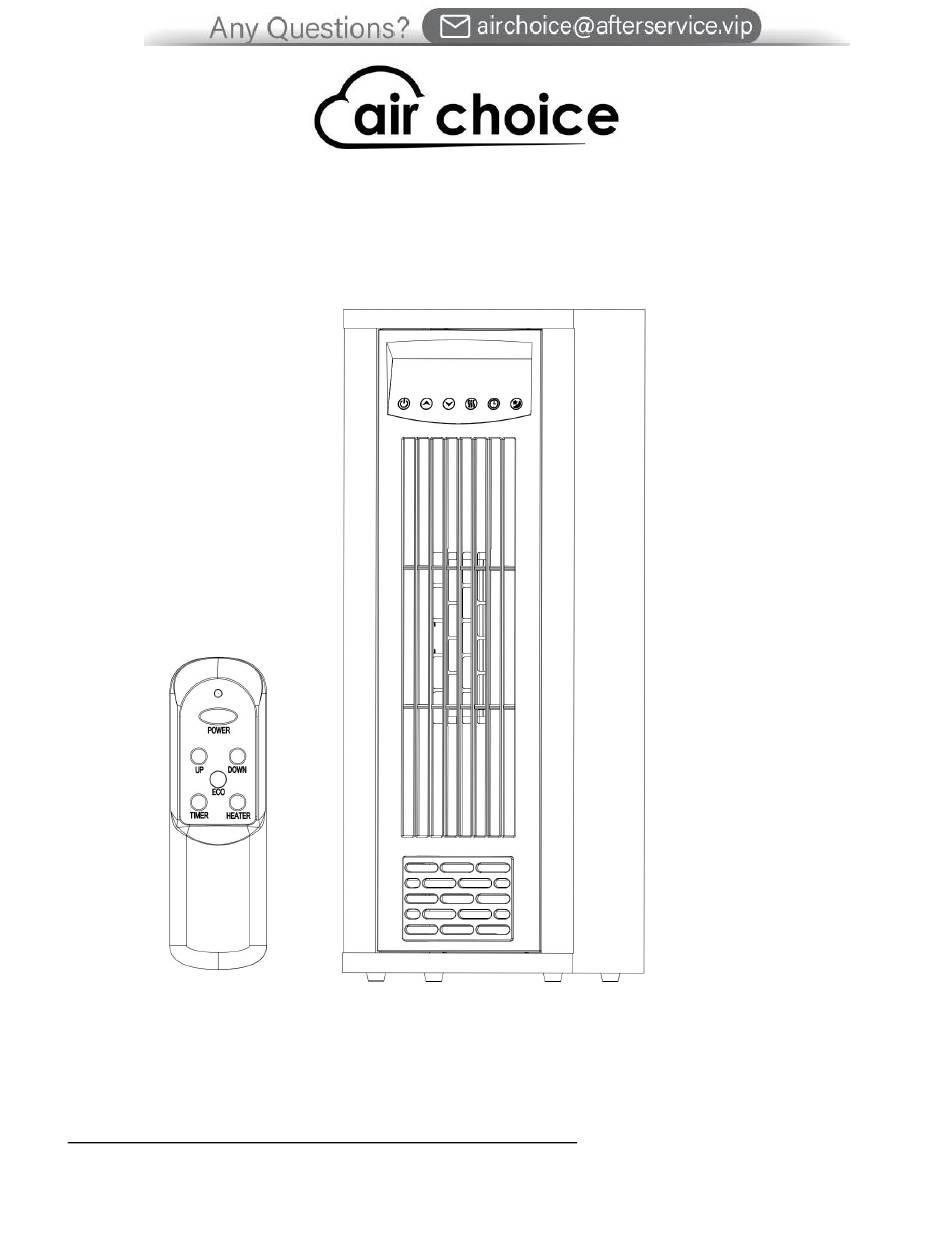

  • Page 1 Electric Space Heater MODEL: TWH-15Q2 Thank you for choosing AIR CHOICE Space Heater! This user manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read it and start enjoying...

  • Page 2: Important Instructions

    Warning: Please read the user manual carefully before using the unit and save it for future reference. Thank you for choosing the products of AIR CHOICE. This user manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new heater.
  • Page 3 11. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames. 12. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).

  • Page 4: Specification

    SPECIFICATION Voltage Rating 120 V (60Hz) Power Consumption 1500W Unit Size 8.46 in. (W) x 10.23 in. (D) x 24.01 in. (H) Unit Weight 14.9 lbs SAFETY FEATURES Tip-Over Safety Feature This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal switch will automatically shut the heater off.

  • Page 5: Items In The Box

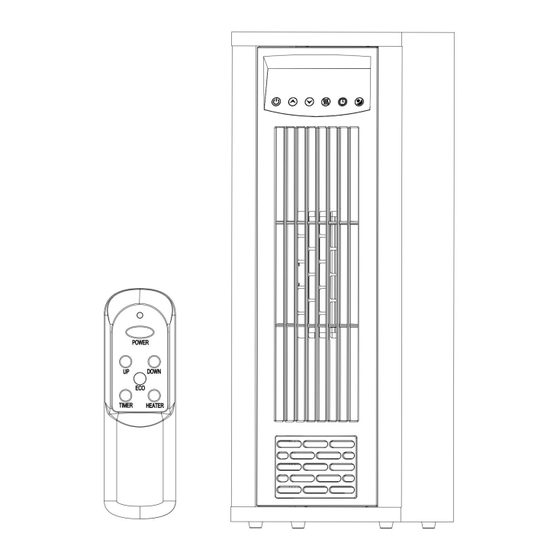

    ITEMS IN THE BOX ·INFRARED ZONE HEATING SYSTEM ·REMOTE CONTROL (It needs 2 AAA batteries, but not Included.) ·INSTRUCTION MANUAL PRODUCT DIAGRAM REMOTE CONTROL Control Panel Handle Temp Sensor Air Outlet Air Intake...
  • Page 6 Control Panel 1、ON/OFF button: Powers the display on and off. 2、Temp up button: To increase desired temperature. 3、Temp down button: To decrease desired temperature. 4、Heating Mode button：To select between High and Low modes. 5、Timer button：Used to engage timer mode and to set hour value for the timer. 6、Eco button：Operate the machine in energy-saving mode.
  • Page 7 Remote Control ON/OFF button: Used for power-on or power-off Temp up button: to make set temperature rise Temp down button: to make set temperature decline Eco button：Used for energy saving mode Mode button：Used for heating mode selection Timer button: Used for setting timer and adjust time value of timing PREPARATION Place the heater on a firm, level surface and plug it into a 120V 60Hz grounded power outlet.
  • Page 8 OPERATING INSTRUCTION 1、Start and select working mode Turn the heater on by pressing the ON/OFF button on the control panel or by pressing the Power button on the supplied remote control. Once power is off, heating element will stop working at first. Fan will prolong working for 3 min to emit plenty of heat inside.
  • Page 9 3、Setting the POWER OFF TIMER Function Note: The Power-Off-Timer Function will allow for the heater to power OFF after a certain set time, and can only be set while the heater’s display is in the “On” position. Turn the heater to the “On” position .Press the Timer button on the heater’s control panel or the remote.

  • Page 10: Maintenance

    5、Setting electro lock The Electro Lock can help avoid the heater from being accidentally engaged by children. The locking mechanism can be set in both the ON and OFF modes. Press Temp Up and Temp Down buttons at the same time for 3 seconds.

  • Page 11: Troubleshooting

    Battery STORAGE Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original packaging to repack the unit. TROUBLESHOOTING If the heater will not operate, please check the following before seeking repair advice: Check if the power cord is plugged into an electrical outlet, if not, plug in.

  • Page 12: Warranty

    ONE (1) YEAR from the date of purchase by the original purchaser (“Warranty Period”). If a defect arises and a valid claim is received within the Warranty Period, at its option, AIR CHOICE will either 1) repair the defect at no charge, using new or refurbished replacement parts, or 2) replace the product with a new product that is at least functionally equivalent to the original product, or provide a store credit in the amount of the purchase price of the original product.
  • Page 13 CONTACT US Thank you for choosing AIR CHOICE product. If there is a defect arises during one year, please feel free to contact us to get your valid claim. To obtain warranty service, please your model and order of the product via: �...
