SDG eclipse S100B-BL Instruction Manual

IMPORTANT
Read the installation manual before mounting.
This product should be installed by a qualified electrician.
Before installation, maintenance or lamp replacement please ensure the power supply is disconnected.
INSTALLATION
1. Seperate the diffuser from the body and remove lampholder
2. Place fitting on firm surface, remove required knockouts on the inside of fitting using a suitable punch, striking sharply on the
knockout near the periphery.
3. Remove required knockout, M20.
4. The fitting can then be mounted to normal surfaces using no. 8 wood screws. We advise a sealing compound be used around the
screw heads to reduce water ingress. A sealed termination should be made using an appropriate M20 cable gland, assembled
with locknuts/lockrings.
5. Note: To maintain IP rating and a weatherproof fitting, a suitable gasket (rubber) should be used.
6. Heat resisting sleeving is provided (tungsten only) to sleeve incoming cables, live (red or brown) and neutral (black or blue).
Connect cables to lampholder, ensuring screws are fully tightened,
7. Assemble and fit lamps as required. Fit standard GLS B22 lamp. 100W max.
8. Do not over-tighten fixing screws. An effective weatherproof seal can be provided with moderate tightening of screws.
Product end of life instruction.
This Lighting product is in the scope of EU 2019/2020 directive on Waste Electrical and Electronic Equipment (WEEE).
This product must be disposed according to the legislation. This document is intended for use by end of life recyclers or
treatment facilities. It provides the basic information to assure an appropriate end of life treatment for the components
and materials of the product. Please follow pictured diagram on the back of this manual showing how to dismantle the
product into different components which should be disposed correctly. These components would consist of plastic, metal
and electronic materials. It is the responsibility of the end user to dispose of this product correctly. www.weeeireland.ie or
contact your local council for further information.
For more information contact:
Instruction Manual
Outdoor Bulkhead Light Fitting
Product Code: S100B-BL, S100BL-WH
Unit 7/8 Ashbourne Business Centre, Ballybin Road, Ashbourne, Co. Meath, Ireland, A84 YP58,
Phone: 00353 1 835 7447
Unit 32 Junction One Business Park, Valley Road, Birkenhead, Merseyside, UK, CH41 7ED,
0330 551 7000
UK Ph:
Website: www.sgd.ie
IP65
years
Quality
Assurance

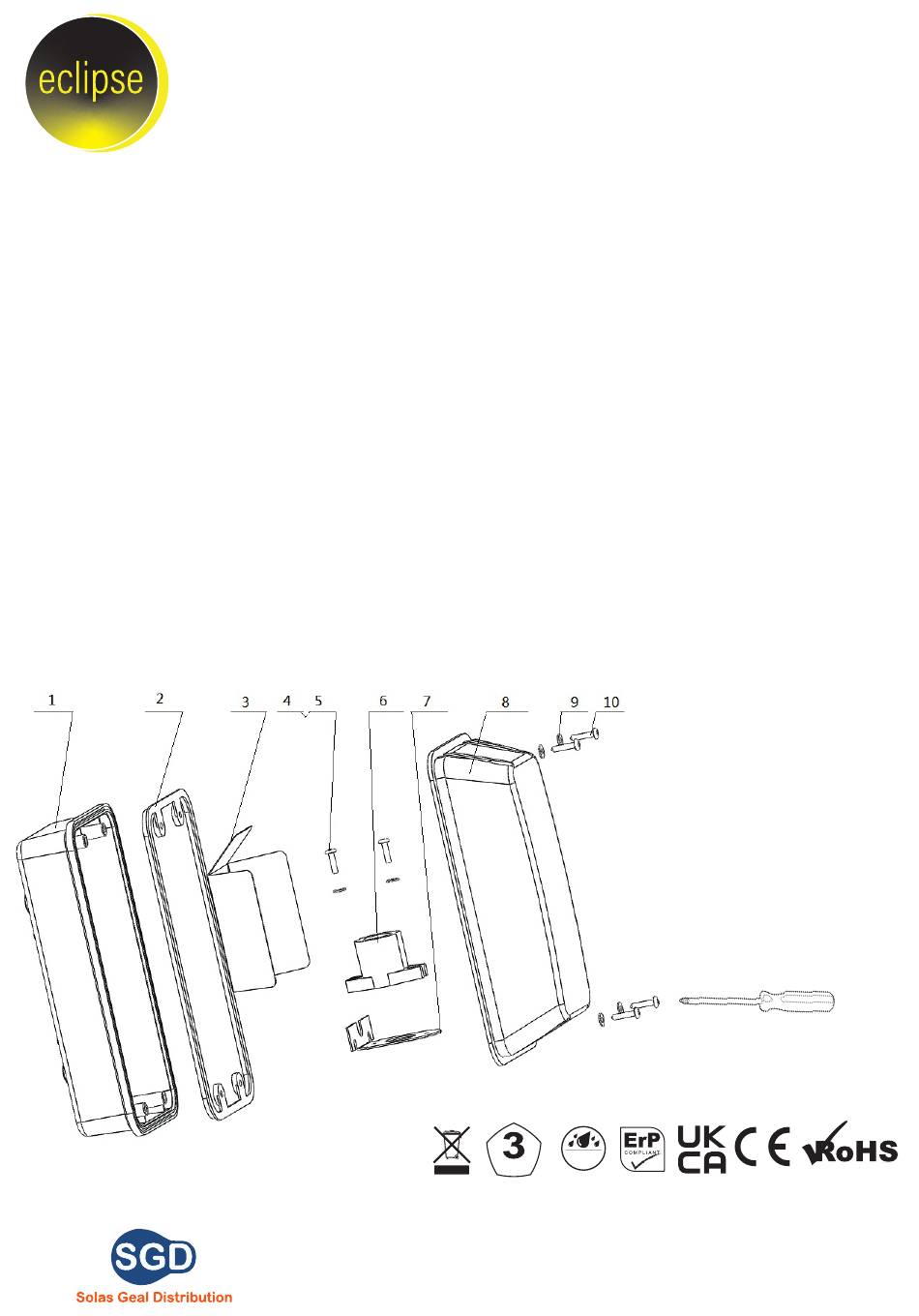

NO PART NAME
