ALLLED ASC/WIFI/APP/GATE Installation Manual & User Manual

Safety
• Do not cover the ground contact.
• Do not place any material near the luminaire. Ensure a minimum distance of 0.5M.
• Do not insert objects into the luminaire.
• Do not clean using any solvent based abrasive or aggressive product.
• Do not pull any cables connected to the product.
• Do not direct the luminaire into a persons eyes, as this unit may have an intense light output, which if
incorrectly used may cause eye damage.
• Light engines/LED'S and other light sources may heat up, please take care when handling the prod-
ucts.
• The manufacturer will not be deemed liable or held responsible for any damages caused by faults or
manufacturing defects that may be present in any of its products or the misuse or incorrect installation
of this device. Please refer to our trouble shooting guide for further information.
• The manufacturer will not be held liable for any death(s) or injuries caused by misuse or poor installation
or any unreported faults of this product version or versions thereof.
• LED's are sensitive to electrostatic discharge. Do not touch the surface of the LED module.
• Do not connect to a temporary electricity supply, this may damage the electronics.
• Light fittings with an integrated emergency option are with a separate installation and wiring leaflet.
Please refer to this manual for further details. If the manual is unavailable please contact an ALL LED
representative for assistance.
Returns & Faulty Items
• If any problem is encountered during or after installation, please call ALL LED technical department to
get the problem resolved ASAP.
• Please do not just return the item to the outlet you purchased it from, as you are only entitled to a
replacement or refund after the unit has undergone testing and the unit has been confirmed as having a
manufacturing defect/fault. Your statuatory rights are not affected.
• The manufacturer will not be deemed liable or held responsible for any damages caused by faults or
manufacturing defects that may be present in any of its products or the misuse or incorrect installation
of this device. Please refer to our trouble shooting guide for further information.
• All installations must be carried out in accordance with this installation guide and user manual.
• All goods are supplied under the terms and conditions of ALL LED LTD, a copy of which may be ob-
tained upon written request.
Environmental Protection
Waste electrical products
should not be disposed of
with household waste. Please
recycle where facilities exist.
Check with your Local Authority
or retailer for recycling advice
This product supplied with a limited 3 year guarantee, subject to terms and conditions.
The manufacturer will not be deemed liable or held responsible for any damages caused
by faults or manufacturing defects that may be present in any of its products or the misuse
or incorrect installation of this device
Your statuatory rights are not affected.
3
INSTALLATION GUIDE & USER MANUAL
ASC/WIFI/APP/GATE
ENSURE POWER SUPPLY IS OFF WHEN HANDLING ANY ELECTRICAL
• This product may need to be installed by a qualified electrical installer.
• Please read this guide in its entirety to fully understand the products before attempting any install.
• All electrical work should be completed in accordance with the latest IET regulations, and/or any other relevant
rules, regulations or laws of the country in which it is being installed.
• The item must be installed in isolation from any insulating material and is adequately ventilated to prevent premature
failure.
• Ensure power supply is isolated prior to installation, maintenance or performing any other form of electrical work.
• The company MUST be contacted immediately for advice or swift resolution of any matters concerning any of ALL
LED's products.
Technical Specifications
PRODUCT CODE
Operation voltage
Operation Frequency

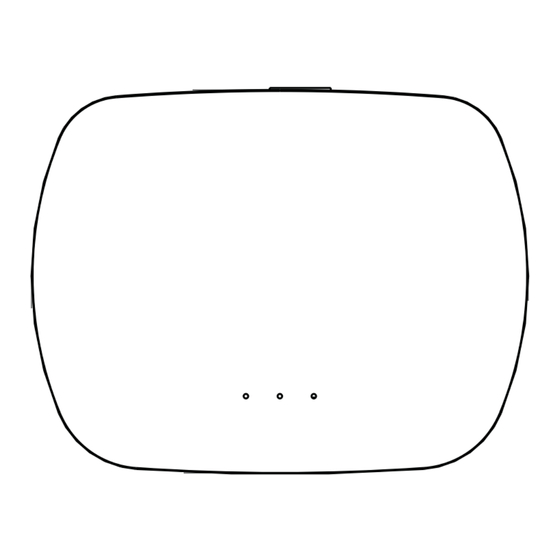

Dimensions (mm)
110 mm
EQUIPMENT.
ASC/WIFI/APP/GATE
220-240V AC (Adapter)
868MHz
25 mm
!
PLEASE READ
BEFORE USE!
1
