Panasonic NN-TK73NC Installation Instructions Manual

Installation
Instructions
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT
•
for local inspector's use.
IMPORTANT
•
and ordinances.
• Note to Installer – Be sure to leave these instructions
with the Consumer.
• Note to Consumer – Keep these instructions for future
reference.
• Skill level – Installation of this appliance requires basic
mechanical and electrical skills.
• Completion time – 1 to 3 hours
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
• This kit and microwave are approved for installation
alone or above any single electric wall oven. Do not
mount adjacent (within 2 feet) to any range, cooktop,
gas oven, or other microwave.
• This product is to be installed 3 feet above floor level.
• Do not alter or modify any part of this kit or the oven.
• For easier installation and personal safety, we
recommend that two people install this microwave
oven.
• Unplug the microwave oven before attempting
installation of this kit.
WARNING
— This oven must be plugged into a
properly grounded 3-hole, 120 volt receptacle as required
by the National Electrical Code.
WARNING
— Before beginning the installation,
switch power off at service panel and lock the service
disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
— Save these instructions
— Observe all governing codes
Microwave Oven
Built-In Trim Kits
NN-TK73NC / NN-TK72NC

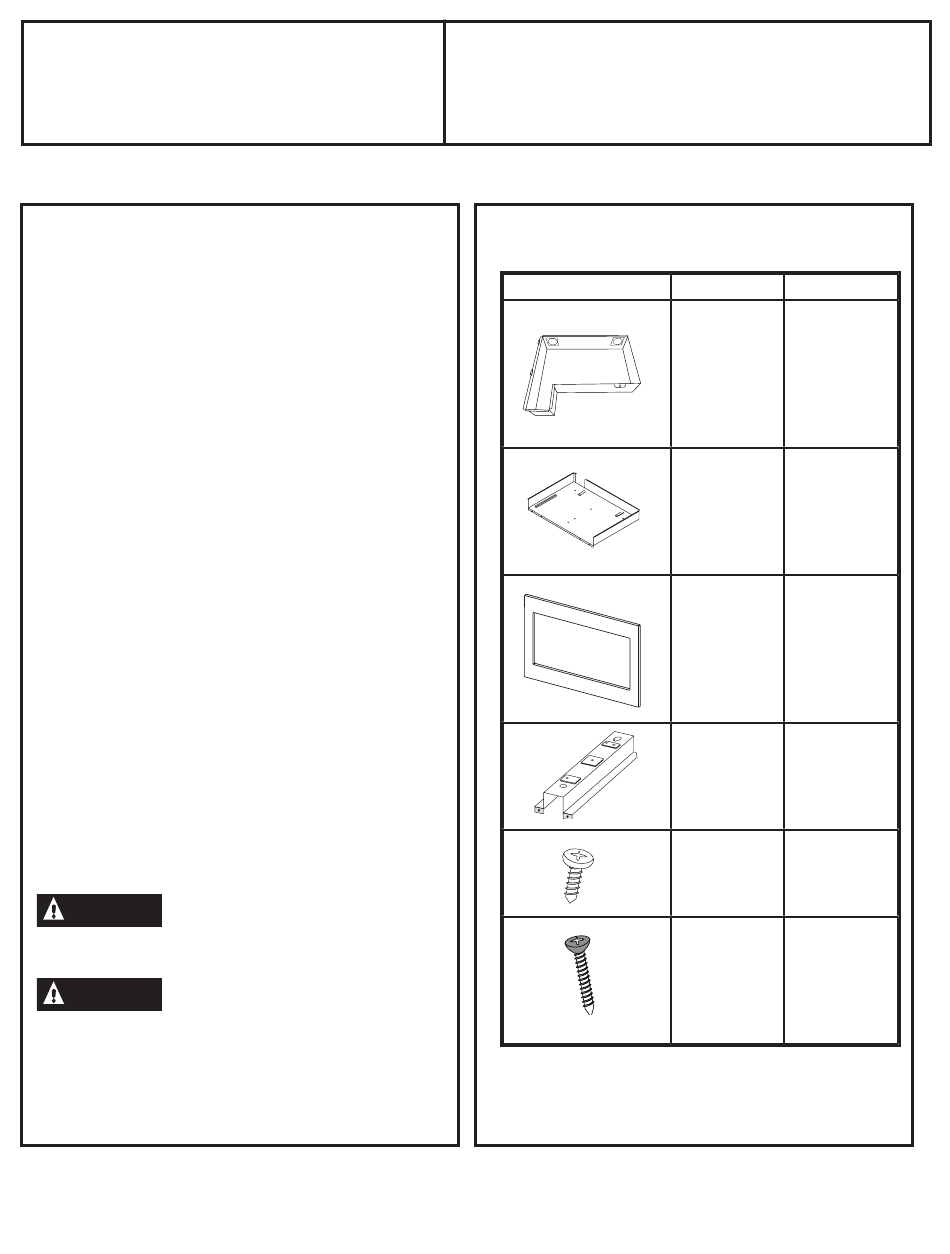

PARTS INCLUDED
PART
NOTE: This kit has extra screws to prevent the technician
from spending extra time locating a replacement in case
they lose one during installation.
1
QUANITY
Rear Duct 1
Bottom Duct
1
Trim Kit
1
Frame
Rail
2
16 required
Short Screws 3 extra
Long Wood
Screws 4 required
2 extra
