Summary of Contents for Froggit DP250

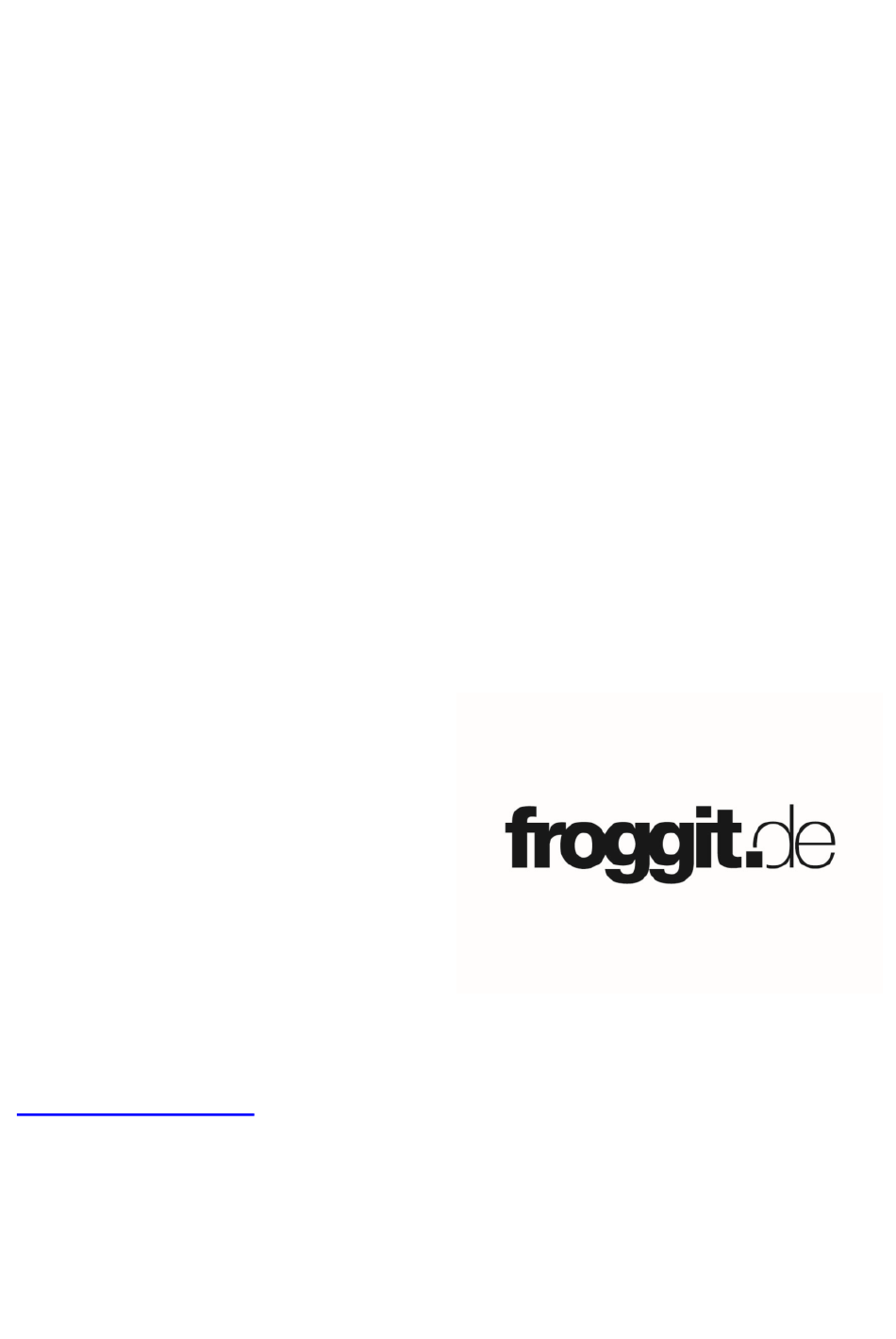

- Page 1 DP250 5-In-1 CO2/PM2.5/PM10/Temperature/Hum idity Indoor Air Quality Sensor Manual (EN) Support/updates/manuals/spare parts/compatible products: www.froggit.de...
-
Page 2: Table Of Contents
Contents 1. Introduction ..........2 2. Unpacking ............ 3 3. Features ............4 4. Sensor Set Up ..........7 5. Sensor Installation ......... 9 6. Wi-Fi Configure with gateway ...... 11 6.1 Pair with Gateway ........11 6.2 Wi-Fi Connection for the Gateway ... 12 7. -
Page 3: Unpacking
Unpacking Open your box and inspect that the contents are intact (nothing broken) and complete (nothing missing). Inside you should find the following: QTY Item Description Particle Detection Sensor (PM2.5 / PM10 / /CO2 / Temperature / Humidity 5-In-1) USB Cable User Manual Table: Package content If any component is missing from the package, or broken,... -
Page 4: Features
Features Particle Detection Sensor PM2.5, PM10, Measures indoor concentration , Temperature and Humidity every 60 seconds when powered with USB or detecting every 10 minutes when powered with batteries only. USB connection for indoor use only CO2 value calibration function available on the ... - Page 5 When paired with a DP1500 Wi-Fi Gateway: Monitor live sensor data on the Live Data page of the WS View app (requires the gateway and your phone using the same Wi-Fi network) Displays current PM2.5 PM10 concentration/AQI and 24H AQI and air quality level index on the Live Data page of the WS View app Displays current CO...
- Page 6 scrolls displaying on the screen every 5 seconds Calibration function available for PM2.5 value When uploaded to Ecowitt.net Weather Server: View current sensor data & history records & graph on the website Set and receive email alerts from the server ...
-
Page 7: Sensor Set Up
Sensor Set Up 1. Remove the battery door on the base of the air quality sensor as shown in Figure 1 Figure 1 Description Description Red LED Indicator Battery Compartment (RF transmission) Cover AC Adapter USB Battery Compartment Power Port... - Page 8 2. Insert two AA batteries and close the battery door. Note: The batteries (not included) are mainly for backup purpose. 3. Connect the USB cable between the sensor and an AC adapter(not included). Note: After inserting the batteries or connecting AC power, the sensor LED indicator will light for 3 seconds –...
-
Page 9: Sensor Installation
Sensor Installation Before install the sensor into its permanent location, you may go to Section 6 to configure with the gateway first. Once the sensor has been confirmed working correctly, then you can go back here. Place the sensor on a horizontally surface. Note that the vents must be clear of any obstructions, and we recommend placement away from other electronic devices to prevent interference. - Page 10 Radio Frequency Interference (RFI). If you have other devices using the same RF frequency and communication is intermittent, try turning off these other devices for troubleshooting purposes. You may need to relocate the transmitters or receivers to avoid intermittent communication. Line of Sight Rating.
-
Page 11: Wi-Fi Configure With Gateway
6.1 Pair with DP1500 If DP1500 has been in operation, and you have never had any DP250 sensor setup before, just power up the sensor and DP1500 will pick sensor data automatically. If a DP250 sensor has been hooked on DP1500 before,... -
Page 12: Wi-Fi Connection For The Gateway
6.2 Wi-Fi Connection for the DP1500 For this part, please refer to the manual of the DP1500 Wi-Fi gateway. Any question, please contact the customer service. View Online Data on WS View When the Wi-Fi configuration is done, you can view the live data of your sensor on the WS View application. - Page 13 Note: The DP250 sensor data can be only viewed on the Live Data interface since it doesn’t support uploads to weather underground. If you choose to upload the data to the Ecowitt.net weather server: https://www.ecowitt.net, you can view the live data/history graph and download the records on the website.
-
Page 14: Appendix
Appendix Air Quality Index (AQI) for the PM2.5 Concentration (24hr) PM2.5 Concentration Air Pollution Level ug/m3 0 - 50 Good 0.0-12.0 51 -100 Moderate 12.1-35.4 101-150 Poor 35.5-55.4 151-200 Unhealthy 55.5-150.4 201-300 Severe 150.5-250.4 300+ Hazardous 250.5+... - Page 15 Air Quality Index (AQI) for the PM10 Concentration (24hr) PM2.5 Concentration Air Pollution Level ug/m3 0 - 50 Good 0-54 51 -100 Moderate 55-154 101-150 Poor 155-254 151-200 Unhealthy 255-354 201-300 Severe 355-424 300+ Hazardous 425+ Carbon Dioxide Levels and potential health problems are indicated below: 250-350 ppm: background (normal) outdoor air ...
- Page 16 1,000-2,000 ppm: level associated with complaints of drowsiness and poor air 2,000-5,000 ppm: level associated with headaches, sleepiness, and stagnant, stale, stuffy air; poor concentration, loss of attention, increased heart rate and slight nausea may also be present. >5,000 ppm: This...
-
Page 17: Sensor Calibration
Sensor Calibration CO2:There is an easy way to find the CO2 sensor is drifted or not: put the sensor in outdoor open air locations, away from any combustion exhausts, wait for 30 minutes, you should see the CO2 reading is 420ppm +/-10. If it is far from this reading, you can wait for some more time, and test it during night to confirm. - Page 18 PM2.5: It is not possible to calibrate on the sensor side, and you can calibrate through WS View App when paired with DP1500 or on the console when paired with HP1000SE PRO / HP1000SE PRO Ultrasonic, which saves the offset value on the gateway side before sending data to www.ecowitt.net server.
-
Page 19: Specification
Specification Measurement Range Accuracy Resolution >100ug/m3, ±15% PM 2.5 0~999ug/m3 1ug/m3 <100ug/m3, ±15ug/m3 >100ug/m3, ±25% PM 10 0~999ug/m3 1ug/m3 <100ug/m3, ±25ug/m3 400- 10000ppm 1ppm 40000ppm ±(30ppm ±3%) -40°C – ± 1°C, 0.1°C, Temperature 60°C (-40°F - 140°F) ± 2°F 0.1°F Humidity 0%~99% ±... - Page 20 Transmission distance in open field: 100m Frequency: 868Mhz Sensor reporting interval: 1 minute (10 minutes when only powered by batteries) Power consumption Particle Detection Sensor: AC power (5V 1A) - Not included 2 x AA 1.5V Batteries for back up - Not included Note: If you have a DP200 PM2.5 sensor, the reading of PM2.5 may be different due to different sensor type used.
- Page 21 Danger of burns: Caution! Leaking / leaking battery acid can lead to burns! Avoid contact of battery acid with eyes, mucous membranes and skin. In case of contact, rinse the affected areas immediately with clear water and consult a doctor. Risk of electric shock: Children must not be unattended with the device, because the device contains electronic parts which are operated by...
- Page 22 service department. Never expose the device to water! Protect the device from vibrations. Only use recommended batteries. Never mix batteries - Always replace empty batteries with a complete set of full power batteries. If the unit is not powered for a longer period of time or is not in use, remove the batteries from the unit.
- Page 23 We accept no liability for technical errors or printing errors, and their consequences. All trademarks and copyrights are acknowledged. www.froggit.de...
- Page 24 HS Group GmbH & Co. KG Escherstr.31 50733 Koeln Germany Telefon 0221 / 367 48 05 E-Mail info@hs-group.de Registergericht Amtsgericht Koeln HRA 26493 Komplementaer: HS Group Verwaltungsgesellschaft mbH Sitz Koeln Registergericht Amtsgericht Koeln HRB 64734 Geschaeftsfuehrer: Peter Haefele, Carl...
- Page 25 Hereby we declare, HS-Group GmbH & Co.KG, Escherstr. 31, 50733 D-Cologne, that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity for this product can be found at: www.froggit.de or on request.
