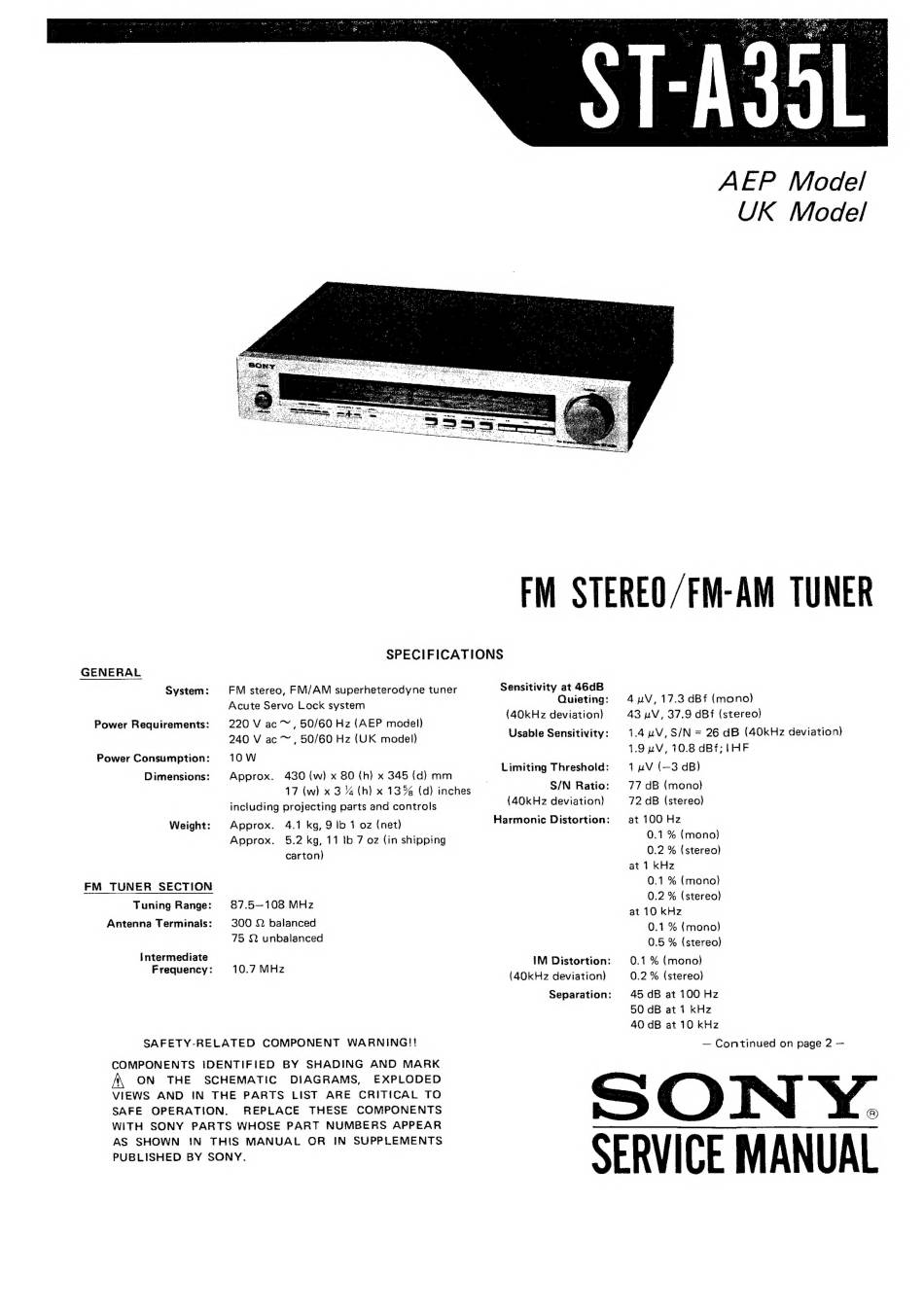

Sony ST-A35L Service Manual

GENERAL
System:
Power Requirements:
Power Consumption:
Dimensions:
Weight:
FM TUNER SECTION
Tuning Range:
Antenna Terminals:
Intermediate
Frequency:
AEP Model
UK Model
FM STEREO/FM-AM TUNER
SPECIFICATIONS
FM stereo, FM/AM superheterodyne tuner
Acute Servo Lock system
220 V ac ~, 50/60 Hz (AEP model)
240 V ac ~ , 50/60 Hz (UK model)
10 W
Approx. 430 (w) x 80 (h) x 345 {d) mm
17 (w) x 3% (h) x 13% (d) inches
including projecting parts and controls
Approx. 4.1 kg, 9 Ib 1 oz (net)
Approx. 5.2 kg, 11 lb 7 oz (in shipping
carton)
87.5—108 MHz
300 2 balanced
75 2 unbalanced
10.7 MHz
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TO
SAFE OPERATION.
REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN
IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
Sensitivity at 46dB
Quieting:
(40kHz deviation}
Usable Sensitivity:
Limiting Threshold:
S/N Ratio:
{(40kHz deviation)
Harmonic Distortion:
IM Distortion:
(40kHz deviation)
Separation:
4 pV, 17.3 dBf (mono)
43 nV, 37.9 dBf (stereo)
1.4uV, S/N = 26 dB (40kHz deviation)
1.9uV, 10.8 dBf; |HF
1 nV (-3 dB)
77 dB (mono)
72 dB (stereo)
at 100 Hz
0.1 % (mono)
0.2 % (stereo)
at 1 kHz
0.1 % (mono)
0.2 % (stereo)
at 10 kHz
0.1 % (mono)
0.5 % (stereo)
0.1 % (mono)
0.2 % (stereo)
45 dB at 100 Hz
50 dB at 1 KHz
40 dB at 10 kHz
— Continued on page 2 —
SON Y.
SERVICE MANUAL
