INSTRUCTION MANUAL

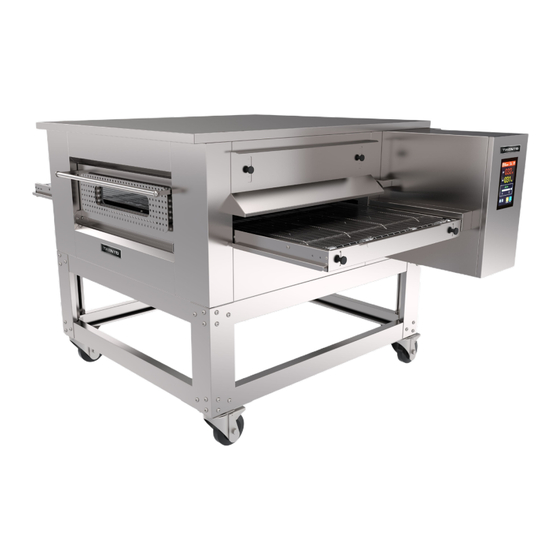

Conveyor Oven
Item
46725
Model
CE-IT-0500
Warning!
Before you begin using your appliance, PLEASE READ
AND UNDERSTAND THIS DOCUMENT CAREFULLY
before installing, operating, maintaining, or servicing.
There are many important safety messages in this
manual and on your appliance. Always read all safety
messages.
Failure to do so can result in appliance failure, property
damage, serious injury or death. Appliance failure, injury
or property damage due to improper installation is not
covered by warranty.
WARRANTY
PARTS AND LABOUR
1-833-487-3686
DO NOT RETURN THIS PRODUCT TO THE STORE!
For questions or assistance with this product, call
TRENTO Toll free: 1-833-487-3686 or visit the support
section from our website, www.trentoequipment.com
www.trentoequipment.com
E L E V A T I N G C U L I N A R Y E X C E L L E N C E
Stop!
Version: Revised - 07/11/2024
trentoservice@trentoequipment.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CE-IT-0500 and is the answer not in the manual?

Questions and answers

Related Manuals for TRENTO CE-IT-0500

Summary of Contents for TRENTO CE-IT-0500

  • Page 1 AND UNDERSTAND THIS DOCUMENT CAREFULLY before installing, operating, maintaining, or servicing. For questions or assistance with this product, call TRENTO Toll free: 1-833-487-3686 or visit the support There are many important safety messages in this section from our website, www.trentoequipment.com manual and on your appliance.

  • Page 2: Table Of Contents

    E L E V A T I N G C U L I N A R Y E X C E L L E N C E TABLE OF CONTENTS Section Page General Information --------------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------------- 4 - 6 Technical Specifications ------------------------------------------------------------------------------- 6...

  • Page 3: General Information

    E L E V A T I N G C U L I N A R Y E X C E L L E N C E GENERAL INFORMATION Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan and Omcan Inc.

  • Page 4: Safety And Warranty

    E L E V A T I N G C U L I N A R Y E X C E L L E N C E GENERAL INFORMATION consignes de sécurité. Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces instructions pour une référence ultérieure.
  • Page 5 E L E V A T I N G C U L I N A R Y E X C E L L E N C E SAFETY AND WARRANTY WARNINGS FOR THE USER The environmental conditions of the location where the oven is installed must have the following characteristics: •...

  • Page 6: Technical Specifications

    In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! TECHNICAL SPECIFICATIONS Model CE-IT-0500 Item Number 46725 Power 14.2 kW Current Output per Hour (13”...

  • Page 7: Installation

    E L E V A T I N G C U L I N A R Y E X C E L L E N C E INSTALLATION OVEN UNLOADING AND HANDLING The oven must be unloaded and handled by a qualified forklift operator. OVEN POSITIONING AND OVERLAPPING Remove the conveyor belt.
  • Page 8 E L E V A T I N G C U L I N A R Y E X C E L L E N C E INSTALLATION MAXIMUM NUMBER OF OVERLAYABLE OVENS: 3 Remove any polystyrene protections and remove the protective film, avoiding the use of tools that can damage the surfaces.
  • Page 9 E L E V A T I N G C U L I N A R Y E X C E L L E N C E INSTALLATION For a correct electrical connection, the appliance must be: • Connected to the mains ground (green-yellow wire). •...
  • Page 10 E L E V A T I N G C U L I N A R Y E X C E L L E N C E INSTALLATION • Be connected to an omnipolar circuit breaker allowing complete disconnection in overvoltage III category conditions.

  • Page 11: Operation

    E L E V A T I N G C U L I N A R Y E X C E L L E N C E OPERATION CONTROL PANEL 1. Off button. 2. Date and time display. 3. Top setpoint. 4.
  • Page 12 E L E V A T I N G C U L I N A R Y E X C E L L E N C E OPERATION SELECT LANGUAGE • Press the menu button. • Press the LCD Settings button. •...
  • Page 13 E L E V A T I N G C U L I N A R Y E X C E L L E N C E OPERATION DATE AND TIME SETTING • Press the menu button. • Press the LCD settings button. •...
  • Page 14 E L E V A T I N G C U L I N A R Y E X C E L L E N C E OPERATION TOP SETPOINT • Press on the top setpoint to change the set value. •...
  • Page 15 E L E V A T I N G C U L I N A R Y E X C E L L E N C E OPERATION COOKING TIME SETTINGS The procedures for setting the cooking time are described below. •...
  • Page 16 E L E V A T I N G C U L I N A R Y E X C E L L E N C E OPERATION COOKING PROGRAM SETTINGS You can set up to ten different cooking programs, by using the top, bottom and cooking time according to your recipes and needs.
  • Page 17 E L E V A T I N G C U L I N A R Y E X C E L L E N C E OPERATION SET FUNCTION POWER ON/OFF “Set function power on/off” allows you to set the oven on/off program and simultaneously start a different program.
  • Page 18 E L E V A T I N G C U L I N A R Y E X C E L L E N C E OPERATION DAILY SWITCH ON/OFF This function automatically switches the oven on and/or off by setting the desired start and stop times. •...
  • Page 19 E L E V A T I N G C U L I N A R Y E X C E L L E N C E OPERATION WEEKLY SWITCH ON/OFF This function automatically switches the oven on and off by following a weekly calendar on days and times set according to your production needs.
  • Page 20 E L E V A T I N G C U L I N A R Y E X C E L L E N C E OPERATION METHOD OF USE FUNCTIONAL VERIFICATION Before switching the oven on, make sure that: •...

  • Page 21: Maintenance

    E L E V A T I N G C U L I N A R Y E X C E L L E N C E OPERATION 3 min. 30 sec. Italian-type round pizza. 320°C / 608°F - 4 min. 30 Mesh sec.
  • Page 22 E L E V A T I N G C U L I N A R Y E X C E L L E N C E MAINTENANCE • Do not use water through pipes or high pressure washers. • Do not use abrasive materials or sponges to clean the door glasses and the metal parts of the oven.
  • Page 23 E L E V A T I N G C U L I N A R Y E X C E L L E N C E MAINTENANCE BELT DISASSEMBLY AND RE-ASSEMBLY Once the “safety precautions” have been carried out, proceed as follows: BELT DISASSEMBLY INSTRUCTIONS To reassemble it, proceed in the opposite...
  • Page 24 E L E V A T I N G C U L I N A R Y E X C E L L E N C E MAINTENANCE MESH PULL Once the “safety precautions” have been carried out, proceed as follows: To tighten the mesh, twist the nuts clockwise;...

  • Page 25: Troubleshooting

    E L E V A T I N G C U L I N A R Y E X C E L L E N C E TROUBLESHOOTING Problem Possible Cause Solution The oven does not switch on, Lack of electricity. Check socket, plug and the display is off.

  • Page 26: Parts Breakdown

    E L E V A T I N G C U L I N A R Y E X C E L L E N C E PARTS BREAKDOWN ITEM MODEL 46725 CE-IT-0500 General Assembly Page 26 / 40...
  • Page 27 E L E V A T I N G C U L I N A R Y E X C E L L E N C E PARTS BREAKDOWN ITEM MODEL 46725 CE-IT-0500 Conveyor Page 27 / 40...
  • Page 28 E L E V A T I N G C U L I N A R Y E X C E L L E N C E PARTS BREAKDOWN ITEM MODEL 46725 CE-IT-0500 Control Panel Page 28 / 40...
  • Page 29 E L E V A T I N G C U L I N A R Y E X C E L L E N C E PARTS BREAKDOWN ITEM MODEL 46725 CE-IT-0500 Electrical Components Page 29 / 40...
  • Page 30 E L E V A T I N G C U L I N A R Y E X C E L L E N C E PARTS BREAKDOWN ITEM MODEL 46725 CE-IT-0500 Door Assembly Page 30 / 40...
  • Page 31 E L E V A T I N G C U L I N A R Y E X C E L L E N C E PARTS BREAKDOWN ITEM MODEL 46725 CE-IT-0500 Ventilation Page 31 / 40...
  • Page 32 E L E V A T I N G C U L I N A R Y E X C E L L E N C E PARTS BREAKDOWN ITEM MODEL 46725 CE-IT-0500 Back Panel Page 32 / 40...
  • Page 33 E L E V A T I N G C U L I N A R Y E X C E L L E N C E PARTS BREAKDOWN ITEM MODEL 46725 CE-IT-0500 General Assembly Item No. Description Position Item No.
  • Page 34 E L E V A T I N G C U L I N A R Y E X C E L L E N C E PARTS BREAKDOWN ITEM MODEL 46725 CE-IT-0500 Electrical Components Item No. Description Position Item No.

  • Page 35: Electrical Schematics

    E L E V A T I N G C U L I N A R Y E X C E L L E N C E ELECTRICAL SCHEMATICS ITEM MODEL 46725 CE-IT-0500 Description Position Description Position Description Position SSR1-...

  • Page 36: Notes

    E L E V A T I N G C U L I N A R Y E X C E L L E N C E NOTES ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
  • Page 37 E L E V A T I N G C U L I N A R Y E X C E L L E N C E NOTES ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
  • Page 38 E L E V A T I N G C U L I N A R Y E X C E L L E N C E NOTES ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 39: Warranty Registration

    WARRANTY REGISTRATION Thank you for purchasing an Trento product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 40 E L E V A T I N G C U L I N A R Y E X C E L L E N C E TRENTO IS A SIGNATURE LINE OF PROFESSIONAL RESTAURANT EQUIPMENT FROM OMCAN OFFERING PREMIUM EUROPEAN BRANDS TO THE NORTH AMERICAN MARKET.
