PNI SafeHome PT863P
Siguranta automata inteligenta
EN
User manual .........................................................
RO
Manual de utilizare ..............................................
WIFI, 1-63A
Smart circuit breaker
1
13

Advertisement

loading
Need help?

Need help?

Do you have a question about the SafeHome PT863P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PNI SafeHome PT863P

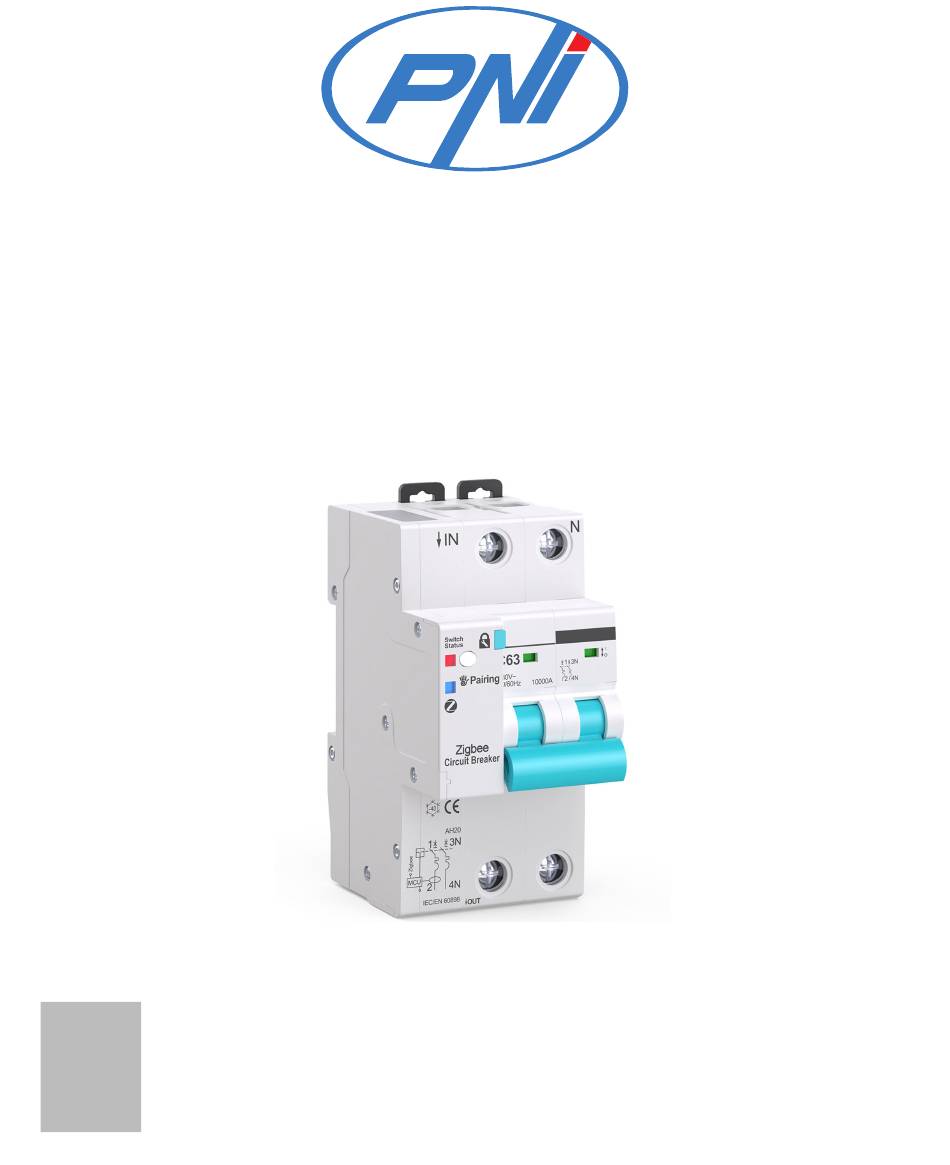

  • Page 1 PNI SafeHome PT863P WIFI, 1-63A Smart circuit breaker Siguranta automata inteligenta User manual ............Manual de utilizare ..........
  • Page 2 Introduction PThe NI SafeHome PT863 is an intelligent automatic fuse designed for residential or industrial use to remotely start or stop a circuit, delay or schedule a specific power supply, and monitor power consumption. Also, the product has the classic functions of an automatic fuse: overload and short circuit protection.
  • Page 3 The neutral wire and the phase wire must be connected to the corresponding position (up). Connect the product to a electrical 230 V AC • circuit acording to diagram The first configuration should be done closer to • the router. The Tuya Smart application Search for the "Tuya Smart"...
  • Page 4 Product Description A,B,I,-Unavailable; C- Phase pole; D-Lock; E, F, G - Power LEDs + Network status + Functional button; H- Parameters; J-Circuit diagram; K- Negative pole; L- Model; M-Contact indicator; N- Wire diagram; O- Operating handle Status LED: - blue - the fuse is disconnected - red - fuse is off - rarely blinks red - it is in off-grid mode 3 User Manual...
  • Page 5 - red fast flashing - it is in pairing mode - blue flashing fast - it is in connected mode Installation - The automatic fuse complies with the DIN standard and must be installed only in electrical panels. - The fuse is connected in the circuit according to the diagrams below by qualified personnel 4 User Manual...
  • Page 6 Set the device to pairing mode Check the status LED if the fuse is in pairing mode: • fast flashing red To put the device in pairing mode, press the function • button for 5-10 seconds until the red LED flashes quickly Start the addition procedure from the dedicated Tuya •...
  • Page 7 Pairing procedure Warning: The product only supports 2.4 GHz Wi-Fi networks. The Wi-Fi network password must not contain special characters such as: ~! @ # $% ^ & * (). • Activate GPS Location on your phone. Make sure the router, phone and fuse are as close as •...
  • Page 8 7 User Manual...
  • Page 9 Wait for the device to pair. • • The device has been successfully added, you can choose the device name and installation location. 8 User Manual...
  • Page 10 Device control options in the application - Advanced device settings - Main switch - Timer - Power - History - Advanced device information Click the pencil button in the upper right corner of the application to manage and set the device. Device Name - change name and location of the device •...
  • Page 11 • Create Group - Devices added in the same group can be ordered together. FAQ & Feedback - Questions and solutions • related to the behavior of the device. • Add to home screen - Add a shortcut to the device on your phone screen •...
  • Page 12 Technical specifications Input voltage 230V AC Output voltage 230V AC Number of poles Rated current 1-63A adjustable Nominal short-circuit Icn=10kA Ics=10kA breaking capacity Applications 2P for residential or low commercial use Switching mode Manual switching/ Remote switching through the application WiFi Standard IEEE 802.11 b/n/g WiFi Frequency...
  • Page 13 Installation Standard pe sina DIN Working temperature –26°C ~ +80°C Moisture 5%-95% fara condensare size 87 x 79 x 55 mm Occupied space 3 locations Weight 370 gr 12 User Manual...
  • Page 14 Introducere PNI SafeHome PT863 este o siguranta automata inteligenta destinata utilizarii rezidentiale sau industriale pentru a porni sau opri de la distanta un circuit, pentru a intarzia sau a programa o anumita alimentare de curent si pentru a monitoriza consumul de curent. De asemenea, produsul are si functiile clasice ale unei sigurante automate: protectie la suprasarcina si scurtcircuit.
  • Page 15 de nul si firul de faza trebuie conectate la pozitia corespunzatoare ( sus). • Conectati produsul pe un circuit/ o sursa de alimentare de 230V conform schemei; • Prima configurare trebuie facuta recomandat mai aproape de router. Aplicatia Tuya Smart Cautati aplicatia „Tuya Smart”...
  • Page 16 Descriere produs A,B,I,-Indisponibil; C-Pol fază; D-Blocare; E, F,G - Leduri Alimentare +Stare retea + Buton functional; H-Parametri; J-Diagrama circuit; K-Pol Negativ; L-Model; M-Indicator contact; N- Diagrama fire; O-Clapeta pornit/oprit Status LED: - albastru - siguranţa e deconectata - roşu - siguranta este oprita - clipeste rar roşu - este in mod off-grid - clipeşte rapid roşu - este in mod de imperechere 15 Manual de utilizare...
  • Page 17 - clipeşte rad albastru - este in modul conectat Instalare - Siguranţa automată respectă standardul DIN şi este obligatoriu a se monta doar în tablouri electrice. - Siguranţa se conectează în circuit conform diagramelor de mai jos de către personal calificat 16 Manual de utilizare...
  • Page 18 Setati dispozitivul pe modul de imperechere Verificaţi ledul de stare dacă siguranţa este în modul de • împerechere: clipeşte rapid roşu Pentru a trece dispozitivul in modul de împerechere • apăsaţi 5-10 secunde butonul funcţional până ledul rosu clipeşte rapid Începeţi procedura de adăugare din aplicaţia dedicată...
  • Page 19 Procedura de împerechere Avertizare: Produsul suporta doar retele Wi-Fi de 2,4 GHz. Parola retelei Wi-Fi nu trebuie sa contina caractere speciale de tipul: ~! @ # $% ^ & * (). • Activati Locatia GPS pe telefon. • Asigurati-va ca routerul, telefonul si siguranta sunt cat mai aproape posibil pentru o configurare rapida.
  • Page 20 19 Manual de utilizare...
  • Page 21 • Asteptati imperecherea dispozitivului. • Dispozitivul a fost adaugat cu succes, puteti alege numele dispozitivului si locul de instalare. 20 Manual de utilizare...
  • Page 22 Optiuni control dispozitiv din aplicatie - Setari avansate dispozitiv - Comutator principal - Temporizator - Putere - Istoric - Informatii avansate dispozitiv Faceti clic pe butonul creion in coltul din dreapta sus al aplicatiei pentru gestionarea si setarea dispozitivului. • Device Name - modifica numele si locatia dispozitivului Device Information - afiseaza ID dispozitiv, nivel semnal •...
  • Page 23 Create Group - Dispozitivele adunate in acelasi grup pot • fi comandate impreuna. • FAQ & Feedback - Intrebari si solutii legate de comportamentul dispozitivului. • Add to home screen - Adaugati o scurtatura catre dispozitiv pe ecranul telefonului Check Device Network - Verificati calitatea conexiunii •...
  • Page 24 Specificatii tehnice Tensiune intrare 230V AC Tensiune iesire 230V AC Numar poli Curent nominal 1-63A reglabil Capacitate nominala de Icn=10kA Ics=10kA intrerupere la scurtcircuit Aplicatii 2P pentru uz rezidential sau comercial redus Mod comutare Comutare manuala/ Comutare de la distanta prin aplicatie Standard WiFi IEEE 802.11 b/n/g...
  • Page 25 Instalare Standard pe sina DIN Temperatura de lucru –26°C ~ +80°C Umiditate 5%-95% fara condensare Dimensiuni 87 x 79 x 55 mm Spatiu ocupat in tablou 3 locuri Greutate 370 g 24 Manual de utilizare...
  • Page 26 EU Simplified Declaration of Conformity SC ONLINESHOP SRL declares that Smart circuit breaker PNI SafeHome PT863 complies with the Directive RED 2014/53/UE. The full text of the EU declaration of conformity is available at the following Internet address: h t t p s : / / w w w . m y p n i . e u / p r o d u c t s / 9 8 1 3 / d o w n l o a d /...
