AARCOMM C200 Quick Start Manual

Handheld
Quick Start Guide
Aarcomm's Handheld Quick Start Guide provides
support for the following items, included in your
Aarcomm Handheld remote control system:

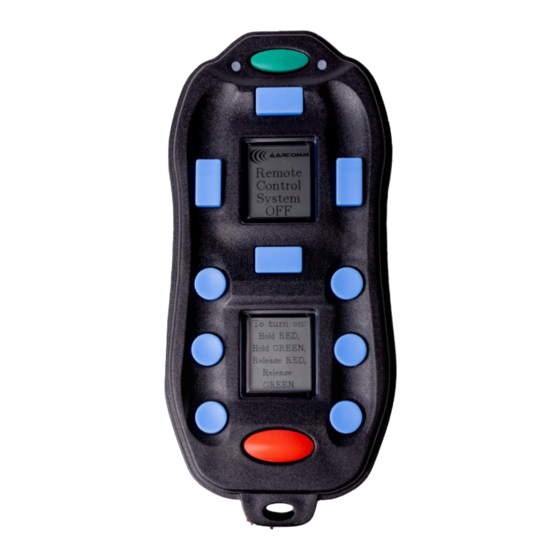

• Aarcomm handheld
• C220/C200 Receiver
• Antenna
• Universal Charging Cradle
• Wiring Harness

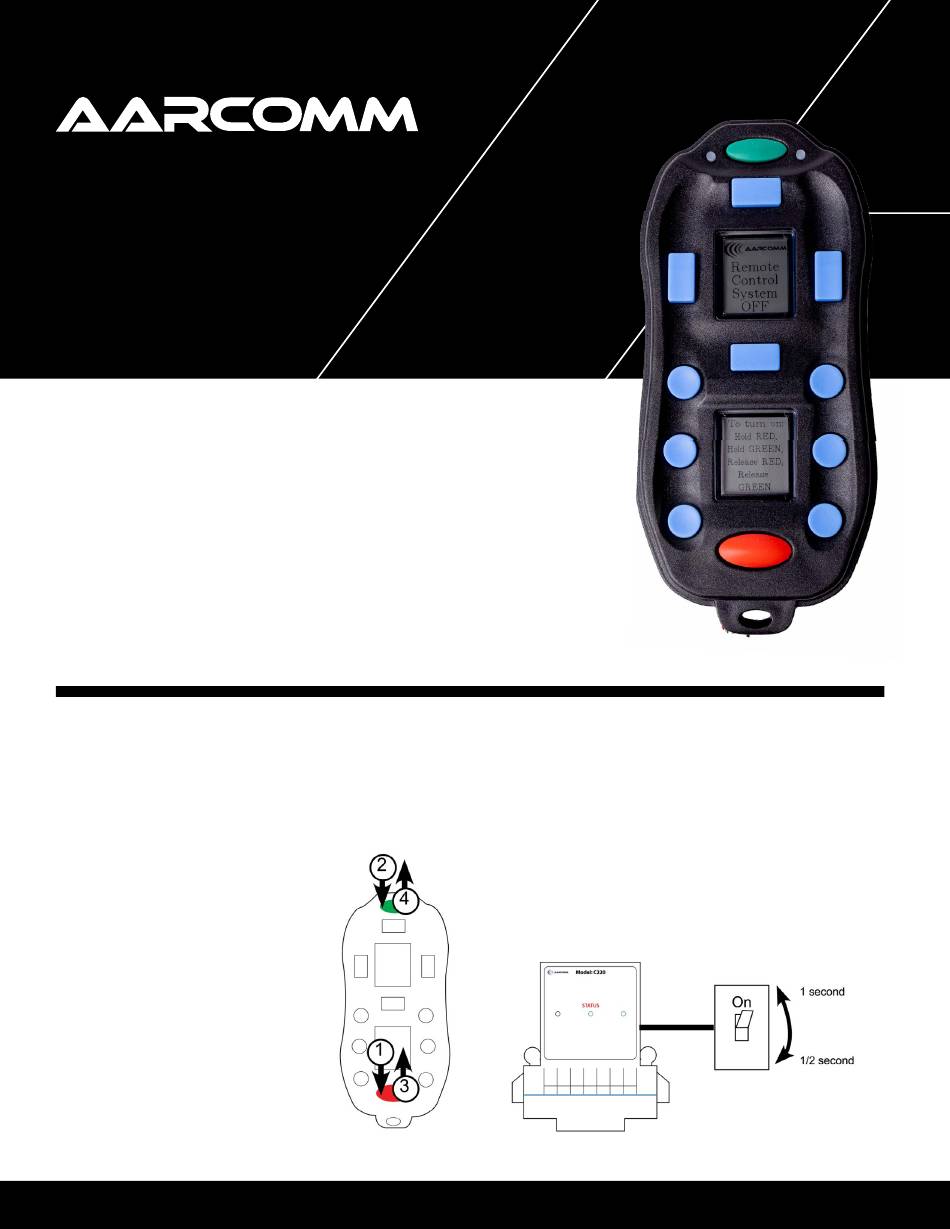

POWERING ON THE HANDHELD
The Aarcomm handheld requires a special sequence to turn on
to ensure all buttons are working correctly prior to start up, and
minimize any accidental powering up of the Handheld.
To power up the Aarcomm handheld:
• Press and hold the RED BUTTON
• Press and hold the GREEN BUTTON
• Release the RED BUTTON
• Release the GREEN BUTTON
Regular flashing GREEN LED:
System turned on but no link.
Solid, or short flashes of GREEN
System turned on and linked.
LED:
MATCHING INSTRUCTIONS
To successfully pair a handheld with a receiver, both devices
need to enter matching mode within a 60-second timeframe.
The receiver offers two different methods to activate matching
mode, while the handheld has one method available.
FIRST METHOD
1. Turn off the Aarcomm handheld.
2. Apply power to the C220.
