yellow jacket 60650 Manual

YELLOW JACKET
Designed to accommodate the full range of ductless mini-split flare nut sizes and torque requirements
Specifications:
• Precision torque wrench for exact tightening to 10-80 N-M or 7.4-59 ft. lb.
• Six interchangeable open end adapters supplied in kit: 17, 22, 24, 26, 27 and 29 mm
•
The N-M and foot-pound (FT-LB) scales are marked on the barrel of the wrench for easy and permanent reference.
•
The micrometer-type sleeve is easy to read and allows accurate pre-set torque values to be set. When the set torque is reached, the
wrench produces an audible click and a slight, safe release of tension to prevent over tightening.
• This product has been designed to be tough, durable and easy to use.
•
Includes blow-molded storage and carry case.
•
Accurate within 4% when measured per BSEN 26789 & ISO 6789 & ASME B107.14M & DIN3122
regardless of the open end adapter head used.
• The wrench kit weighs 7.3 lb (3.3 kg)
•
The wrench length with adapter is 16" (406 mm)
Operational Instructions:
1. Choose the required torque and turn the adjusting handle by turning clockwise to set the required torque.

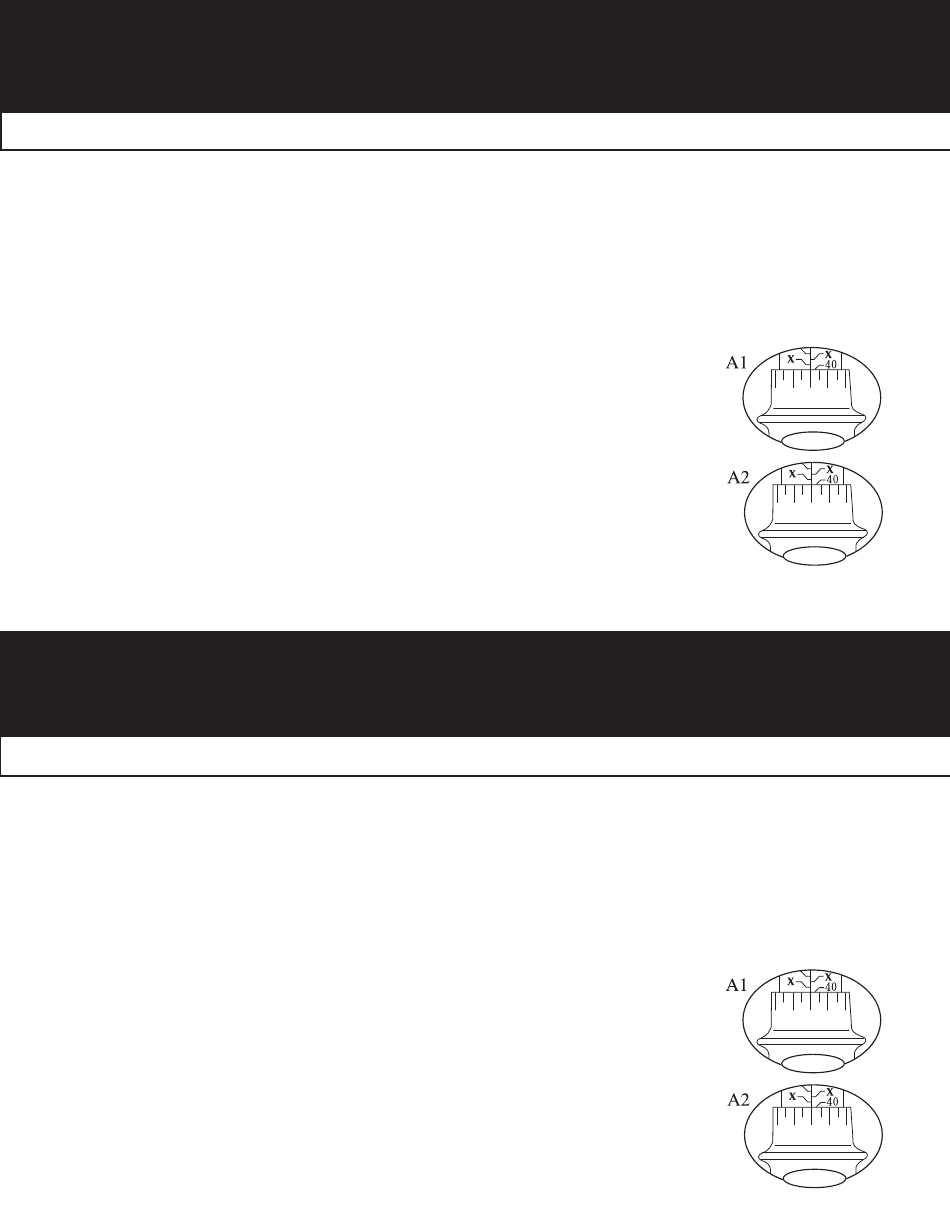

A. Turn the upper edge of the adjusting handle to 40 N-M. The reading "O" on
Example 1
(10-80 N-M) the handle must align with the center line of the scale perpendicularly so as
to acquire 40 N-M (Figure A1).
B. Then turn clockwise to align the reading of "3" on the adjusting handle with
the center line of the scale so as to acquire 43 N-M (Figure A2).
YELLOW JACKET
Designed to accommodate the full range of ductless mini-split flare nut sizes and torque requirements
Specifications:
•
Precision torque wrench for exact tightening to 10-80 N-M or 7.4-59 ft. lb.
•
Six interchangeable open end adapters supplied in kit: 17, 22, 24, 26, 27 and 29 mm
•
The N-M and foot-pound (FT-LB) scales are marked on the barrel of the wrench for easy and permanent reference.
• The micrometer-type sleeve is easy to read and allows accurate pre-set torque values to be set. When the set torque is reached, the
wrench produces an audible click and a slight, safe release of tension to prevent over tightening.
•
This product has been designed to be tough, durable and easy to use.
•
Includes blow-molded storage and carry case.
• Accurate within 4% when measured per BSEN 26789 & ISO 6789 & ASME B107.14M & DIN3122
regardless of the open end adapter head used.
•
The wrench kit weighs 7.3 lb (3.3 kg)
•
The wrench length with adapter is 16" (406 mm)
Operational Instructions:
1. Choose the required torque and turn the adjusting handle by turning clockwise to set the required torque.
Example 1 A. Turn the upper edge of the adjusting handle to 40 N-M. The reading "O" on
the handle must align with the center line of the scale perpendicularly so as
(10-80 N-M)
to acquire 40 N-M (Figure A1).
B. Then turn clockwise to align the reading of "3" on the adjusting handle with
the center line of the scale so as to acquire 43 N-M (Figure A2).
Precision Torque Wrench 60650
Precision Torque Wrench 60650
®
2 1 0 4 3
40 N-M
0 4 3 2 1
43 N-M
®
2 1 0 4 3
40 N-M
0 4 3 2 1
43 N-M
