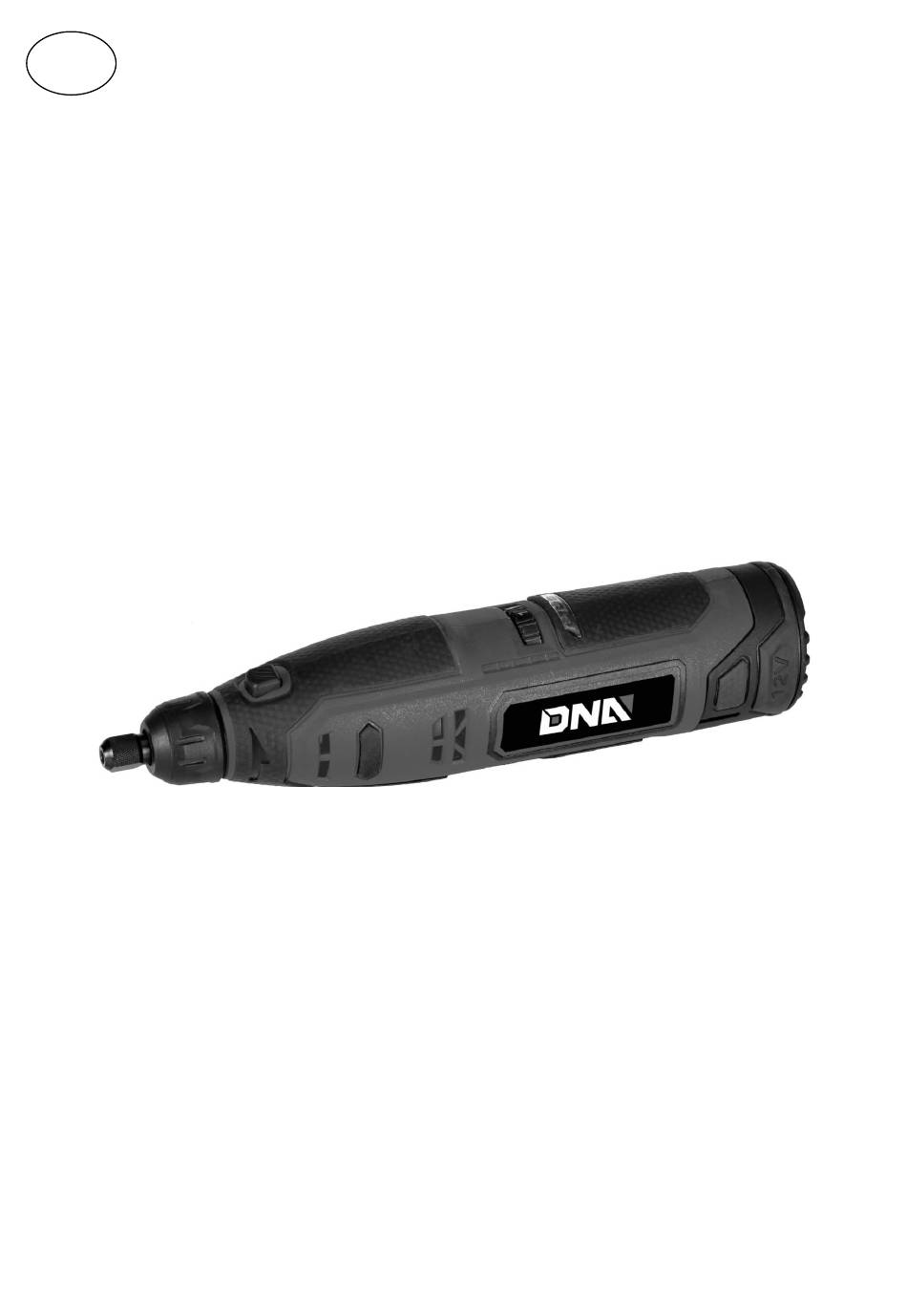

- Page 1 INSTRUCTION MANUAL Cordless Mini Grinder TOOLS-00163/00164 Power tool...
-
Page 2: Description Of The Symbols
DESCRIPTION OF THE SYMBOLS Symbols are used in this manual to attract your attention to possible risks .The safety symbols and the explication which accompany them must be perfectly understood. The warning themselves do not prevent the risks and can not be a substitute for proper methods of avoiding accidents. - Page 3 GENERAL SAFETY WARNINGS FOR THE TOOL WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
-
Page 4: Safety Instructions For All Applications
personal injury. e) Do not overreach. Keep a proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. - Page 5 maximum speed specified for the power tool. Accessories that rotate faster than the permissible rate can break and throw pieces into the air. e) The external diameter and thickness of the accessory tool used must comply with the dimensions of your power tool. Incorrectly dimensioned accessory tools cannot be sufficiently shielded or controlled.
-
Page 6: Intended Use
with the appliance. If you do not observe the following instructions, this can lead to electrical shock, fire and/ or serious injuries. b) Do not use any accessories that have not been provided or recommended by the manufacturer for this power tool. Just because you can attach the accessories to your power tool, does not ensure they are safe to use. -
Page 7: Technical Specifiations
LIST OF MAIN PART 1. Chuck 2. Spindle lock 3. Speed regulator 4. Battery indicator 5. Battery (not included) 6. Collect chuck 7.Cutting discs 8.Polishing discs 9.Grinding discs 10.Gringing bits 11.Hss drills 12.Holders 13.Milling bits 14.Engraving bits 15.Spanner 16. Brush 17. -
Page 8: Operation
The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. - Page 9 On/Off Switch Use the On/Off switch to start the machine, to switch the machine off, use the On/Off switch again. Collet nut Press spindle lock button and rotate the spindle by wrench until the lock button engages the spindle preventing further rotation. Keep holding the lock button and loosen the collet nut.
-
Page 10: Maintenance
Inserting cut off wheel 1. Insert the mandrel which has a small screw into the collet like the above mentioned and ensuring that the screw nut is tightened and the collet well established. 2. Loosen the screw on the top of the mandrel and remove it. Attach the accessories on the top of mandrel, then put back the removed screw and tighten it. - Page 11 housing only with a damp cloth-do not uses any solvents! Dry thoroughly afterwards. Caution! If something unusual occurs during use, switch off the tool and remove the battery. Inspect and repair the tool before using it again. Repair of the tool must only be carried out by a qualified repair technician.
