RugDoctor Mighty Pro Quick Start Manual

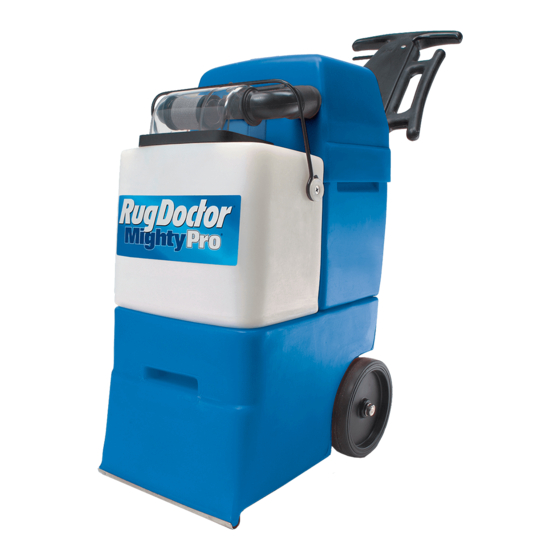

Model: Mighty Pro
Using the Universal Hand Tool
With Your Rug Doctor Mighty Pro
& Wide Track Is Easy!
Set Up
Prepare surfaces for cleaning by thoroughly
vacuuming or brushing. When cleaning
and drying cushions, first spread sheets or
towels on the floor as a drying surface for
the dampened cushions.
Disconnect the machine's large vacuum
hose (ILLUS.1). Reconnect the top portion
to the large vacuum hose of hand tool
(ILLUS.2). Slide down the brass "Quick
coupler" ring and pull out the small solution
hose (ILLUS.3).
Slide down the ring again to insert the metal
end of the hand tool solution hose (ILLUS.4).
Release the brass ring to secure. Tug gently
on the hose to make certain the connection
is secure. Upholstery tool is now connected
to machine (ILLUS.5).
Remove the white upper tank, mix Rug
Doctor Upholstery Cleaner in a clean bucket
according to label directions and pour into
Lower tank.
Slip the tank back in place and seal the tank
and clear dome securely by replacing the
retaining wire. Plug in the power cord and
position the machine.
Turn on the machine by pressing the "ON"
switch for UPHOLSTERY/ HAND TOOL
cleaning on the top of the machine.
WARNING: If the Rug Doctor machine
ingests foam through the dome filter,
damage to the carpet and vacuum motor
could result.
(ILLUS.1)
71244A Universal Hand Tool Instruction Guide.indd 1
& Wide Track
®
(ILLUS.2) (ILLUS.3)
Consumer Support Hotline:
1-800 RUG DOCTOR (1-800-784-3628)
www.rugdoctor.com
®
Start Cleaning
Test upholstery for colorfastness by first
cleaning a small, hidden area, then rubbing
the test area with a white paper towel. If no
color appears, continue cleaning.
Working at a slow, steady pace, begin
cleaning by squeezing the hand tool lever
as you pull the tool backwards over fabric
(ILLUS.6). Overlap strokes slightly.
If foam builds up around the hand tool, pull
slightly faster or vacuum excess solution
by passing over area a second time without
squeezing the lever on the hand tool. When
cleaning is complete, switch the machine to
"OFF" for the off position.
Disconnect both of the hoses from the
machine. Holding the hose ends over a sink,
squeeze the hand tool trigger until all liquid
is drained.
To drain and clean the machine, refer to
the Maintaining Your Rug Doctor Machine
section. Reconnect the machine vacuum
and solution hoses.
NOTE: For velvet upholstery, fluff up damp pile
with a soft brush or towel to keep from matting.
(ILLUS.4) (ILLUS.5) (ILLUS.6)
