Orchid
Instructions for Use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orchid and is the answer not in the manual?

Questions and answers

Summary of Contents for ADMETEC Orchid

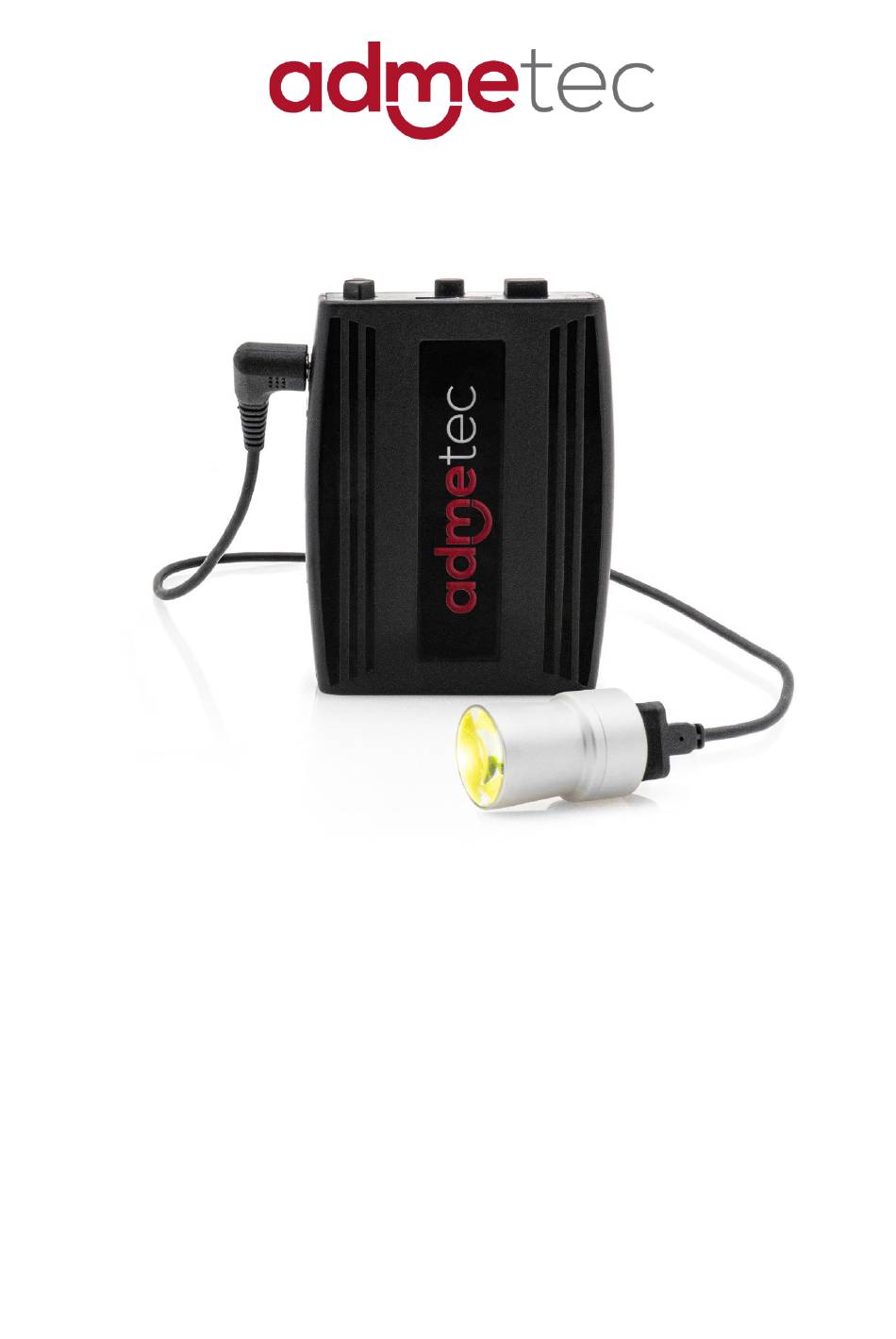

  • Page 1 Orchid Instructions for Use...

  • Page 2: Table Of Contents

    Table of Contents Introduction Safety precautions & troubleshooting Legend for accompanying labels Product overview Battery charger PowerPack – Orchid battery Light source Technical specifications Orchid-S Warranty Exclusions and limitations...

  • Page 3: Introduction

    • smooth digital adjustment of light intensity For dentists: Yellow filter to prevent composite curing. In the standard Orchid model, the filter is external. In Orchid F/E the filter is built into the light source, remotely controlled via the PowerPack...

  • Page 4: Safety Precautions & Troubleshooting

    Safety Precautions Do not use any third-party chargers with Orchid PowerPacks, even if they look identical. Third-party chargers may not be compatible with the PowerPack and could damage it . Prevent PowerPack from overheating. Avoid direct sunlight or heated surfaces .

  • Page 5: Legend For Accompanying Labels

    Legend to accompanying labels Label Explanation Manufacturer Authorized representative in EU Caution! Consult accompanying documents Batch number Catalog number CE Mark indicating that the device complies with Regulation (EU) 2017/745 of the European Parliament and of the Council of 5 April 2017 on medical devices This device cannot be disposed of as unsorted municipal waste.

  • Page 6: Product Overview

    Product overview Fig. 01 - Orchid Case Please note that the image is for illustration. There are some differences in the button placement and shape of the light source between Orchid models Your Orchid comes with: 1. Battery charger 2. 2x PowerPack battery units (amounts may differ in various countries) 3.

  • Page 7: Battery Charger

    Fig. 02 - Power Light Set Battery charger To charge the battery, 1. Insert the charger jack into the charger connection port on the PowerPack (see Figure 3). 2. Plug the charger into a wall outlet. The indicator light will be red until charged. When the light becomes green, the battery is fully charged.

  • Page 8: Powerpack - Orchid Battery

    A blue light will indicate battery status. Every light segment symbolizes approximately 20% of full battery capacity. PowerPack – Orchid battery Each Orchid kit includes two PowerPack battery units which serve as a power source and control panel for the headlight.
  • Page 9 Press and release to check the battery Yellow Filter control level. - To turn ON the Yellow Filter, press button (Only for and hold the button for 1.5 sec’ To turn it Orchid F/E) OFF, simply press the button again. Battery level indicator Intensity controls Increase of decrease the light intensity.

  • Page 10: Light Source

    Fig. 06 - PowerPack connection ports Light source Plug the light source cable directly into the light source connection port on the right side of PowerPack, as shown in Figure 09. Orchid Orchid-F Orchid-E / Orchid-S Fig. 07 – Light sources...
  • Page 11 Getting started: 1. To mount the external yellow filter only for Orchid model - loosen the screw shown in Figure 08, place the composite filter ring on the light source, and secure the screw again. Fig. 08 - Mounting External Yellow Filter Fig.

  • Page 12: Technical Specifications

    Length 44 mm 54 mm Width 19 mm 29 mm Weight 9 gr 14 gr LED operating resource 50,000 hrs 50,000 hrs Spot size diameter at 350mm 80mm 60mm External Filter weight 2 gr (for Orchid) 3 gr (for Orchid-S)

  • Page 13: Warranty

    If a defect arises and a valid claim is received by Admetec after the first ninety (90) days of the Warranty Period, a shipping and handling charge will apply to any repair or exchange of the product undertaken by Admetec.
  • Page 14 EU and are intending to discard these products at the end of their useful life, please do not dispose of them with your other household or municipal waste. Admetec has labeled its branded electronic products with the WEEE Symbol to alert our customers those products bearing this label should not be disposed of in a landfill or with municipal or household waste in the EU.
  • Page 16 Do you need customer service? Please contact your local distributor.
