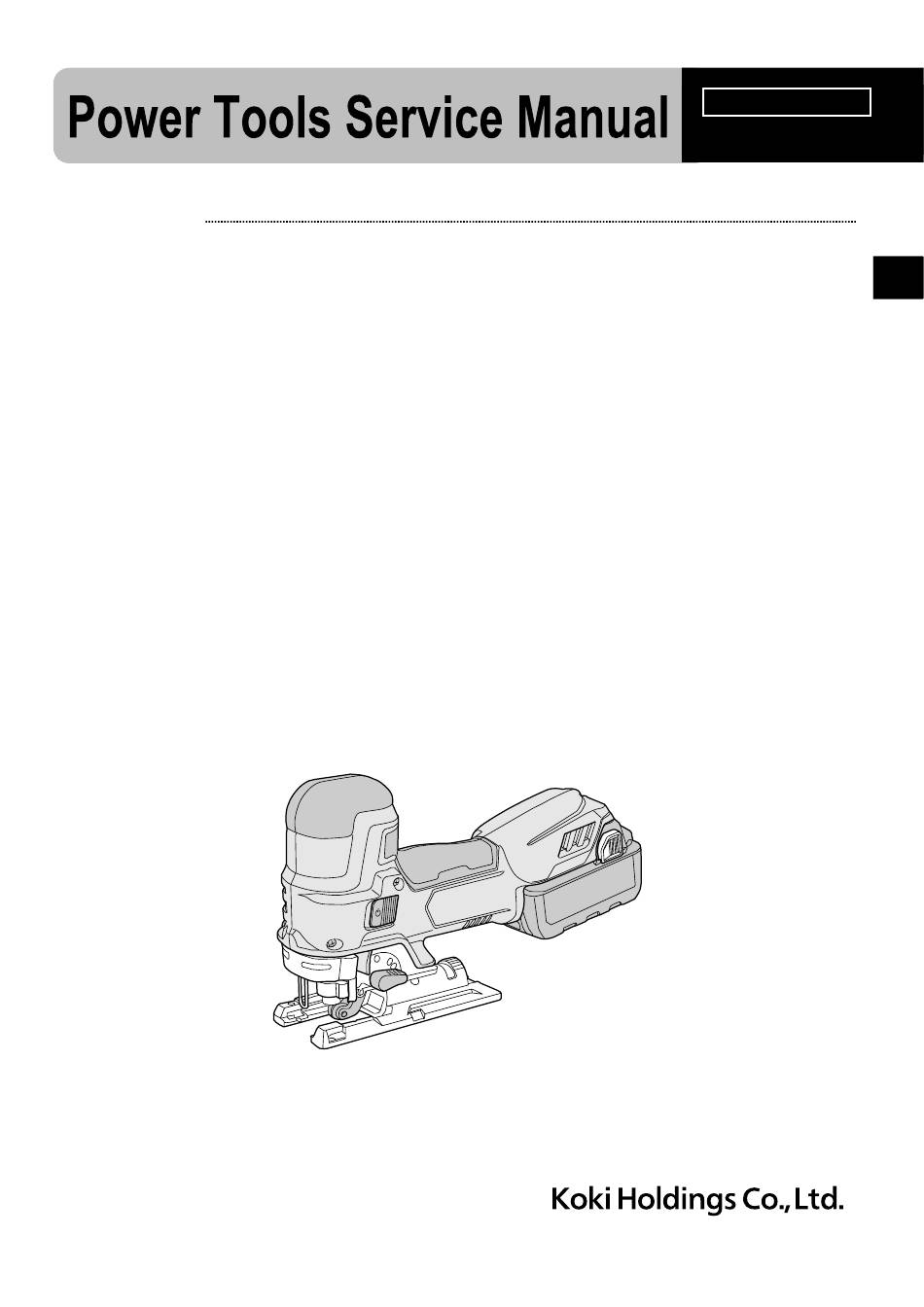

CONFIDENTIAL Feb. 2023 PRODUCT NAME 18 V Cordless Jig Saw CJ 18DB Model 135 mm (5-5/16”) Page CONTENTS REPAIR GUIDE ---------------------------------------------------------------------------------------------------------------- 1 1. Precautions on disassembly and reassembly ----------------------------------------------------------- 1 • Disassembly ---------------------------------------------------------------------------------------------------- 1 • Reassembly ---------------------------------------------------------------------------------------------------- 6 • Lubrication points and type of lubricant ------------------------------------------------------------------ 8 •...
1. Precautions on disassembly and reassembly [Bold] numbers in the description below correspond to the item numbers in the parts list and exploded assembly diagram for the Model CJ 18DB. Disassembly 1. Removal of the base Loosen the Hex.
Page 3
3. Removal of the housing ass’y and switch cover ass’y (1) Loosen the two Tapping Screws (W/Flange) D3 x 12 [3] and remove the Switch Cover Ass’y [9] from Housing Ass’y [10]. (2) Loosen the Tapping Screw (W/Flange) D3 x 6 [8] and remove Slide Knob (A) [5], Washer [7], and Spring [4].
Page 4
4. Disassembly of the plunger ass’y (1) Remove the Pin D6 [46] from the Gear Holder Ass’y [49]. Remove Plunger Holder (A) [39] from the plunger ass’y. (2) Loosen the two Seal Lock Hex. Socket Hd. Bolts M3 x 6 [26] and remove the Plunger Cover [25] and Plunger (A) [40].
Page 5
5. Disassembly of the gear holder ass’y (1) Pull out Connecting Piece (A) [41] and Needle Bearing [42] from the Gear [43]. (2) Remove the Retaining Ring D7 [47] and Washer (A) [48] from the tip of the spindle. (3) Remove the Gear [43], Balance Weight [44], Orbital Cam [45], and Washer (A) [31] in this order. (4) Remove the Motor [12] press-fitted in the Gear Holder Ass’y [49].
Page 6
6. Removal of the switch controller ass’y Remove the Switch Controller Ass’y [15] from the Motor [12] using a soldering iron. Fig. 6 [12] [15]...
Reassembly Perform reassembly by reversing the disassembly procedure. However, special attention should be given to the following items. 1. Mounting the change knob Mount Spring (C) [35] and Steel Ball 5/32 [52] to the inside of the Change Knob [53] as described below. (1) Apply grease (Nippeco SEP-3A) to the Steel Ball 5/32 [52], and then put the Steel Ball 5/32 [52] in the concave portion as shown in the figure below.
Page 8
Fig. 8 [39] [25] [26] [27] [40] [28] [29] [33] [30] [31] [32] [34] [35] [36] [37] [38] 3. Mounting the switch controller ass’y (1) Put the Switch Controller Ass’y [15] in close contact with the Motor [12] without any gap. Align the centers of the Switch Controller Ass’y [15] and the Motor [12].
Lubrication points and type of lubricant Apply specified amount of grease to the following portions. Nippeco SEP-3A grease • Entire circumference of the Gear [43], particularly its teeth • Both sides of Washer (A) [48] (under the Orbital Cam [45]) •...
Wiring diagram Perform soldering correctly as illustrated in the wiring diagram below. If the internal wires are incorrectly connected, the motor may not turn or other problems could occur. Fig. 11 • Wiring diagram Pass the internal wire through the hole. Solder the internal wire and ground terminal.
Page 12
Fig. 12 • Connecting diagram Micro switch (B) Gray Gray Black Gray Gray Ferrite core Ferrite core Main PCB Motor White Black Black Ferrite core Black Motor case VR ass’y -11-...
