Summary of Contents for Mecer ME-6000-WPTV

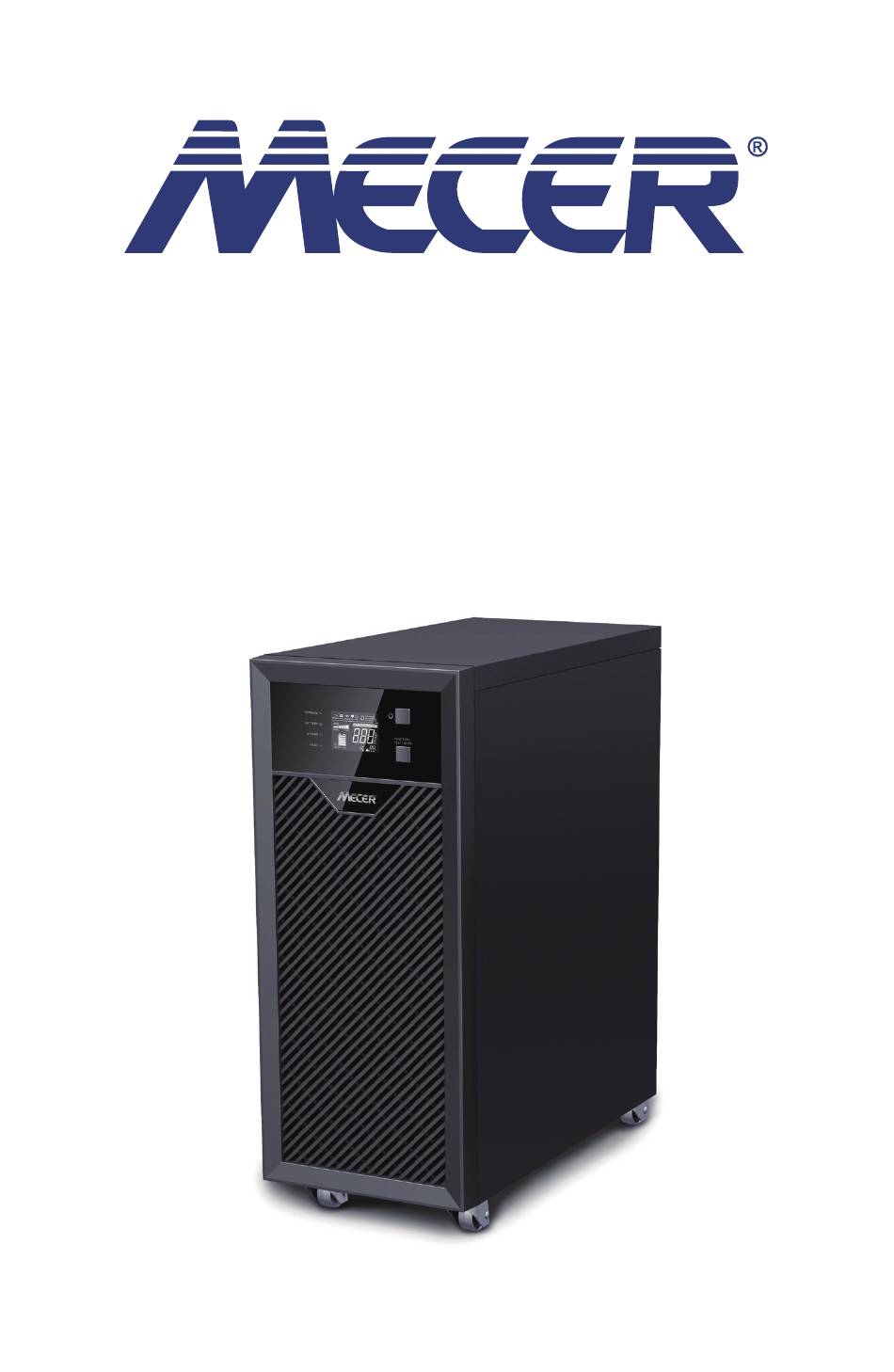

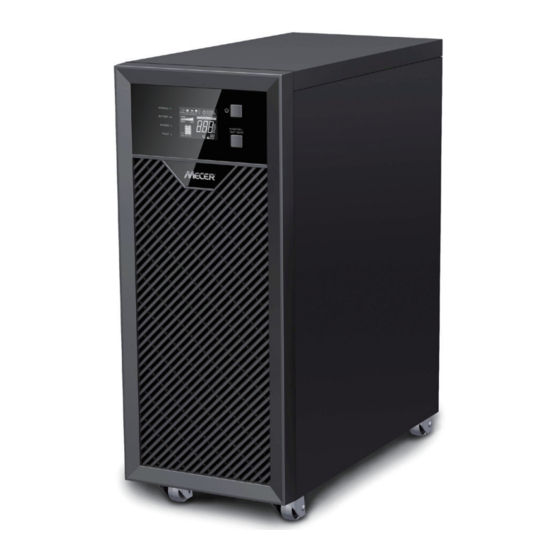

- Page 1 User Manual ME-6000-WPTV ME-10000-WPTV Service and support: Call your local Service representative...
- Page 2 This manual contains important instructions that you should follow during installa- tion and maintenance of the UPS and batteries. Please read all instructions before operating the equipment and save this manual for future reference.
- Page 3 Safety Instructions Please read carefully the following user manual and the safety instructions before installing or operating the unit! Operation Safety Please read all instructions before operating the equipment and connecting to mains power, save this manual for future reference. Please pay attention to all the warning indication, understand and follow all the instruction.
- Page 4 If input or output terminal need any maintenance or installation, it is imperative to disconnect all the power connections of UPS and turn UPS off. Battery Safety • The service lifetime of UPS battery depends on ambient temperature, high ambient temperature will impact the service lifetime of UPS battery. Replace battery on regularly can help to keep UPS running efficiently and provide backup time as expected.
- Page 5 c. Do not install/store UPS in place where there is flammable or corrosive gas, place with large amounts of conductive dust, place exposed to shock or vi- bration, or outdoor. • If you would store the UPS for a long period, the storing area temperature should be the range of -25°C to 55°C, and before turning on UPS, it is highly suggested to put UPS in the ambient temperature above 0°C and last at least 2 hours.
-
Page 6: Table Of Contents
CONTENT 1.Introduction ......................1 1.1 Symbol and Explanation..................2 1.2 Front view ......................2 1.3 Rear View ......................3 1.4 product specification ..................4 2.Installation ......................... 6 2.1 Inspection the pack and equipment..............6 2.2 Power cable ......................6 2.3 UPS Power Connection ..................7 2.4 UPS Connect To Computer Port ................ -
Page 7: Introduction
Model No. on the rear panel of the UPS. ME-6000-WPTV: Single phase input single phase output, Standard with battery. ME-10000-WPTV: Single phase input single phase output, Standard with... -
Page 8: Symbol And Explanation
1.1 Symbol and Explanation Some or all of the following symbols may be used in this manual. It is advisable to familiarize yourself with them and understand their meaning: 1.2 Front view... -
Page 9: Rear View
1.3 Rear View 1. RS232 6. Maintenance Bypass Switch (Optional) 2. Fan 7. Intelligent Slot(SNMP card included) 3. AC Input Breaker 8. EPO 4. Terminal Cover 9. Parallel Card(Optional) 5. Beam Frame... -
Page 10: Product Specification
1.4 product specification Model ME-6000-WPTV ME-10000-WPTV Dimensions 248 x 500 x616 248 x500 x616 W*D*H(mm) Weight(kg) 58.9 62.1 Power Apparent Power 6KVA/ 10KVA/ (KVA) / Active power 5.4KW (KW) Mains Voltage range 120Vac-275Vac(phase to phase) Current* 32.1A max 52.6 A max... - Page 11 Waring: this is a product for commercial and industrial application in the second environment installation restrictions or additional measures may be needed to prevent disturbances. NOTE: It is recommended that the UPS output line is not more than 10m, the external communication line, and the machine line and the temperature detection line is not more than 3m, otherwise it may need to take installation restrictions or additional measures to suppress interference.
-
Page 12: Installation
2. Installation Danger: For safety consideration, please make sure cut off all the mains power. Note: 1. Installation and power cable connection must be conducted by qualified person according to local regulations. 2. We recommend UPSs installed as floor standing equipment. 3. -
Page 13: Ups Power Connection
Model ME-6000-WPTV ME-10000-WPTV 6mm2 10mm2 6mm2 10mm2 Input 6mm2 10mm2 6mm2 10mm2 6mm2 10mm2 Battery 6mm2 10mm2 6mm2 10mm2 Output 6mm2 10mm2 6mm2 10mm2 2.3 UPS Power Connection DANGER: Inorder to avoid the Mains power switch current overload when UPS carries with rating load, the Mains power switch rating current must be more than the bypass switch rating current.(bypass mode max current refer to... - Page 14 1. Select power cable referring to power cable table. 2. Open UPS terminal cover. Terminal Cover 3. Connect the protective earthing conductors to the rear panel left earthing terminal. 4. Connect the protective bonding conductors to the rear panel right earthing terminal.
- Page 15 7. Make the straps through across the Beam frame. 8. Adjust the straps to proper position; Fix the input cable, output cable tightly. 9. Re-screw the terminal cover.
- Page 16 Terminal Cover Beam Frame 10. Connect the main power, set input protect breaker to “ON” to power UPS. 2.4 UPS Connect To Computer Port...
-
Page 17: Ups Connect To Computer Port
RS232 interface is for the monitoring software and firmware update. UPS connect to monitor device with RS232 cable. 1. One end of RS232 cable connects to computer RS232 port. 2. One end of RS232 cable connects to UPS RS232 port. 2.5 UPS Parallel Card (Optional) •... - Page 18 need an independent battery pack . 1. Connect each UPS one by one with the parallel cable, the parallel card is the communication port between UPSs. 2. Connect the output wire of the parallel UPSs to an output terminal block, load connect to the output terminal block via load wire.
- Page 19 Output wire requirement: The distance between the UPSs in parallel is less than 20 meters. The differ- ence between the wires of input and output of the UPSs is required to be less The distance between the UPSs in parallel is more than 20 meters. than 20%.
-
Page 20: Epo
Turn on UPS with power normal: After main power connection done, long press button for one UPS and all the paralleled UPS will go to Online mode. Turn on UPS without main power: Short press each UPS button to make each UPS power on, then long press one UPS button and all the paralleled UPS will go to Battery mode. - Page 21 2) Transfer UPS in to bypass mode. 3) Switch maintenance switch to maintenance position. 4) Switch off UPS bypass mode switch, line mode input switch and battery in- put switch. After verify no hazards, service person can begin to maintain UPS without interrupting power supply to your equipment.
-
Page 22: Connectivity Cards
2.8 Connectivity Cards Connectivity cards is an optional accessory for UPS, Connectivity cards allow the UPS communicate in a variety networking environment and with different types of devices. User can select AS400 card, NMC card, CMC card, USB port +RS232, the service person will provide installation. Before installation, UPS must be turned off. -
Page 23: Software
Note: Further information please refer the card user manual.If require WinPower sofare and AS400, NMC, CMC, USB+RS232.Any detail and further information, please contact your representative. 2.9 Software Free Software Download – WinPower WinPower is brand new UPS monitoring software, which provides user-friendly interface to monitor and control your UPS. -
Page 24: Control & Display Panel
3. Control & Display Panel 3.1 LCD panel Control & Display panel is in the front of UPS, the panel includes 2 buttons, 4 LED indicators and 1 LCD screen. The fllowing table shows the buttons and description: The button Function Illustration On/Off button Turn on/off UPS... -
Page 25: Lcd Description
3.2 LCD description • Load information. 1. Load display as percentages. Following table shows the load display specification. Grid Quantity Actual Load (from left to right) Level 1 0% - 15% Level 2 16% - 35% Level 3 36% - 55% Level 4 56% - 75% Level 5... - Page 26 • UPS meters The following information will be display in LCD panel: Input voltage, input frequency, output voltage, output frequency, battery voltage, and load meters. Quick press the button to switch display categories, items within the same category will be switched automatically. Type Items Output...
- Page 27 • Buzzer: when buzzer beeps and icon display, it indicates UPS abnormal or fault alarm. Press can end buzzer beeping(silence mode). • Fault/Alarm display: UPS abnormal, fault or alarm indication information need to deal with, below icon light up. Lightened circularly: alarm information. Lightened constantly: critical fault.
-
Page 28: Operation
4. Operation 4.1 Turn on UPS Note: Battery is fully charged after manufacture, but energy may be loss after transportation and storage. Suggest charge the battery for 12 hours or more before using, to ensure enough backup time. • Prepare to turn on 1. - Page 29 • Turning On UPS With Mains 1. Press On/Off button continuously longer than 1 second, UPS will turn on. System self-test will be carried out when UPS turn on. 2. UPS turn to Online mode after self-test. Indicator and LCD display as following: LED lighted, no fault displayed.
- Page 30 • Turning On Without Mains (cold start) 1. Press On/Off button continuously longer than 1 second, UPS will turn on. System self-test will be carried out when UPS turn on. 2. UPS turn to battery-mode after self-test. Both LED and battery LED Normal lighted.
-
Page 31: Turn Off Ups
4.2 Turn off UPS 1. Press On/Off button continuously longer than 1 second, UPS will be turned off. 2. UPS supply power by bypass after turn off. Indicator and LCD display as following: LED lighted, no fault displayed: Normal 3. Bypass LED light and buzzer beep once every 2 seconds to indicate that UPS work on bypass-mode. -
Page 32: Maintenance
5. Maintenance This series UPS only requires minimal maintenance. The battery used for standard models are value regulated sealed lead-acid maintenance free battery. These models require minimal repairs. The only requirement is to charge the UPS regularly in order to maximize the expected life of the battery. When being connected to the mains power, whether the UPS is turned on or not, the UPS keeps charging the batteries and also offers the protective function of overcharging and over-discharging. -
Page 33: Trouble Shooting
6. Trouble shooting If the UPS system does not operate correctly, check the operating status on the LCD display. And please attempt to solve the problem using the table below. Warning Fault Icon Code Event Name Possible cause Remedy Press ON/OFF button Press ON/OFF button Less 0.5s. - Page 34 Warning Fault Icon Code Event Name Possible cause Remedy Battery LED When audible alarm indictor light Battery voltage is low sounding every second, circularly battery is almost empty. Charge the batteries Batteries not fully charged until the Batteries are fully charged Check the loads and Emergency remove some non-...
