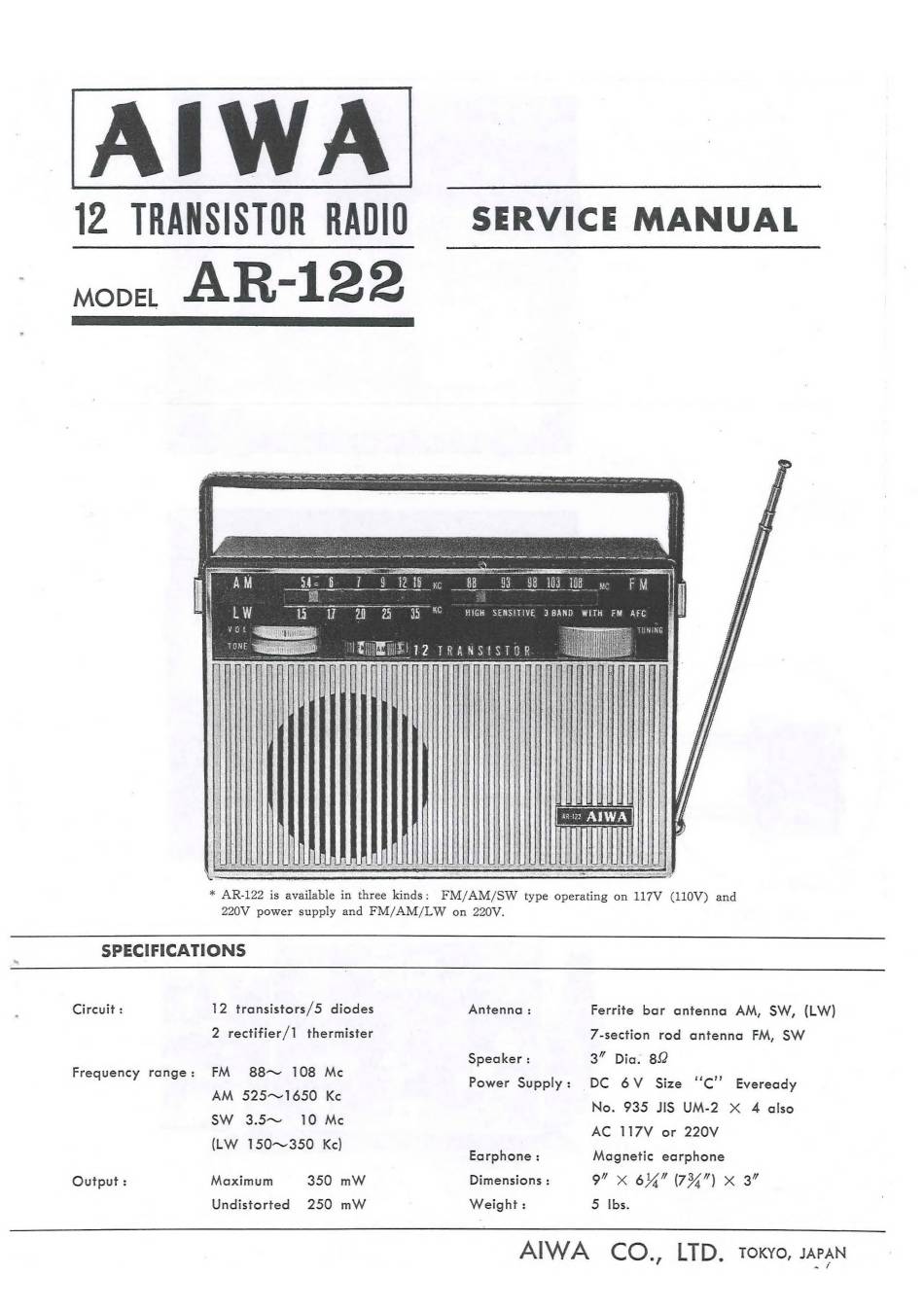

Aiwa AR-122 Service Manual

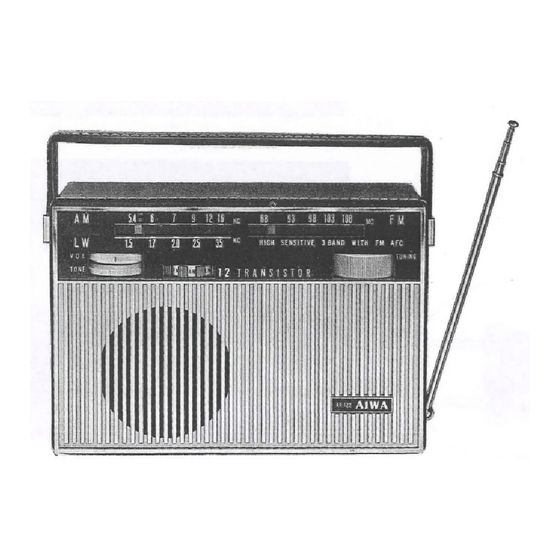

12 TRANSISTOR RADIO SERVICE MANUAL
MODEL AR-122
oh ns be rota ae enn Saas
ae eo Tae OS en Ca i gg .
Se a a nD OR a etn S i e oon ae ae Go
| V ghia Seger xeon Li 3.5 204 Bo ot PLEA t o n e ance Mae Von he at Sete ah iets SRS Sah oth ite e e let iopg Ls N e t wy 3 tye ' ?
' Boeren Sv Gane RS Wien SN Wie Doar etw a0 = NA LEN WOR eae MOE DAVY L Vuln EDs EVEL etme Aroma ' peat "NAaboutins joteneat - renee geetinhinn IeniAe ind sapiens aaatienieduseeoate nemcetial Dr aellne!" renee! nreeuie: GAME Ferman, ninmnee Syeerte | bedinde Suelaann Sanne,
Be ft as
gh KE WIGH «SENSITIVE 3BAND WITH FM AFC
aezt AIWA, 122 [i AWA
* AR-122 is available in three kinds: FM/AM/SW type operating on 117V (110V) and
220V power supply and FM/AM/LW on 220V.
SPECIFICATIONS
Circuit : 12 transistors/5 diodes Antenna : Ferrite bar antenna AM, SW, (LW)
2 rectifier/1 thermister 7-section rod antenna FM, SW
Speaker : 3" Dia. 82
Power Supply: DC 6V Size "'C'' Eveready
No. 935 JIS UM-2 X 4 also
AC 117V or 220V
Frequency range: FM 88~ 108 Mc
AM 525~1650 Ke
SW 3.5~ 10 Mc
(LW 150~350 Kc)
Earphone : Magnetic earphone
Output : Maximum 350 mW Dimensions : 9" « 6A" 1734") * 3"
Undistorted 250 mW Weight : 5 Ibs.
