Summary of Contents for Ronix 5810

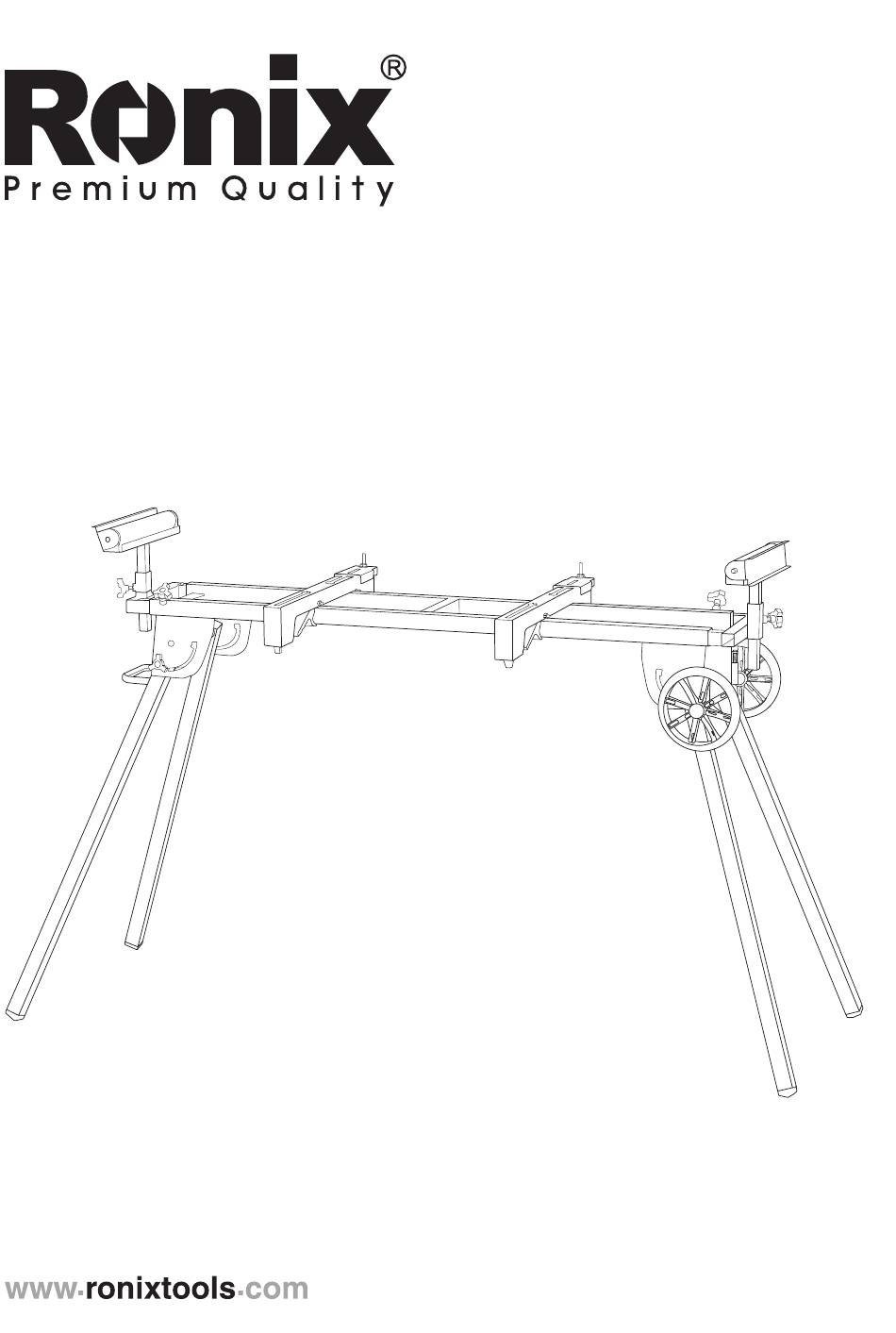

- Page 1 MITER SAW STAND 1110mm 5810...
-
Page 3: Technical Specification
TECHNICAL SPECIFICATION Model 5810 Body Material STEEL Tube Extension Size :207×61×100cm Size Fold Size:110×26×25cm Thickness Body and Leg: 1.0mm Shape Square Tube Maximum Weight Capacity 150Kg Extension Length (Sigle) 470mm Full Length 2070mm Fold Length 1110mm Wheel Material PU+PP Weight 14.85Kg... -
Page 4: Assembling The Stand
ASSEMBLY INSTRUCTIONS Read all assembly instructions completely before attempting assembly. See parts list for names and pictures of parts to identify all components. Do not discard box until after you have found all the components and completed assembly. ASSEMBLING THE STAND 1- Place top stand frame upside down on your workbench or surface, ensuring the surface is even and flat. - Page 5 at the corner of the tube frame and turn clockwise to secure the outrigger support in place Repeat on the opposite end. INSTALLING THE WORK SUPPORTS 1- Insert the work support into the top of the Outrigger support. 2- Position to the height according to your requirements and while holding in place, use your other hand to screw one of the M8 locking knobs supplied into the threaded hole on the outrigger support by turning it clockwise to secure into position.
- Page 6 mount downwards to towards the top frame stand. As the spring loaded lever passes the top of the stand, release the lever. Continue to push downward until the spring loaded lever “CLICKS” into place. (Fig B) 3- The quick machine mount should now be locked in place. (Fig C) 4- Always check the quick machine mount is locked by applying a force upward at the front of the quick attach machine mount.
- Page 7 directly from the stand. The assembly is designed to mount the saw on the quick attach machine mounts and the saw and mounts can come off together, and the mounts can remain on the stand for storage etc. SETTING UP TO MOUNT THE SAW The attachments supplied with the stand should allow for various different footprints to be mounted.
- Page 8 To Fit the Off set brackets, place the 20mm Coach bolt through the off set bracket from the BOTTOM and fit the washers and nut on the TOP of the bracket. Secure the nut with 3 turns. (Fig D) Align the head of the coach screw with the round hole in the quick attach machine mounts (Fig E), place the head through the hole and then slide the off set bracket assembly along the slot in the quick attach machine mount.
- Page 9 MOUNTING THE SAW 1- Measure the distance between the front mounting holes of the saw and compare with the distance between the rear mounting holes. Using the above guide to determine if the quick attach mounts will be set up with A, B, or C.
- Page 10 MITER SAW STAND 1110mm...
