AVG-SG1
The AVG-SG1 is a portable mini-HDMI signal
generator and display emulator (signal analyzer),
two functions combined into a compact size
chassis. This is very useful tool for AV installers for
testing installations. As a signal generator, it can
generate 4 signals, with maximum resolution up to
4K@60Hz, 4:4:4, as well as analyzing the HDCP
content of a HDMI signal.
•
Used as HDMI signal generator
or display emulator (signal
analyzer).
•
Provides 4-pin DIP switch for
setting video resolution and
HDCP content.
•
Supports 4K@60Hz 4:4:4,
4K@60Hz 4:2:0, 4K@30Hz
4:4:4, or 1080p@60Hz video
signal output.
•
Supports HDCP OFF, HDCP 1.4
or HDCP 2.2 output.
•
Supports four different test
patterns for HDCP version.
•
LEDs show signal and HDCP
status.
Advertisement
Table of Contents
Summary of Contents for AVGear AVG-SG1

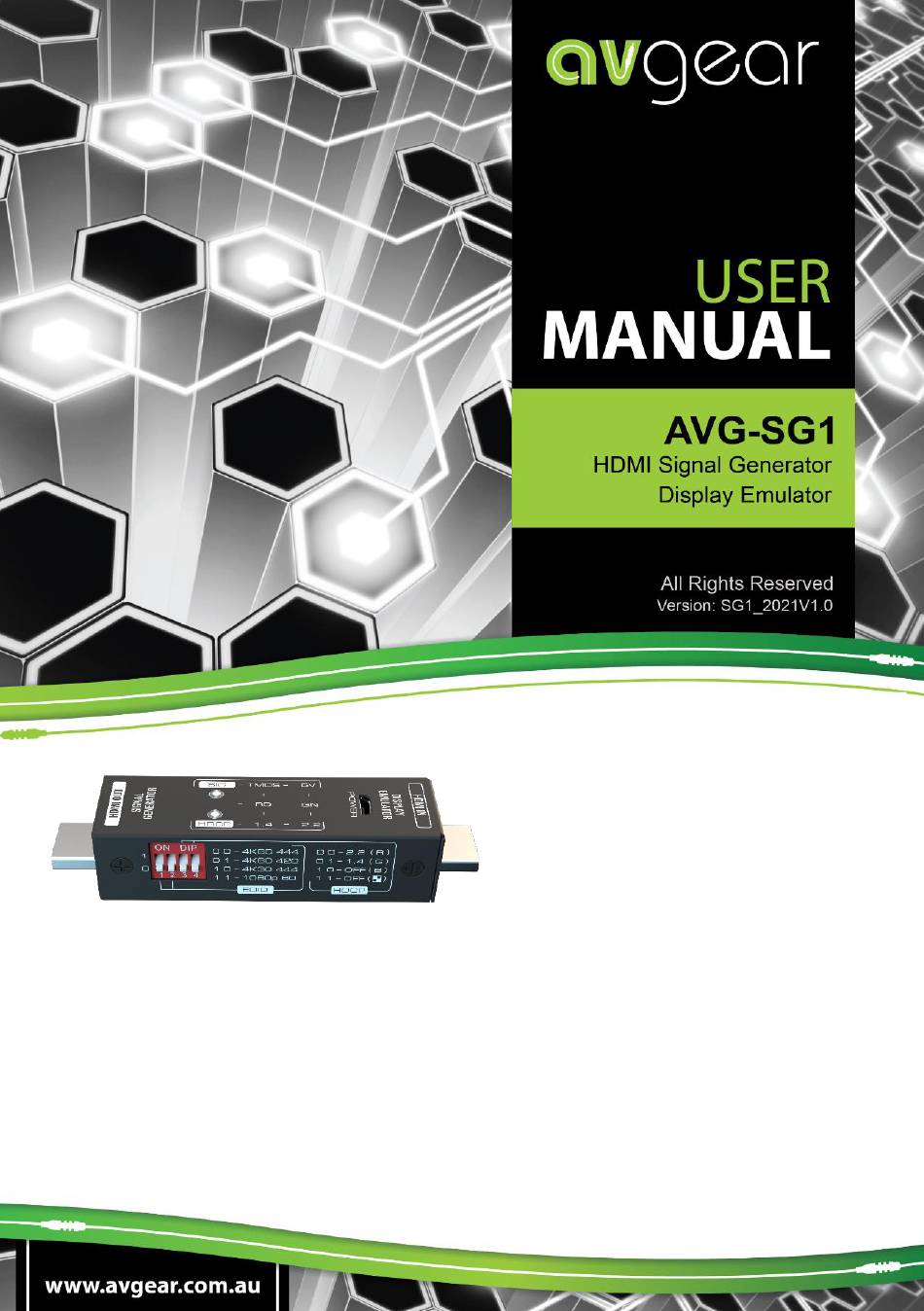

- Page 1 HDCP content. • Supports 4K@60Hz 4:4:4, 4K@60Hz 4:2:0, 4K@30Hz The AVG-SG1 is a portable mini-HDMI signal 4:4:4, or 1080p@60Hz video generator and display emulator (signal analyzer), signal output. two functions combined into a compact size •...
- Page 2 AVG-SG1 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operational instruction only, and not to be used for maintenance. The functions described in this version are current as at June 10th. Any changes of functions and operational parameters will be updated in future manual versions.
- Page 3 AVG-SG1 SAFETY OPERATION GUIDE To guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: The system must be earthed properly. Please do not use two blade plugs and ensure the alternating power supply ranges from 100v to 240v and from 50Hz to 60Hz.
-
Page 4: Table Of Contents
AVG-SG1 TABLE OF CONTENTS Introduction ........................1 Product Introduction....................1.1 Features ....................... 1.2 What’s in the box ....................1.3 Specifications ....……………………………………………………………………2 Product Appearance and Operation ................3 System Connection ...................... 4 System Diagram ....................4.1... -
Page 5: Introduction
1. Introduction 1.1 Product Introduction The AVG-SG1 is a portable mini-HDMI signal generator and display emulator (signal analyzer), two functions combined into a compact size chassis. This is very useful tool for AV installers for testing installations. As a signal generator, it can generate 4 signals, with maximum resolution up to 4K@60Hz, 4:4:4, as well as analyzing the HDCP content of a HDMI signal. -
Page 6: Specifications
AVG-SG1 2. Specifications Connectors Input (1) HDMI IN Input Connector (1) 19-pin type-A male HDMI Output (1) HDMI OUT Output Connector (1) 19-pin type-A male HDMI Power Connector (1) Micro-USB Control (1) 4-pin DIP switch General Input Video Resolution Up to 4K@60Hz 4:4:4 8bit... - Page 7 HDCP content and signal status (5V, TMDS) of HDMI source. 3. SIG LED: ▪ When the AVG-SG1 is used as a HDMI signal generator, the LED turns red when there is HDMI signal output. ▪ When the AVG-SG1 is used as a display emulator, the LED turns green when only 5V signal is detected and turns red when 5V and TMDS signals are detected simultaneously or turns off when there is no HDMI signal input.
- Page 8 SIG LED and HDCP LED’s will blink. 6. DIP SWITCH: When the AVG-SG1 is used as a HDMI signal generator, switch 1 & 2 are used for built-in EDID (video) selection, and switches 3 & 4 are used for HDCP content selection.
-
Page 9: System Connection
AVG-SG1 4. System Connections 4.1 System Diagram...
