Online LED Store LAMPHUS AURA Series Manual

www.online-led-store.com
Phone: 1-855-LED-ONLINE (1-855-533-6654)
Fax: (909) 575-6722
E-mail: support@online-led-store.com
IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE.
• Installer of this product must have a good understanding of automotive electronics, systems,
and procedures.
In the case that holes must be drilled in order to properly mount the product, the installer must
•
examine both sides of the mounting surface before drilling begins. It is the installer's
responsibility to be sure that no vehicle components or vital parts could be damaged by the
drilling process. De-burr any holes in order to remove metal shards and remnants. Use
grommets in all wire passage holes.
If this manual states that this product may be mounted with suction cups, magnets, tape, or
•
Velcro®, clean the mounting surface and dry thoroughly prior to applying any adhesives for
maximum adhesion.
• Do not attempt to activate or operate this product under hazardous driving situations.
Flash Patterns:
Sim. = Simultaneous – all LEDs flash at the same time.
A = Type A – Type A flashes simultaneously with Type A, alternates with Type B
B = Type B – Type B flashes simultaneously with Type B, alternates with Type A
Single Burst 75 Sim. A
1.
Single Burst 75 Sim. B
2.
Single Burst 150 Sim. A
3.
Single Burst 150 Sim. B
4.
Double Burst 75 Sim. A
5.
Double Burst 75 Sim. B
6.
Double Burst 150 Sim. A
7.
Double Burst 150 Sim. B
8.
Quad Burst 75 Sim. A
9.
Quad Burst 75 Sim. B
10.
Quad Burst 150 Sim. A
11.
Quad Burst 150 Sim. B
12.
Steady Mode
13.
Specifications:

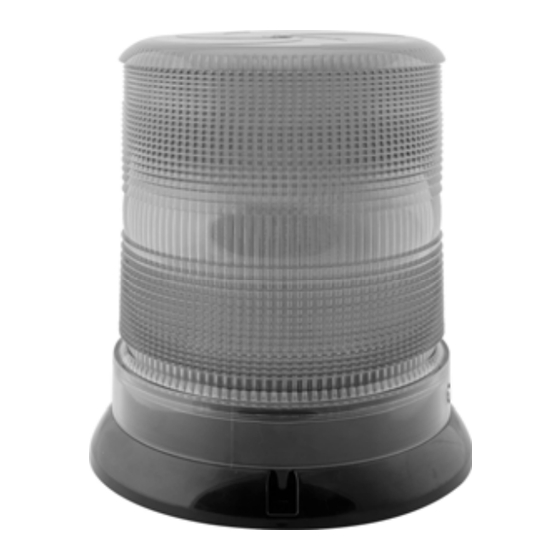

AUBL01 High Dome/PSZLEDSTB2021
Input Voltage: 10 – 30 V DC
Input Current: 100 – 1500 mAMPS @ 12 V DC
Output Power: 1 – 12 WATTS
Functions with Cigarette Lighter Plug:
1. Power unit on/off via rocker switch with LED indicator light.
2. Select flash patterns via momentary rocker switch.
3. Refer to the function of the BLUE wire in the following section for more functions that can be achieved utilizing the momentary rocker switch.
LAMPHUS
AUBL01, AUBL02, and AUBL03
SKU: PSZLEDSTB2021 Rev.1, PSZLEDSTB2031, PSZLEDSTB2041 Rev.1
• Deployment area of the vehicle air bags must be cleared. Do not install this product or route
any electrical wires near the air bags deployment areas. Refer to your vehicle owner's manual
for the air bag deployment area. Products or wires mounted in the air bag deployment area
will damage, reduce the effectiveness of the air bag, or even act as a projectile which may
cause serious injury or death. The user/installer of this product assumes full responsibility in
determining the proper mounting location while prioritizing the safety of all passengers in the
vehicle.
This product contains strobe light(s), halogen light(s), high-intensity LEDs, or a combination of
•
these components. Do not look directly into the lights. Momentary blindness and/or injury to
the eyes could result.
Rotator – LEDs flashes sequentially in a rotating fashion.
Single Flash 75 Sim. A
14.
Single Flash 75 Sim. B
15.
Single Flash 120 Sim. A
16.
Single Flash 120 Sim. B
17.
Single Flash 150 Sim. A
18.
Single Flash 150 Sim. B
19.
Single Flash 300 Sim. A
20.
Single Flash 300 Sim. B
21.
Double Flash 75 Sim. A
22.
Double Flash 75 Sim. B
23.
Double Flash 120 Sim. A
24.
Double Flash 120 Sim. B
25.
Quad Flash 75 Sim. A
26.
AUBL02 Low Dome/PSZLEDSTB2031
Input Voltage: 10 – 30 V DC
Input Current: 100 – 1500 mAMPS @ 12 V DC
Output Power: 1 – 12 WATTS
Online LED Store S2B Inc. ©2016 All Rights Reserved
® AURA TM Series LED Beacon
Quad Flash 75 Sim. B
27.
Quad Flash 150 Sim. A
28.
Quad Flash 150 Sim. B
29.
2 Double 75 Sim. / 4 Quad 120 Sim.
30.
4 single 75 Sim. / 4 Quint 120 sim.
31.
Cycle Mode.
32.
Accelerator Sim.
33.
Single Flash 90 Rotator
34.
Single Flash 120 Rotator
35.
Single Flash 150 Rotator
36.
Single Flash 300 Rotator
37.
Off
38.
AUBL03 mini-AURA/PSZLEDSTB2041
Input Voltage: 10 - 30 V DC
Input Current: 50 – 500 mAMPS @ 12 VDC
Output Power: 1 – 4 WATTS
