Summary of Contents for Ronix RH-4307

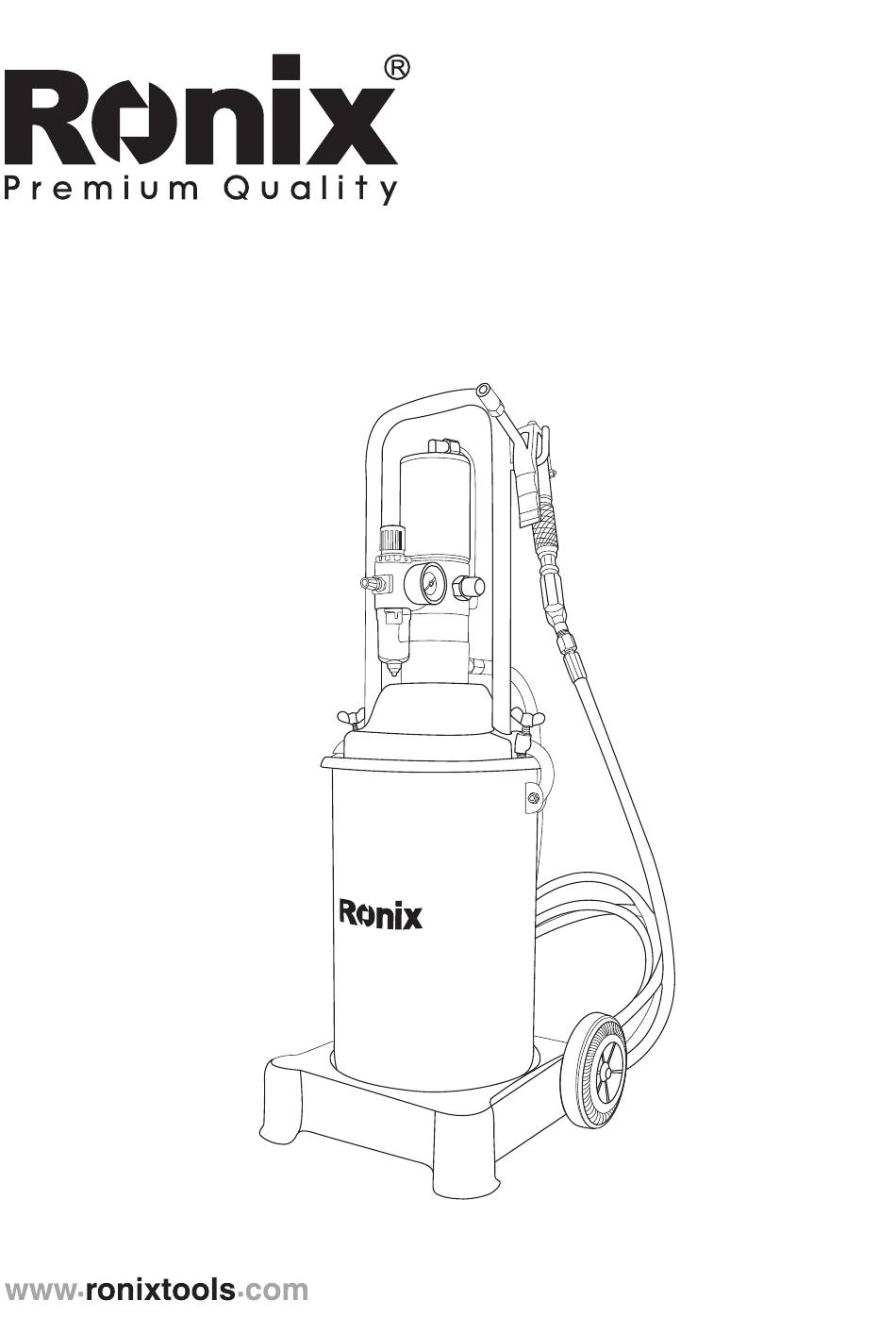

- Page 1 12L HIGH PRESSURE AIR GREASE INJECTOR RH-4307...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS RH-4307 Model Total Height 805mm Stand Dimension 330×φ220 Body Diameter 220mm Capacity 12Lit 400 Bar Max Pressure 5700 PSI 6-8Bar Working Pressure 87-116PSI 0-1MPA Pressure Gauge Graduation Unit 0-150PSI High Pressure Rubber Hose Length Body Material Steel Weight 11.25Kg / 9.25Kg... -
Page 3: Part List
PART LIST Pulling Handle Pump Pressure gauge Top cap Metal Clasp Grease Tank Adjusting screw nut Main Fixed Tube Body Handle/Lever grease Adapters 12L HIGH PRESSURE AIR GREASE INJECTOR... -
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and or serious injury. - Save all warnings and instructions for future reference. WORK AREA SAFETY - Keep work area clean and well lit. -
Page 5: Personal Safety
PERSONAL SAFETY - Stay alert, watch what you are doing and use common sense when operating a power tool. Don’t use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. - Page 6 Device USE AND CARE Ronix high-pressure grease injector uses compressed air as drive, the pump creates the high-pressure by pressing the grease, and the oil injected by the high pressure. The grease injector is becoming an essential equipment due to the need for lubrication industrialization.
-
Page 7: Operation Theory
NLGI Grade NLGI Grade Fluid 445-475 400-430 355-385 310-340 265-295 220-250 175-205 130-160 Very Hard 85-115 Machine noise at work is around 90Db. APPLICATIONS - grease inject called pressure ratio The grease injector pump is combined with an upper air pump and lower plunger piston pump for compressing grease. -
Page 8: Troubleshot
replace working position When grease pump replace working position through horizontal short distance, it would depend upon the two wheels to carry on the migration; When grease pump replace working position through long distance, first the grease should be poured out of the container. The grease should transport alone.
