Summary of Contents for NEFF T26DS59N0A
- Page 1 Built-in gas hob [en] User manual and installation in- structions T26DS59N0A...

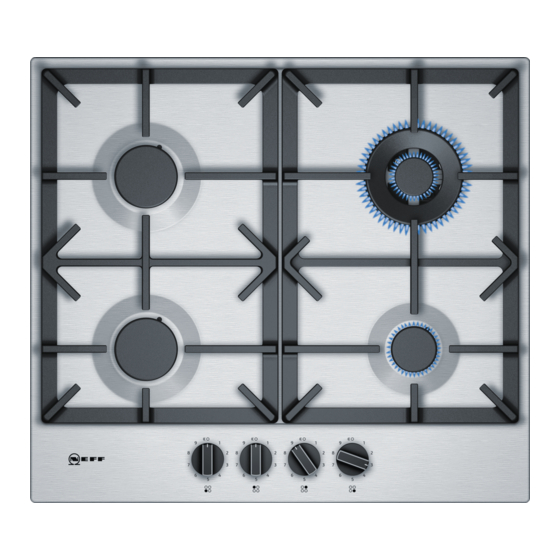

- Page 2 T26DS59N0A Component Pan support Control knobs Economy burner with an output of up to 1,00 kW Standard-output burner with an output of up to 1,75 kW Mini-wok multi-crown burner with an output of up to 3,50 kW The images shown in these instructions are for guid-...
- Page 3 Safety en Futher information and explanations are available online: Table of contents 1.2 Intended use The appliance can only be used safely if it is INFORMATION FOR USE correctly installed according to the safety in- structions. The installer is responsible for en- Safety .............. 3 suring that the appliance works perfectly at its 1.4 Safe installation .......... 4...
- Page 4 en Safety 1.4 Safe installation 1.5 Safe use Follow these safety instructions when in- WARNING ‒ Risk of explosion! stalling the appliance. Escaping gas may cause an explosion. WHAT ¡ Read the installation instructions carefully. TO DO IF YOU SMELL GAS OR IF THERE → "Installation instructions", Page 6 ARE FAULTS IN THE GAS INSTALLATION ¡...
- Page 5 Safety en Escaping gas may ignite. WARNING ‒ Risk of poisoning! ▶ If the burner does not ignite after Using the gas cooking appliance leads to a 10 seconds, turn the control knob to the build-up of heat, moisture and combustion "Off" position and open the door or window products in the room where the appliance is in the room.
-
Page 6: Installation Instructions
en Installation instructions An ingress of moisture can cause an electric Cookware that is not the right size, or that is shock. damaged or incorrectly positioned may cause ▶ Do not use steam- or high-pressure clean- serious injuries. ers to clean the appliance. ▶... - Page 7 Installation instructions en ¡ Seal the cut surfaces of wooden work surfaces with ¡ Height of the pan support above the worktop sur- a special glue seal to protect them from moisture. face: up to 60 mm. ¡ Any adjoining vertical wall surface situated within 200 mm from the edge of any cooktop burner must be a suitable non-combustible material for the entire length of the cooktop, in accordance with clause...
-
Page 8: Positioning The Appliance
en Installation instructions Turn the cooktop around and insert it into the re- 2.5 Positioning the appliance cess. Insert the cooktop in the front of the recess. Note: Do not use silicone to bond the appliance to the worktop. Position the cooktop with the upper side facing down on a flat, stable surface. -
Page 9: Gas Connection
Installation instructions en Wiring diagram Gas connection R 1/2 Observe the wiring diagram. Fit regulator (N. G.) or a test point (Universal LPG) ▶ directly to the R 1/2 connection. – Direction of gas flow is indicated on the rear of the regulator. –... - Page 10 en Installation instructions ¡ Check all connections for gas leaks with soap and With the tip of the screwdriver, push down on the water. DO NOT use a naked flame for detecting flexible rubber holder to access the bypass screw. leaks. ¡...
- Page 11 Preventing material damage en Replace the nozzles using the appropriate wrench Reinstalling the appliance and tighten them carefully to guarantee the seal. Install the appliance components in reverse order. ▶ Checking if equipment is working Check that turning the rotary knob between the pos- ition for maximum power and the position for min- imum power does not cause the burner to go out or result in backfire.
-
Page 12: Familiarising Yourself With Your Appliance
en Environmental protection and saving energy 4 Environmental protection and saving energy 4.1 Saving energy Use a glass lid. ¡ You can see into the pan through a glass lid If you follow these instructions, your appliance will use without having to lift it. less energy. -
Page 13: Basic Operation
Accessories vary from one appliance to another. When purchasing accessories, always quote the exact product number (E no.) of your appliance. → Page 17... - Page 14 en Cookware Hold a lighter or a flame (lighter, match, etc.) 7.2 Safety system against the burner. The safety system (thermocouple) interrupts the flow of gas if the burners accidentally go out. To ignite the 7.4 Switching off a burner burner, you must activate the system that enables the gas flow.
-
Page 15: Cleaning And Servicing
Cleaning and servicing en ¡ To reduce the cooking time: Power Preparing meals – Use a pressure cooker to cook creams and level pulses. If you are using a pressure cooker, follow ¡ Continuing the cooking process: Pasta, the manufacturer's instructions. soups, creams, paella, pulses, rice pud- –... -
Page 16: Troubleshooting
en Troubleshooting Carefully clean the area around the rubber pads. If 10.5 Multi-crown burner and stainless steel the rubber pads come loose, the pan support may surfaces scratch the cooktop. High temperatures may lead to the multi-crown burner Completely dry the appliance. If there are water and the stainless steel surfaces becoming discoloured. -
Page 17: Customer Service
Service en Fault Cause and troubleshooting The gas does not ap- The gas supply has been shut off by the intermediate valves. pear to be flowing Open the intermediate valves. ▶ normally or there is The gas cylinder is empty. no gas being pro- Replace the gas cylinder. - Page 20 *8001262325* 8001262325 BSH Hausgeräte GmbH Carl-Wery-Straße 34 021201 81739 München, GERMANY...
