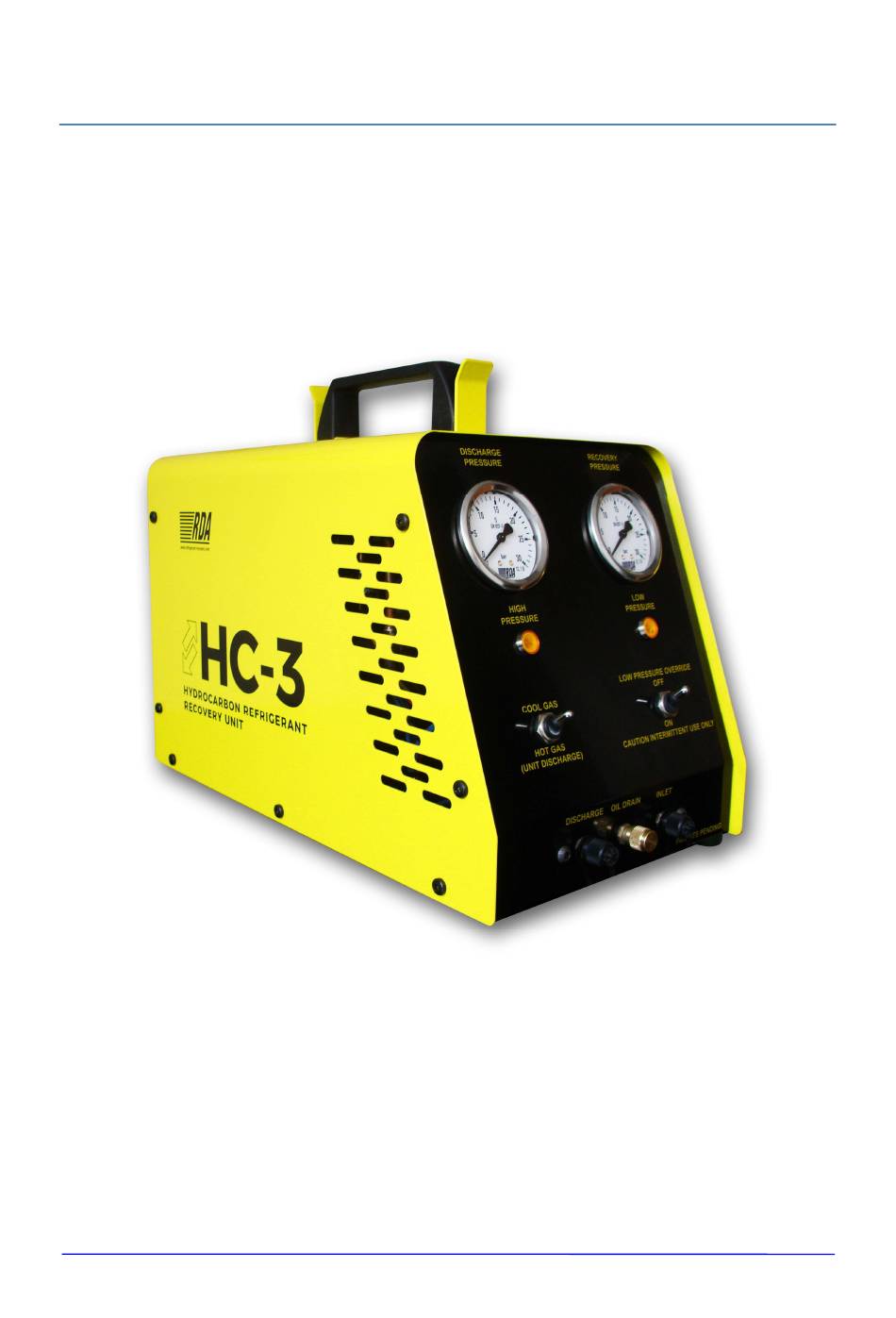

- Page 1 Operation Manual HC-3 Hydrocarbon Refrigerant Recovery Unit © 2020 RDA Environmental Engineering Ltd HC-3 Hydrocarbon Refrigerant Recovery Unit Operation Manual Issue 2 UK Version 2020...
-
Page 2: Table Of Contents
Unit will not start Recovery slows down High Pressure trip CHAPTER 5 APPENDICES Piping and Instrumentation Diagram Wiring Schematic Spare Parts List © 2020 RDA Environmental Engineering Ltd HC-3 Hydrocarbon Refrigerant Recovery Unit Operation Manual Issue 2 UK Version 2020... -
Page 3: Introduction And Overview
CHAPTER 1 INTRODUCTION & OVERVIEW The HC-3 Refrigerant Recovery Units are designed as compact, easy to use service tools for use in dry locations. The units will remove refrigerants in liquid or vapour state from the plant direct to a suitable recovery cylinder. -
Page 4: Health And Safety
By products of combustion if vapour contacts exposed flame or heat source. This unit should only be operated in a well-ventilated area © 2020 RDA Environmental Engineering Ltd HC-3 Hydrocarbon Refrigerant Recovery Unit Operation Manual Issue 2 UK Version 2020... - Page 5 Deliberate release of the Refrigerant Charge to atmosphere is an offence and threatens the Environment. Recovered Refrigerant is classed as Hazardous Waste. © 2020 RDA Environmental Engineering Ltd HC-3 Hydrocarbon Refrigerant Recovery Unit Operation Manual Issue 2 UK Version 2020...
-
Page 6: Component Location And Identification
Vent Slots Pressure High Pressure Indicator Indicator Low Pressure Cool/Hot Override Gas (Self Switch Discharge Switch) Inlet Connection Discharge Connection Oil Out Connection © 2020 RDA Environmental Engineering Ltd HC-3 Hydrocarbon Refrigerant Recovery Unit Operation Manual Issue 2 UK Version 2020... - Page 7 Rear View Equipment Nameplate Condenser Hard Wired Mains Lead Voltage Label Electrical Test Label Ventilation Rubber Feet © 2020 RDA Environmental Engineering Ltd HC-3 Hydrocarbon Refrigerant Recovery Unit Operation Manual Issue 2 UK Version 2020...
- Page 8 CABLE WINDER – Positioned on the handle enables stowage for the mains lead. VENT SLOTS - Situated either side at the front of the unit to enable a ventilating airflow distribution through the unit. © 2020 RDA Environmental Engineering Ltd HC-3 Hydrocarbon Refrigerant Recovery Unit Operation Manual Issue 2 UK Version 2020...
- Page 9 ELECTRICAL TEST LABEL- Gives date of portable appliance electrical safety test and when next test due. VOLTAGE LABEL- Identifies the electrical supply for the unit. © 2020 RDA Environmental Engineering Ltd HC-3 Hydrocarbon Refrigerant Recovery Unit Operation Manual Issue 2 UK Version 2020...
-
Page 10: Operation
Switch the Unit ON at the mains socket. The unit will start to recover refrigerant. You will hear the HC-3 click as it recovers refrigerant. When the entire liquid refrigerant has been recovered the clicking will stop and the pressure on the unit gauge will begin to fall. When the inlet pressure reaches 0 bar the unit compressor will automatically stop. -
Page 11: Refrigerant Recovery Push-Pull Setup
At the same time the unit will discharge into the plant which will raise the pressure. The pressure difference between the plant and the cylinder will result in refrigerant transfer. You will hear the HC-3 click as it recovers refrigerant. -
Page 12: Hints And Tips
Avoid the use of extension cables if possible as this will lower the voltage at the unit and reduce the performance of the unit and can cause overheating. Always transport the unit in an upright position. © 2020 RDA Environmental Engineering Ltd HC-3 Hydrocarbon Refrigerant Recovery Unit Operation Manual Issue 2 UK Version 2020... - Page 13 Use a separate recovery cylinder dedicated for each type of refrigerant and have an extra cylinder for unknown refrigerants and refrigerant recovered from compressor burn-outs. © 2020 RDA Environmental Engineering Ltd HC-3 Hydrocarbon Refrigerant Recovery Unit Operation Manual Issue 2 UK Version 2020...
-
Page 14: Maintenance
See page 6 diagram for oil out connection. Dispose of waste oil safely. © 2020 RDA Environmental Engineering Ltd HC-3 Hydrocarbon Refrigerant Recovery Unit Operation Manual Issue 2 UK Version 2020... -
Page 15: Troubleshooting
Cause Solution Check hose valves and cylinder valve and check hose Valve on discharge line closed gaskets are not worn or deformed © 2020 RDA Environmental Engineering Ltd HC-3 Hydrocarbon Refrigerant Recovery Unit Operation Manual Issue 2 UK Version 2020... -
Page 16: Appendices
CHAPTER 5 APPENDICES Piping and Instrumentation. Electrical Circuit Drawings Spare Parts list © 2020 RDA Environmental Engineering Ltd HC-3 Hydrocarbon Refrigerant Recovery Unit Operation Manual Issue 2 UK Version 2020... -
Page 17: Piping And Instrumentation Diagram
Piping and Instrumentation Diagram © 2020 RDA Environmental Engineering Ltd HC-3 Hydrocarbon Refrigerant Recovery Unit Operation Manual Issue 2 UK Version 2020... -
Page 18: Wiring Schematic
Electrical Circuit Schematic © 2020 RDA Environmental Engineering Ltd HC-3 Hydrocarbon Refrigerant Recovery Unit Operation Manual Issue 2 UK Version 2020... -
Page 19: Spare Parts List
RDA Environmental Engineering Ltd Riverway Industrial Estate Newport Isle of Wight PO30 5UX United Kingdom Telephone: +44 (0) 1983 821189 Email: sales@rda-eng.com Visit: www.rda-eng.com © 2020 RDA Environmental Engineering Ltd HC-3 Hydrocarbon Refrigerant Recovery Unit Operation Manual Issue 2 UK Version 2020...
