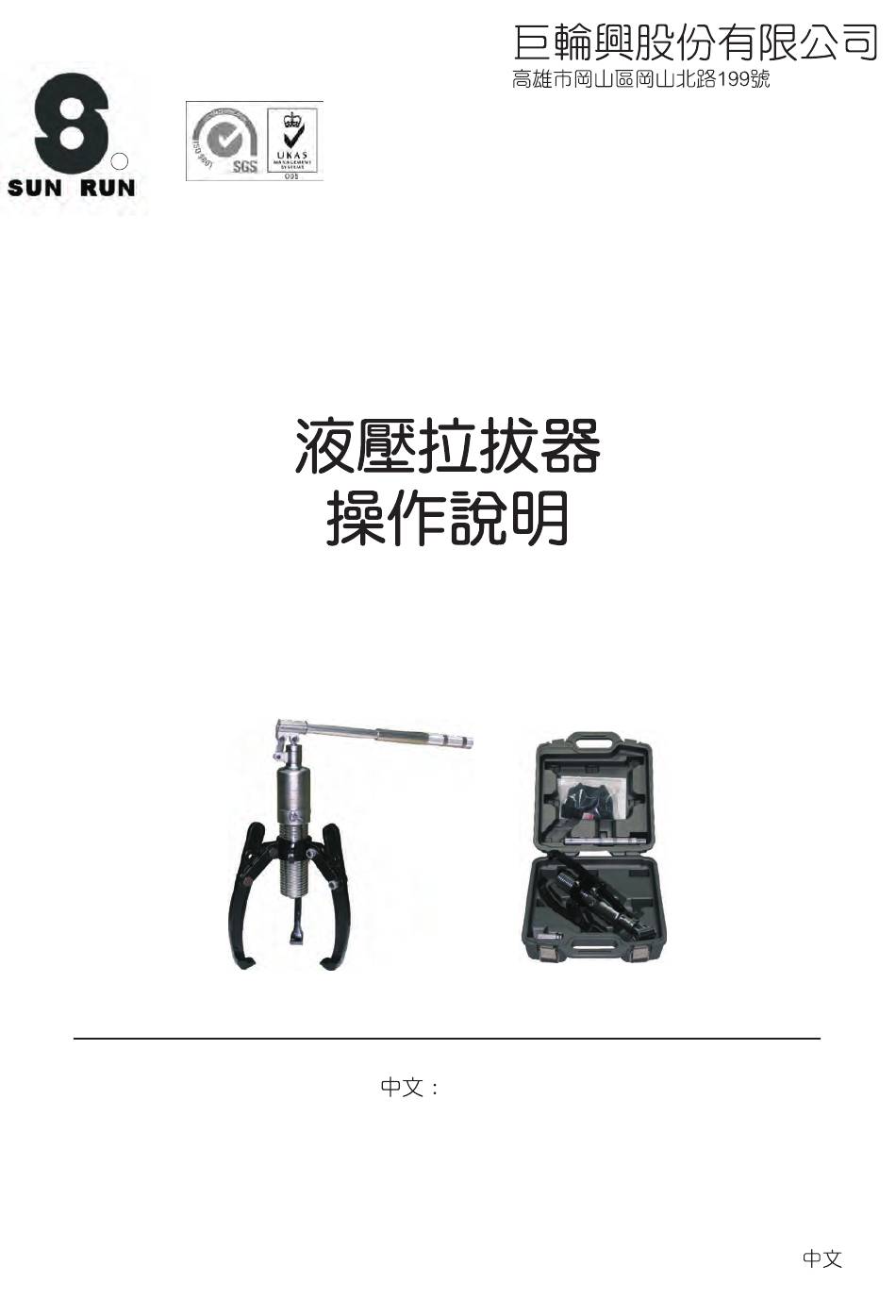

- Page 1 CHU LUN SING CO.,LTD No.199, Gangshan N. Rd., Gangshan Dist., Kaohsiung City 82059, Taiwan http://www.sunrun.com.tw E-mail:sun.run@msa.hinet.net TEL:886-7-6210505 FAX:886-7-6217575 C1~C7 English Ver.24...
- Page 2 Page:C1...
- Page 3 Eff. Area Max. Max. Jaw Tip Weight (mm) (mm) Reach Spread ton (kN) A(mm) (cm ) (mm) (mm) (kg) SPM-600 6 (563) 8.04 SPM-800 8 (793) 11.34 SPM-1200 12 (1011) 14.45 10.5 SPM-2000 20 (1978) 28.26 24.5 SPM-3000 30 (2940) 42.00...
- Page 4 SPM-__10 SPM-__30 SPM-__00 TYP. SPM-__10 TYP. SPM-__30 Series Model Number Cylinder Bearing Assembly Press Assembly Jaws Assembly Model Number Model Number Model Number Model Number SPM-600 SPM-A-600 SPR6-A-A2 SPM-800 SPM-A-800 SPR8-A-A2 SPM-1200 SPM-A-1200 SPR12-A-A2 SPM-2000 SPM-A-2000 SPR20-A-A2 SPM-3000 SPM-A-3000 SPR30-A-A2...
- Page 5 Trigger Page:C4...
- Page 6 Puller piston Jaws Removable cone Puller strap Part to be removed Jaw adjustment Jaws fully engaged and secure Page:C5...
- Page 7 SPM-600 Page:C6...
- Page 8 Page:C7...
- Page 9 CHU LUN SING CO.,LTD No.199, Gangshan N. Rd., Gangshan Dist., Kaohsiung City 82059, Taiwan http://www.sunrun.com.tw E-mail:sun.run@msa.hinet.net TEL:886-7-6210505 FAX:886-7-6217575 OPERATING INSTRUCTIONS HYDRAULIC PULLERS English E1~E7 English Ver.24...
-
Page 10: Safety Precautions
WARNING: USE ONLY RIGID PIECES TO damaged parts with genuine SUN RUN HOLD LOAD. Carefully select steel or wood parts. SUN RUN parts are designed to fit blocks that are capable of supporting the properly and withstand rated loads. load. Never use a hydraulic cylinder as a... - Page 11 Eff. Area Max. Max. Jaw Tip Weight (mm) (mm) Reach Spread ton (kN) A(mm) (cm ) (mm) (mm) (kg) SPM-600 6 (563) 8.04 SPM-800 8 (793) 11.34 SPM-1200 12 (1011) 14.45 10.5 SPM-2000 20 (1978) 28.26 24.5 SPM-3000 30 (2940) 42.00...
- Page 12 SPM-__10 SPM-__30 SPM-__00 TYP. SPM-__10 TYP. SPM-__30 Series Model Number Cylinder Bearing Assembly Press Assembly Jaws Assembly Model Number Model Number Model Number Model Number SPM-600 SPM-A-600 SPR6-A-A2 SPM-800 SPM-A-800 SPR8-A-A2 SPM-1200 SPM-A-1200 SPR12-A-A2 SPM-2000 SPM-A-2000 SPR20-A-A2 SPM-3000 SPM-A-3000 SPR30-A-A2...
- Page 13 Otherwise, before working should check the all jaws fully engaged and secure. 3.2 Wrap the work in a SUN RUN protective blanket before applying pressure to provide protection from injury caused by flying parts should a part ever break. (Fig. 3.2) 3.3 Always apply force gradually.
- Page 14 Instructions for: Models SPM series 3.6 Puller setup 3.6.1 Begin positioning the puller and puller jaws around the part to be pulled, removing most of the slack by threading the adjusting locknut further onto the puller body or adjusting the puller straps on the jaws.
- Page 15 3.6.3 Hold the puller with one hand and pump the handle with your other hand, advancing the piston until the part is removed. As the plunger appear red warning line, please stop pressing immediately. To prevent SPM-600 damage. Page:E6 CHU LUN SING CO.,LTD...
- Page 16 Instructions for: Models SPM series Page:E7 CHU LUN SING CO.,LTD...
