Fully Automatic Microprocessor Controlled
Battery Charger for 12-Volt Lead Acid and LiFePo
This battery charger complies with Australian
safety standard AS/NZS 3350.2.29:2001
CAUTION:
Read all Safety Rules carefully, and folllow all Operating Instructions when using this product.
Do not recharge non-rechargeable batteries and charge 12V rechargeable batteries only.
Monitor battery during fi rst hour of operation and check battery during charging
process. If smoke or other signs of excessive heat are detected or if battery emits
a rotten egg smell, your battery is may be critically damaged and charging should
be terminated. Immediately vent the room by opening windows, unplug the battery
charger, allow the charger and the battery to cool down and then properly dispose
of the battery. Do not attempt to charge the damaged battery! Failure to adhere to
this warning may cause serious injury or property damage.
Owner's Manual
WARNING

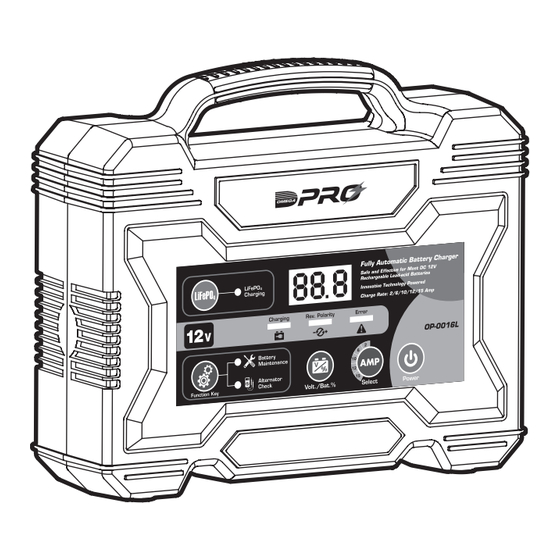

Model No.: OP-0016L
Batteries
4
Printed in China
Advertisement
Table of Contents
Summary of Contents for Omega Pro OP-0016L
- Page 1 Model No.: OP-0016L Fully Automatic Microprocessor Controlled Battery Charger for 12-Volt Lead Acid and LiFePo Batteries Owner’s Manual This battery charger complies with Australian safety standard AS/NZS 3350.2.29:2001 CAUTION: Read all Safety Rules carefully, and folllow all Operating Instructions when using this product.
-
Page 2: Important Safety
SAVE THESE INSTRUCTIONS PRODUCT DESCRIPTION SAVE THESE INSTRUCTIONS. For your safety, read, understand, and follow the Automatic battery charger is designed to information provided with and on this battery charge 12 Volt, rechargeable lead acid charger. The owner and operator of this batteries with rated Amp Hour (Ah) capacity equipment shall have an understanding of of no less than 8Ah. - Page 3 OP-0016L. 7. Do not operate charger if it has received 2. NEVER expose this device to rain, snow, a sharp blow, been dropped, or otherwise fog, or high humidity.
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 11. PERSONAL PRECAUTIONS h) Use charger for charging a LEAD- ACID and LiFePO4(capacity no less a) Someone should be in the range of your than 15Ah) battery only. Model OP- voice or close enough to come to your 0016L is not intended to supply power aid when you work near a lead-acid to a low voltage electrical system and... -
Page 5: Before Use
BEFORE USE A. PREPARING TO CHARGE C. DC CONNECTION PRECAUTIONS 1. If it is necessary to remove battery 1. Connect and disconnect dc output from vehicle to charge, always remove clamps only after setting any charger grounded terminal from battery fi rst. switches to off position and removing AC cord from electrical outlet. -
Page 6: How To Use
HOW TO USE A. Use of the Hook-up for Negative Ground: 6. For positive-grounded vehicle, connect F O L L O W T H E S E S T E P S W H E N NEGATIVE (BLACK) clamp from BATTERY IS INSTALLED IN VEHICLE. -
Page 7: Maintenance
HOW TO USE 3. Position youself as far away from the Fig.2A battery as possible - then connect NEGATIVE (BLACK) charger clamp. 4. Do not face battery when making fi nal connection. 5. When disconnecting charger, always do so in reverse sequence of connecting procedure and break fi... -
Page 8: Operation
OPERATION POWER key – the equipment manufacturer’s owners manual or battery label. When AC power cord is plugged into the AC outlet, the digital indicator should display the term ‘OFF’. Volt./Bat.% key – Press and release the ‘POWER’ key Press once and the indicator will display to cycle the system to display the term a 3 character voltage measurement;... - Page 9 OPERATION Function Key – If a voltage figure is displayed, this Maintenance Cycle Mode - Pressing means the alternator is likely good. If Function Key once will result in a charge cycle called a ‘Maintenance the display shows ‘CHE’, it is likely that Cycle’.
- Page 10 OPERATION LiFePO Charging Function Key – 3. Do not charge the battery while waiting for the engine to warm. This LiFePO Battery Charging Function is will invalidate any alternator check. designed to charge 12 Volt, rechargeable The digital display should show LiFePO batteries with rated Amp Hour ‘OFF’...
- Page 11 ERROR CODES AND STATUS CODES ERROR CODE: During operation if anything wrong with battery or charger, the following codes will be displayed for quick troubleshooting. System Error, Contact Technical Support. Reverse polarity connection, battery voltage too low or bad connection. Confi rm polarity and hook up accordingly, check and confi...
-
Page 12: Troubleshooting
Power to the display is provided by unplugged battery connection press any key SPECIFICATION 15A charger model : OP-0016L 15A max output for 12V type battery Input voltage : 200 to 240AC/50~60±3Hz Fuse : 5A/250V Output voltage range : 12V...
